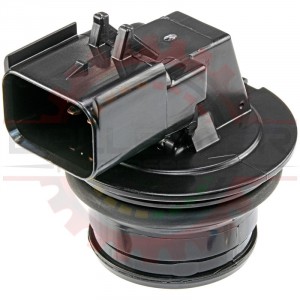

6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly Part # CONN-100949

6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly
Pricing
1 + $18.99
10 + $18.49
25 + $17.99
50 + $17.49
100 + $16.99
Information
Bmotorsports Part # CONN-100949
Availability In Stock
Shipping Weight 0.1 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly. Connector Assembly. This connector fitting comes with the single main O-ring MOTR-100537 pictured ONLY on the connector. No other o-rings are included.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
6 Way Fuel Connector Plug CONN-1009586 Way Fuel Pump Connector Plug for Bulkhead Connection
6 Way In-Tank Fuel Connector Plug, Seals Removed CONN-1012216 Way In-Tank Fuel Pump Connector for Bulkhead Connection
Female 2.8mm Terminal 16-14AWG CONN-100463Holley EFI 571-124 Female 2.8mm Terminal 16-14AWG
Cavity Plug CONN-56158GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
Flex Fuel O-Ring MOTR-100537Flex Fuel O-Ring for Fuel Bulkhead passthrough
Bulkhead Snap Ring HDWR-21578Internal Snap Ring for Fuel Bulkhead passthrough
Mating Parts
6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly CONN-1009496 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly
Base Bulkhead Connector ONLY (without o-ring) CONN-1009576 Way Fuel Tank Bulkhead Passthrough Connector Receptacle
Male 2.8mm Terminal 16-14AWG CONN-100462Male terminal for 3-way Headlight receptacle connector
Bolt Type Fuel Bulkhead Kit CONN-76071Bolt-in Type Fuel Bulkhead Kit
Weld Type Fuel Bulkhead Kit CONN-76072Weld-in Type Fuel Bulkhead Kit
Fuel Bulkhead Connector Kit Only CONN-76201Fuel Bulkhead Connector Kit Only
Bolt Type Fuel Bulkhead Kit with Pigtails CONN-86071
Weld Type Fuel Bulkhead Kit with Pigtails CONN-86072

Specifications

Parameter Value
Number of Ways6
GenderReceptacle/Female
Terminal Size2.8mm
Terminal Size (Secondary)2.8mm
Terminal TypeFlat
Terminal Type (Secondary)Flat
Min. Wire Gauge10
Max. Wire Gauge16



This product contains the following items:
6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle» 1 x 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle
Part # CONN-100957
Flex Fuel O-Ring for Fuel Bulkhead passthrough» 1 x Flex Fuel O-Ring for Fuel Bulkhead passthrough
Part # MOTR-100537
