    Bolt-in Type Fuel Bulkhead Kit Part # CONN-76071

    Bolt-in Type Fuel Bulkhead Kit Bolt-in Type Fuel Bulkhead Kit Bolt-in Type Fuel Bulkhead Kit Bolt-in Type Fuel Bulkhead Kit Bolt-in Type Fuel Bulkhead Kit
    Pricing
    1 + $149.99
    Information
    Bmotorsports Part # CONN-76071
    Availability In Stock
    Shipping Weight 1.1 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    Bolt-in Type Fuel Bulkhead Kit. Terminals and seals ARE included.

    This kit allows you to pass through six signal wires into fuel tanks to power single, or dual pumps and a level sender, through our specified bolt-in style fitting. Perfect kit for those who are uncomfortable with, don't have the skills or tools for welding, when welding just isn't possible on the current vessel or setup you currently have, or you determine the welding fabrication cost and effort falls outside of this bolt-in type. It's super easy to assemble!

    Keep in mind the bolt pattern is directional so set it up where you want to run the connector to face. The mounting bolts and holes are not equally spaced as they would interfere with the connector bulkhead.

    Use our included template to drill out the correct size hole and mounting bolt holes. The backing plates pass into the vessel through this hole for the bolts to thread into (don't drop them!). A large diameter custom o-ring formulated for use with gasoline, ethanol, and blends seals the tophat to the outside of the tank, encompassing the bolt holes. Nylon washers seal the bolts at the top. The rest of the kit is exactly like the weld-in kit with the bulkhead passthrough and o-ring for petrol/ethanol, connectors and terminals. Super lube included to make sure the o-rings seat easily in their machined grooves

    Kit contents:

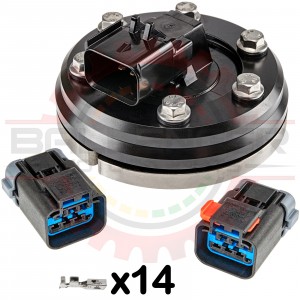

    • 1 x Machined Aluminum fuel bulkhead (MOTR-03956)
    • 2 x Machined Bottom Threaded Plates (MOTR-03955)
    • 6 x M5x30 Flanged Hex Head Bolts (HDWR-16556)
    • 6 x Nylon Plastic Sealing Washers (HDWR-29342)
    • 1 x Flex fuel, Gasoline, and Methanol use O-Ring for Passthrough to Bulkhead (MOTR-100537)
    • 1 x Flex fuel, Gasoline, and Methanol use O-Ring for Bulkhead to Tank (MOTR-100538)
    • 1 x Internal Retaining Ring C-Clip (HDWR-21578)
    • 1 x 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle (CONN-100957)
    • 1 x 6 Way Fuel Pump Connector Plug for Bulkhead Connection (CONN-100958)
    • 1 x 6 Way Fuel Pump Connector Plug for Bulkhead Connection w/o Internal Seal & Clip (CONN-101221)
    • 14 x Female Terminal for 3-way Headlight Plug Connector (CONN-100463)
    • 4 x GM Delphi / Packard Metripack 150.2 Seal Plug for Hand Insertion (CONN-56158)
    • 1 x SuperLube Synthetic Grease Packet (MOTR-03970)
    • 1 x Printed Drill Template


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    6 Way Fuel Connector Plug CONN-1009586 Way Fuel Pump Connector Plug for Bulkhead Connection
    Female 2.8mm Terminal 16-14AWG CONN-100463Holley EFI 571-124 Female 2.8mm Terminal 16-14AWG
    6 Way Fuel Connector Plug, Seals Removed CONN-1012216 Way In-Tank Fuel Pump Connector for Bulkhead Connection
    Cavity Plug CONN-56158GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
    Mating Parts
    6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle CONN-1009496 Way Fuel Tank Bulkhead Passthrough Connector Receptacle Assembly
    Male 2.8mm Terminal 16-14AWG CONN-100462Male terminal for 3-way Headlight receptacle connector
    Bolt Type Fuel Bulkhead Kit CONN-76071Bolt-in Type Fuel Bulkhead Kit
    Weld Type Fuel Bulkhead Kit CONN-76072Weld-in Type Fuel Bulkhead Kit
    Fuel Bulkhead Connector Kit Only CONN-76201Fuel Bulkhead Connector Kit Only
    Bolt Type Fuel Bulkhead Kit with Pigtails CONN-86071
    Weld Type Fuel Bulkhead Kit with Pigtails CONN-86072

    Specifications

    Parameter Value
    Number of Ways6
    Terminal Size2.8mm
    Terminal TypeFlat
    Min. Wire Gauge14
    Max. Wire Gauge16



    This product contains the following items:
    GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)» 4 x GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
    Part # CONN-56158
    Holley EFI 571-124 Female 2.8mm Terminal 16-14AWG» 14 x Holley EFI 571-124 Female 2.8mm Terminal 16-14AWG
    Part # CONN-100463
    6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle» 1 x 6 Way Fuel Tank Bulkhead Passthrough Connector Receptacle
    Part # CONN-100957
    6 Way Fuel Pump Connector Plug for Bulkhead Connection» 1 x 6 Way Fuel Pump Connector Plug for Bulkhead Connection
    Part # CONN-100958
    6 Way In-Tank Fuel Pump Connector for Bulkhead Connection» 1 x 6 Way In-Tank Fuel Pump Connector for Bulkhead Connection
    Part # CONN-101221
    Flex Fuel O-Ring for Fuel Bulkhead passthrough» 1 x Flex Fuel O-Ring for Fuel Bulkhead passthrough
    Part # MOTR-100537
    Internal Snap Ring for Fuel Bulkhead passthrough» 1 x Internal Snap Ring for Fuel Bulkhead passthrough
    Part # HDWR-21578
    1ml Super Lube Synthetic Grease Packet» 1 x 1ml Super Lube Synthetic Grease Packet
    Part # MOTR-03970
    Bolt-In Fuel Bulkhead Fitting» 1 x Bolt-In Fuel Bulkhead Fitting
    Part # MOTR-03956
    Machined Bottom Threaded Plate» 2 x Machined Bottom Threaded Plate
    Part # MOTR-03955
    Flex Fuel O-Ring for Bolt-in Fuel Bulkhead» 1 x Flex Fuel O-Ring for Bolt-in Fuel Bulkhead
    Part # MOTR-100538
    M5x30 Flanged Hex Head Bolt» 6 x M5x30 Flanged Hex Head Bolt
    Part # HDWR-16556
    Nylon Plastic Sealing Washer» 6 x Nylon Plastic Sealing Washer
    Part # HDWR-29342
