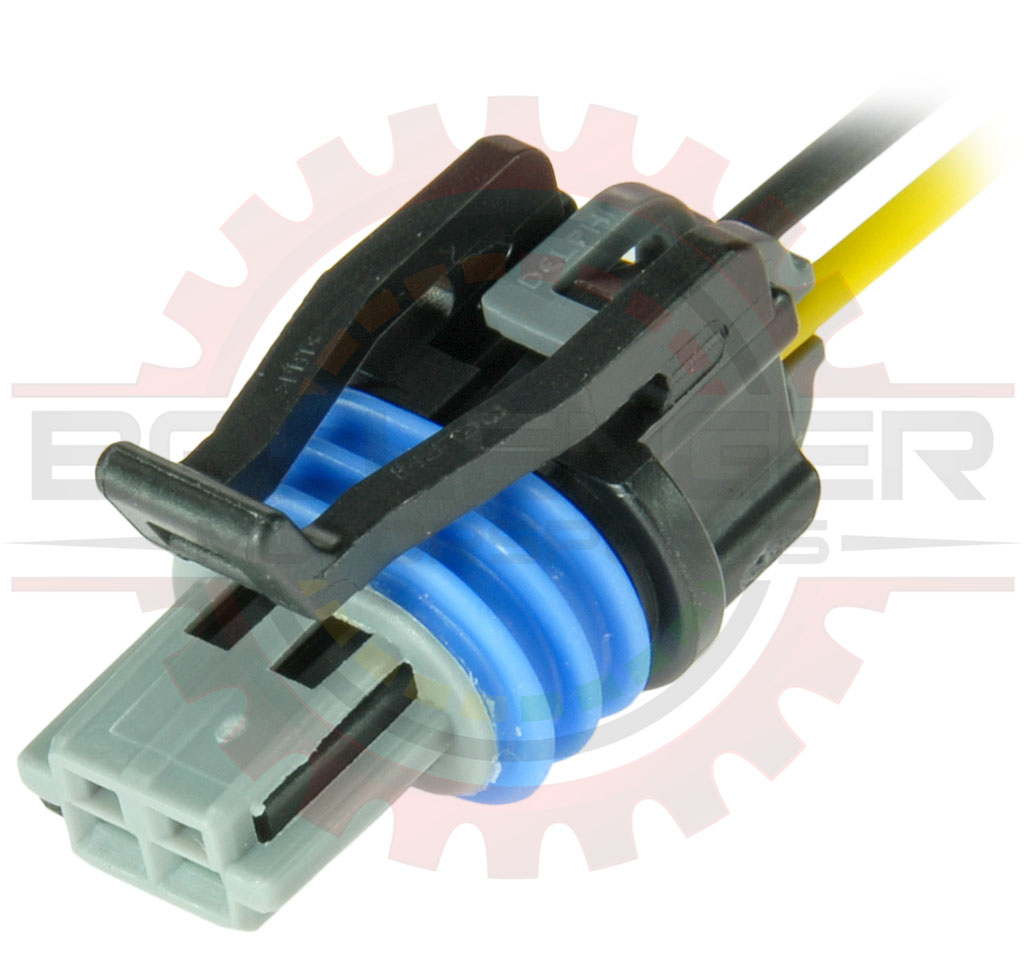

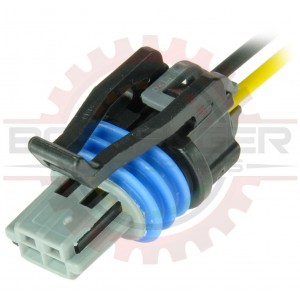

GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT	Part # CONN-85644

Pricing
1 +	$5.99
5 +	$5.75
25 +	$5.49
50 +	$5.25
100 +	$4.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-85644
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT

Associated & Mating Parts

Relationship	Part #	Description
Preferred Connector (Shrouded with rear release):
Connector Only	CONN-51560	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75643	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail	CONN-85643	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Non-preferred Connector (Unshrouded with front release):
Connector Only	CONN-51561	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75644	GM Delphi / Packard - 2-way Un-shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail	CONN-85644	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Obsoleted Connector (still available for sale):
Connector Only	CONN-51555	GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector (connector only)
Terminals	CONN-56155	GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]
Connector Kit	CONN-75555	GM Delphi / Packard - 2 way IAT / MAT / ACT Sensor Connector Kit
Connector Pigtail	CONN-85555	GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector Pigtail # 12102620
Mating Connector
Connector Only	CONN-50564	GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly for IAT
Connector Kit	CONN-75774	GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector Kit for IAT
Connector Pigtail	CONN-85774	GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector Pigtail for IAT
Extensions
IAT / MAT / ACT Wiring Extension	CONN-85584	GM Delphi / Packard - IAT / MAT / ACT Extender Harness
Mating sensors:
Fast Response 3/8 NPT IAT	SNSR-02057	Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 RECOMMENDED
Fast Response M14x1.5 IAT	SNSR-02063	Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor
Fast Response Grommet IAT	SNSR-02060	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor, Black with Keyway Connector
Standard Response Plastic IAT	SNSR-02058	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector

Applications

Cross References:

Compatible with ACDelco Pigtail PT1495 & GM Pigtail Part# 15306430
Compatible with ACDelco Pigtail PT307 & GM Pigtail Part# 12102620
Compatible with ACDelco Pigtail PT1158 & GM Pigtail Part# 15306031

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 18

This product contains the following items:
	» 1 x 20AWG Automotive TXL Wire Black Part # WIRE-00458S
	» 1 x 20AWG Automotive TXL Wire Yellow Part # WIRE-04458S
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 2 x GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated Part # CONN-56468
	» 2 x GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only Part # CONN-56559
	» 1 x TPA for 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly Part # CONN-50558
	» 1 x GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female for IAT Part # CONN-51559
