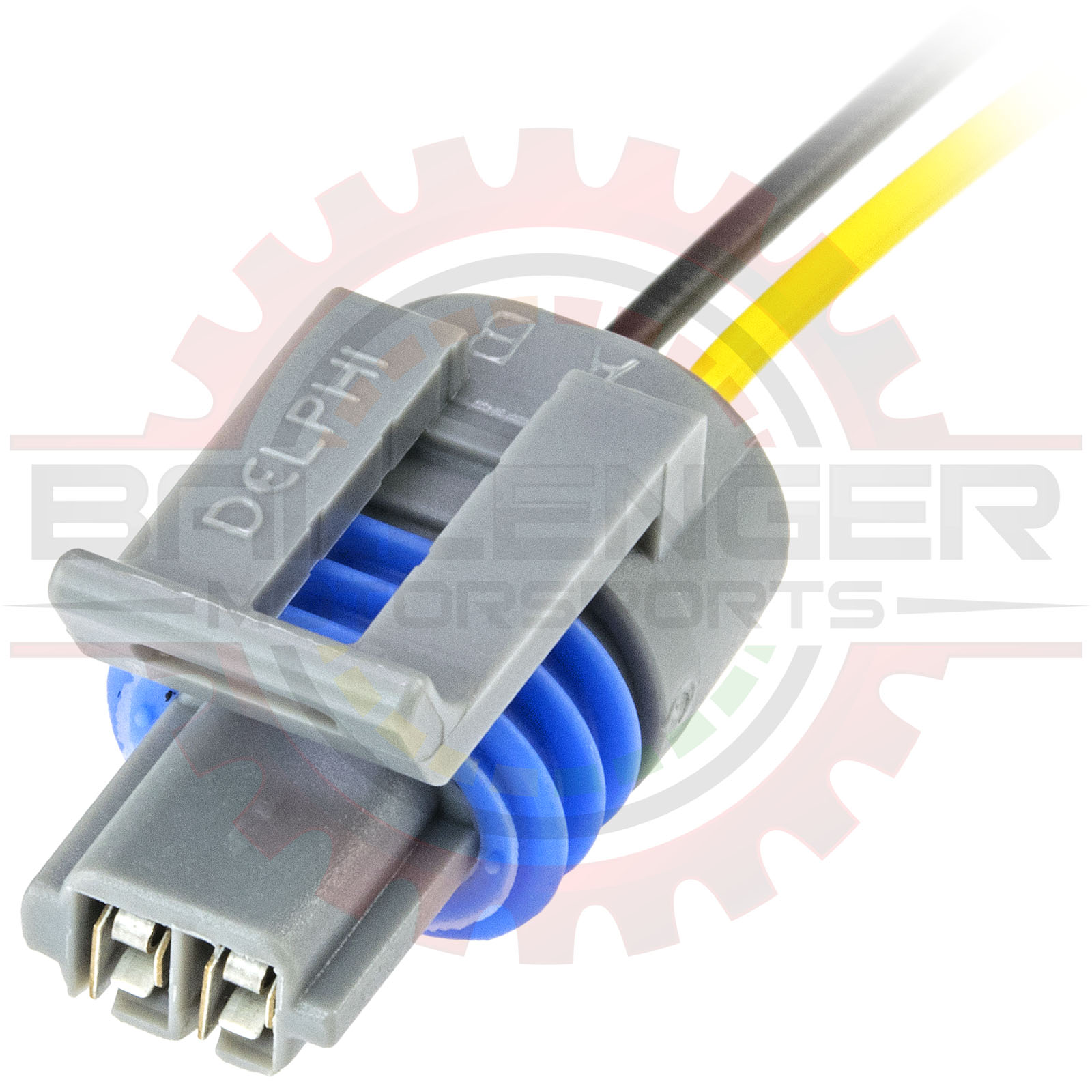

GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector Pigtail # 12102620 Part # CONN-85555

GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector Pigtail # 12102620 GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector Pigtail # 12102620 GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector Pigtail # 12102620
Pricing
1 + $8.49
5 + $7.75
25 + $7.49
50 + $7.25
100 + $6.99
Information
Bmotorsports Part # CONN-85555
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

This connector is obsolete (but still offered for sale). For the less expensive & functionally superior replacement connector, see the Associated & Mating Parts Tab.

Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.


Associated & Mating Parts

Relationship Part # Description
Preferred Connector (Shrouded with rear release):
Connector Only CONN-51560GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75643GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail CONN-85643GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Non-preferred Connector (Unshrouded with front release):
Connector Only CONN-51561GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75644GM Delphi / Packard - 2-way Un-shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail CONN-85644GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Obsoleted Connector (still available for sale):
Connector Only CONN-51555GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector (connector only)
Terminals CONN-56155GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]
Connector Kit CONN-75555GM Delphi / Packard - 2 way IAT / MAT / ACT Sensor Connector Kit
Connector Pigtail CONN-85555GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector Pigtail # 12102620
Mating Connector
Connector Only CONN-50564GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly for IAT
Connector Kit CONN-75774GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector Kit for IAT
Connector Pigtail CONN-85774GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector Pigtail for IAT
Extensions
IAT / MAT / ACT Wiring Extension CONN-85584GM Delphi / Packard - IAT / MAT / ACT Extender Harness
Mating sensors:
Fast Response 3/8 NPT IAT SNSR-02057Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 *RECOMMENDED*
Fast Response M14x1.5 IAT SNSR-02063Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor
Fast Response Grommet IAT SNSR-02060GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor, Black with Keyway Connector
Standard Response Plastic IAT SNSR-02058GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector

Specifications

Parameter Value
Number of Ways2
GenderPlug/Male
Terminal Size1.5mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge18



This product contains the following items:
GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector (connector only)» 1 x GM Delphi / Packard 2 way IAT / MAT / ACT Sensor Connector (connector only)
Part # CONN-51555
GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]» 2 x GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]
Part # CONN-56155
20AWG Automotive TXL Wire Black» 1 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
20AWG Automotive TXL Wire Yellow» 1 x 20AWG Automotive TXL Wire Yellow
Part # WIRE-04458S
Labor $0.25/minute» 10 x Labor $0.25/minute
Part # LABR-00001
