    AEM PDU-8 Eight-Channel Power Distribution Unit Part # SNSR-01502

    AEM PDU-8 Eight-Channel Power Distribution Unit AEM PDU-8 Eight-Channel Power Distribution Unit AEM PDU-8 Eight-Channel Power Distribution Unit AEM PDU-8 Eight-Channel Power Distribution Unit
    Pricing
    1 + $699.30
    Information
    Bmotorsports Part # SNSR-01502
    Availability Special Order
    Shipping Weight 0.7 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Overview

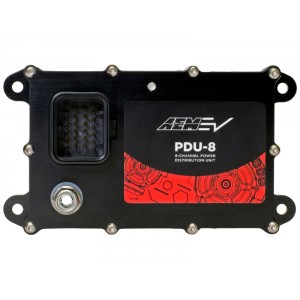

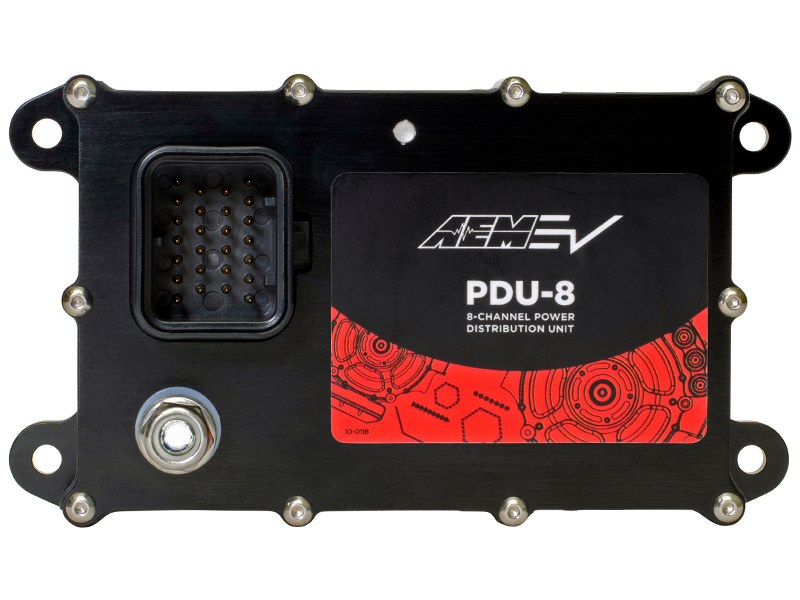

    The AEM EV PDU-8 is a VCU expansion device that gives you the power to program and control various switched devices using our VCUs, like cooling fans, headlights, brake lights, turn signals, windshield wipers, and more on EV street-conversion and motorsports vehicles. Eight PDU-8s can be connected on the CAN bus for a total of 64 available channels. The ability to connect up to eight PDU-8s on the same CAN bus network lets installers mount the individual PDUs closer to the subsystems they are controlling, which simplifies wiring, reduces weight, and increases reliability. Our 8-Channel Power Distribution Unit provides CAN-directed switched power to the various systems on an EV by receiving its commands directly from a Vehicle Control Unit like our VCU200 or VCU300 or other VCU with CAN transmission capability, eliminating the need to create complicated logic programming in the PDU. This makes them easy to configure, easy to troubleshoot and negates the need to have dedicated spares for motorsports electric vehicles since they can be used interchangeably. The PDU-8 interfaces with the VCU200 and VCU300. One PDU-8 may currently be added to an AEM Infinity ICE management system.

    • Control switched functions from a VCU over CAN bus!
    • Four 20A and four 10A high-side 12V outputs for activating/deactivating various switched devices
    • Connect up to eight units for a total of 64 channels
    • Smaller modules allow for multiple units to be deployed nearer the systems they control, simplifying wiring and reducing weight
    • CAN-commanded PDU, no logic programming required for PDU operation
    • PDU ID is defined by wiring at the connector, allowing units to be fully interchangeable
    • Small size and lightweight (103x67x33mm/4.05x2.70x1.5”, 190g/6.7oz/0.42lbs.)
    • Individual channel current draw and fault states are reported back to the VCU
    • Fully-sealed, waterproof billet-aluminum enclosure
    • Diagnostics and fault detection including CAN message timeouts, thermal limits, contactor, and inverter enable cross-checks


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    AEM VCU300 30-8100 SNSR-01500AEM VCU300 Programmable EV Control Unit
    AEM VCU200 30-8000 SNSR-01501AEM VCU200 Programmable EV Control Unit
    AEM PDU-8 30-8300 SNSR-01502AEM PDU-8 Eight-Channel Power Distribution Unit
    AEM 8 Button PDU EV Keypad 30-8000 SNSR-01503AEM EV 8-Button CAN Keypad (PN 30-8400)
    Battery Management System Master Unit 30-8401M SNSR-01504AEM Battery Management System Master Unit 80-8401M
    Battery Management System Satellite Unit 30-8401S SNSR-01505AEM Battery Management System Satellite Unit 30-8401S
    Tesla LDU Driver SNSR-01506AEM Tesla LDU Base Drive Inverter Control Board, incl. Adapter Harness
    VCU 300 Plug & Pin Kit SNSR-01507
    VCU 200 Plug & pin kit SNSR-01508
    PDU-8 Plug & Pin kit SNSR-01509
    Mating Parts
    20awg Terminals CONN-100597AMP Superseal 1.0 Series Female Terminal 0.5 mm2 (20 AWG)
    16-18awg Terminals CONN-100596AMP Superseal 1.0 Series Female Terminal 0.75 - 1.25 mm2 (18 - 16 AWG)
    Solid Contact, 24-16awg CONN-101516Race Spec™ SS 1.0 Solid Contact for 16-24AWG
    alternate 16awg terminals CONN-1008242003-2010 6.0 Powerstroke Diesel Fuel Injector Control Module Connector Female Terminal for 14-16AWG
