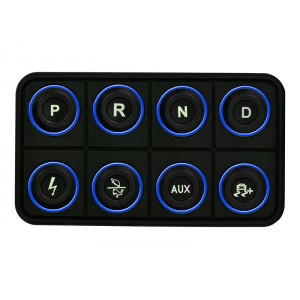

    AEM EV 8-Button CAN Keypad (PN 30-8400) Part # SNSR-01503

    AEM EV 8-Button CAN Keypad (PN 30-8400) AEM EV 8-Button CAN Keypad (PN 30-8400)
    Pricing
    1 + $430.40
    Information
    Bmotorsports Part # SNSR-01503
    Availability Special Order
    Shipping Weight 1 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Overview

    The AEM EV 8-Button CAN Keypad (PN 30-8400) puts control at your fingertips in EV street-conversion and motorsports vehicles. It is a VCU expansion device that allows you to control vehicle functions by programming them in the VCU software, and then send these commands via CAN bus to a VCU200 or VCU300 Vehicle Control Unit. Functions like Ignition, Park, Reverse, Neutral and Drive, as well as two map switching functions like performance level and traction control, are all controlled from a central location through a sleek, vibrant interface.

    The 8-Button CAN keypad has nine backlit colors that are all fully programmable using AEMcal software. The LEDs deliver a lively opening ceremony when powering up, which is user-programmable. Users can select backlighting for each individual button, or group of buttons, and have the backlighting for whatever mode is selected change color so you always know what drive mode, power mode, or traction mode you are in!

    More than just aesthetics though, the backlighting is used to alert you to any potential issues and whether everything is functioning properly to keep you safe. For instance, when the Ignition switch is pressed three color states verify that everything is working correctly. When the contactors are open there is no backlight, and when the pre-charge process begins the backlight turns yellow. Once the pre-charge process is complete and the contactors close the backlight turns green to notify you that the vehicle is safe to operate, and if a fault is detected the backlight turns red.

    The 8-Button CAN keypad has a ruggedized rubber enclosure with two mounting studs on the back, and in addition to color-changing backlighting, positive-feel buttons provide a tactile response that takes the guesswork out of whether or not you pressed the button hard enough.

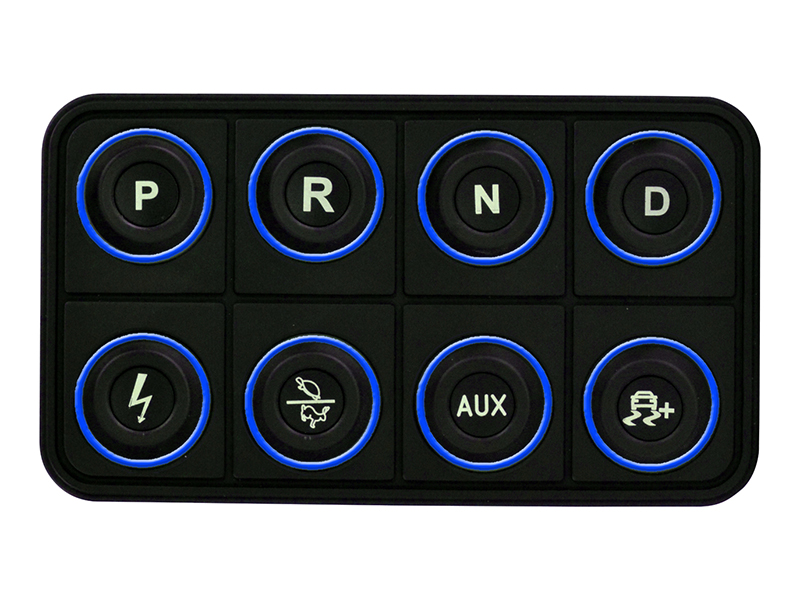

    The VCU200 supports direct-drive only, and the button functions are fixed. The top row of buttons control P, R, N, and D, and the bottom row buttons control ignition, performance level, auxiliary control for a dedicated 20 Amp PDU output, and traction control slip target (coming soon).

    The same button functions are used on direct-drive applications when using the VCU300, however, AEM EV includes a different fixed configuration when using the VCU300 on indirect drive vehicles.

    We know that space limitations for mounting –and user preferences—are important considerations, so we made sure that the 8-Button CAN Keypad can be mounted either horizontally or vertically. The buttons can be easily taken off and clocked 90-degrees or even 180-degrees for users with right-hand drive vehicles.

    The 8 Button CAN Keypad interfaces ONLY with the VCU200 and VCU300. It does not work with AEM Infinity or Series2 ICE management systems.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    AEM VCU300 30-8100 SNSR-01500AEM VCU300 Programmable EV Control Unit
    AEM VCU200 30-8000 SNSR-01501AEM VCU200 Programmable EV Control Unit
    AEM PDU-8 30-8300 SNSR-01502AEM PDU-8 Eight-Channel Power Distribution Unit
    AEM 8 Button PDU EV Keypad 30-8000 SNSR-01503AEM EV 8-Button CAN Keypad (PN 30-8400)
    Battery Management System Master Unit 30-8401M SNSR-01504AEM Battery Management System Master Unit 80-8401M
    Battery Management System Satellite Unit 30-8401S SNSR-01505AEM Battery Management System Satellite Unit 30-8401S
    Tesla LDU Driver SNSR-01506AEM Tesla LDU Base Drive Inverter Control Board, incl. Adapter Harness
    VCU 300 Plug & Pin Kit SNSR-01507
    VCU 200 Plug & pin kit SNSR-01508
    PDU-8 Plug & Pin kit SNSR-01509
    Mating Parts
    Small Terminals CONN-
    Large Terminals CONN-
