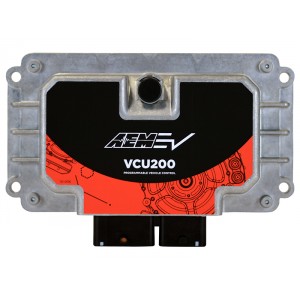

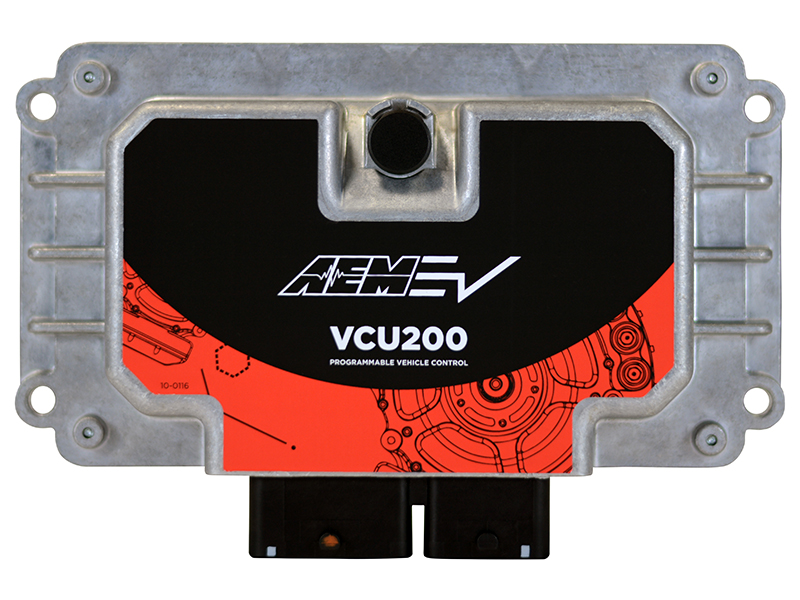

    AEM VCU200 Programmable EV Control Unit Part # SNSR-01501

    AEM VCU200 Programmable EV Control Unit AEM VCU200 Programmable EV Control Unit AEM VCU200 Programmable EV Control Unit AEM VCU200 Programmable EV Control Unit AEM VCU200 Programmable EV Control Unit
    Pricing
    1 + $1,499.99
    Information
    Bmotorsports Part # SNSR-01501
    Availability Special Order
    Shipping Weight 5 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Overview

    AEM VCU200 Programmable Electric Vehicle Control Unit

    AEM EV Vehicle Control Units (VCUs) are the missing link for high-performance EV street-conversion and motorsports applications. They allow the calibrator to create customized torque management strategies applicable to a wide range of EV systems and component combinations. They integrate EV systems and unify the tuning experience providing motorsports- and conversion-ready features presented in a high feature, modern and customizable interface. Be In Control with AEM EV.

    AEM EV's VCU200 is built on OEM hardware and features OEM quality strategies. Combined, these provide the highest level of reliability, and more importantly, safety for both the programmer and end-user.

    The VCU200 in default configuration can manage a single inverter/motor system, communicate with four independent CAN bus networks, and it can be used on direct-drive and indirect-drive EV setups. Multiple motor control systems may be possible depending on the application (contact sales@aemev.com). Please refer to the Supported Applications Tab for supported Motors, Inverters, Battery Management Systems (BMS) and other EV devices.

    Primary functions of the AEM VCU200 include:

    Input characterization including accelerator pedal, brake switch, PRND switches and other driver/vehicle inputs
    Redundancy and arbitration features for all safety-critical inputs
    Startup and shutdown sequencing of high voltage components, including independent contactor control
    CAN message translation for BMS, inverter, PDUs, and other CAN accessories
    Motor torque management dependent on vehicle operating states and other driver-selectable modes
    Closed-loop motor speed regulation for indirect drive transmission applications
    Dynamic torque limits that maximize safety and optimize performance
    Accessory control of cooling pumps, cooling fans, lights and more
    Diagnostics and fault detection including CAN message timeouts, thermal limits, contactor, and inverter enable cross-checks


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    AEM VCU300 30-8100 SNSR-01500AEM VCU300 Programmable EV Control Unit
    AEM VCU200 30-8000 SNSR-01501AEM VCU200 Programmable EV Control Unit
    AEM PDU-8 30-8300 SNSR-01502AEM PDU-8 Eight-Channel Power Distribution Unit
    AEM 8 Button PDU EV Keypad 30-8000 SNSR-01503AEM EV 8-Button CAN Keypad (PN 30-8400)
    Battery Management System Master Unit 30-8401M SNSR-01504AEM Battery Management System Master Unit 80-8401M
    Battery Management System Satellite Unit 30-8401S SNSR-01505AEM Battery Management System Satellite Unit 30-8401S
    Tesla LDU Driver SNSR-01506AEM Tesla LDU Base Drive Inverter Control Board, incl. Adapter Harness
    VCU 300 Plug & Pin Kit SNSR-01507
    VCU 200 Plug & pin kit SNSR-01508
    PDU-8 Plug & Pin kit SNSR-01509
    Mating Parts
    Small Terminals CONN-
    Large Terminals CONN-

    Features

    VCU200 Features:

    The AEM EV VCU200 features a waterproof aluminum enclosure (IP69K, -40C - 105C) and has an 80 pin connector. It is built on OEM hardware with OEM control strategies and uses proprietary AEMcal software for programming. (learn more about AEMcal software).

    The VCU200 can control one electric motor/inverter and link 4 independent controller area networks (CAN bus). A general set of hardware features is shown below. Actual features are application dependent (contact sales@aemev.com).

    INPUTS:

    • 13 Analog inputs
    • 15 Digital Inputs
    • 4 Frequency inputs


    OUTPUTS:
    • 12 Low-side drivers
    • Six (6) High-side drivers
    • 4 Half Bridges with shunt resistors which provide 4 low side drivers (PWN) or 4 High side drivers


    VCU200 comparison

      VCU200 VCU300
    General
    AEM Part Number 30-8000 30-8100
    User Interface AEMcal AEMcal
    Pin Count 80 196
    Clock Speed 64 MHz 200/260 MHz
    Motor Control 1* 4
    Inverter Control 1* 4
    CAN Buses 4 3
    Inputs**
    Analog Inputs 13 31
    Digital Inputs 15 8
    Frequency Inputs 4 5
    Outputs**
    Low Side Outputs 12 39
    High Side Drivers 6 2
    H-Bridges N/A 3
    1/2 Bridges*** 4 LS PWM or 4 HS Drivers N/A
    Main Power Relay Driver N/A 1
    Environmental
    Enclosure Rating IP6K7 (Waterproof) IP6K9K (Waterproof)
    Enclosure Material Aluminum Aluminum
    Operating Voltage 9-16V DC 9-16V DC
    Overvoltage Protection 16V DC 16V DC
    Dimensions 210 x 137.5 x 37.2mm 181 x 231 x 50mm
    Weight 1.2 lbs (.06kg) 2.2 lbs (1.1kg)
    Operating Temp Range -40c to +105c -40c to +105c

    * Multiple motor control systems may be possible depending on the application. Contact sales@aemev.com for more information.
    ** Input and Output count listed is based on hardware capability. Actual I/O counts are model dependent. For information or model development contact sales@aemev.com.
    *** With shunt resistors.
