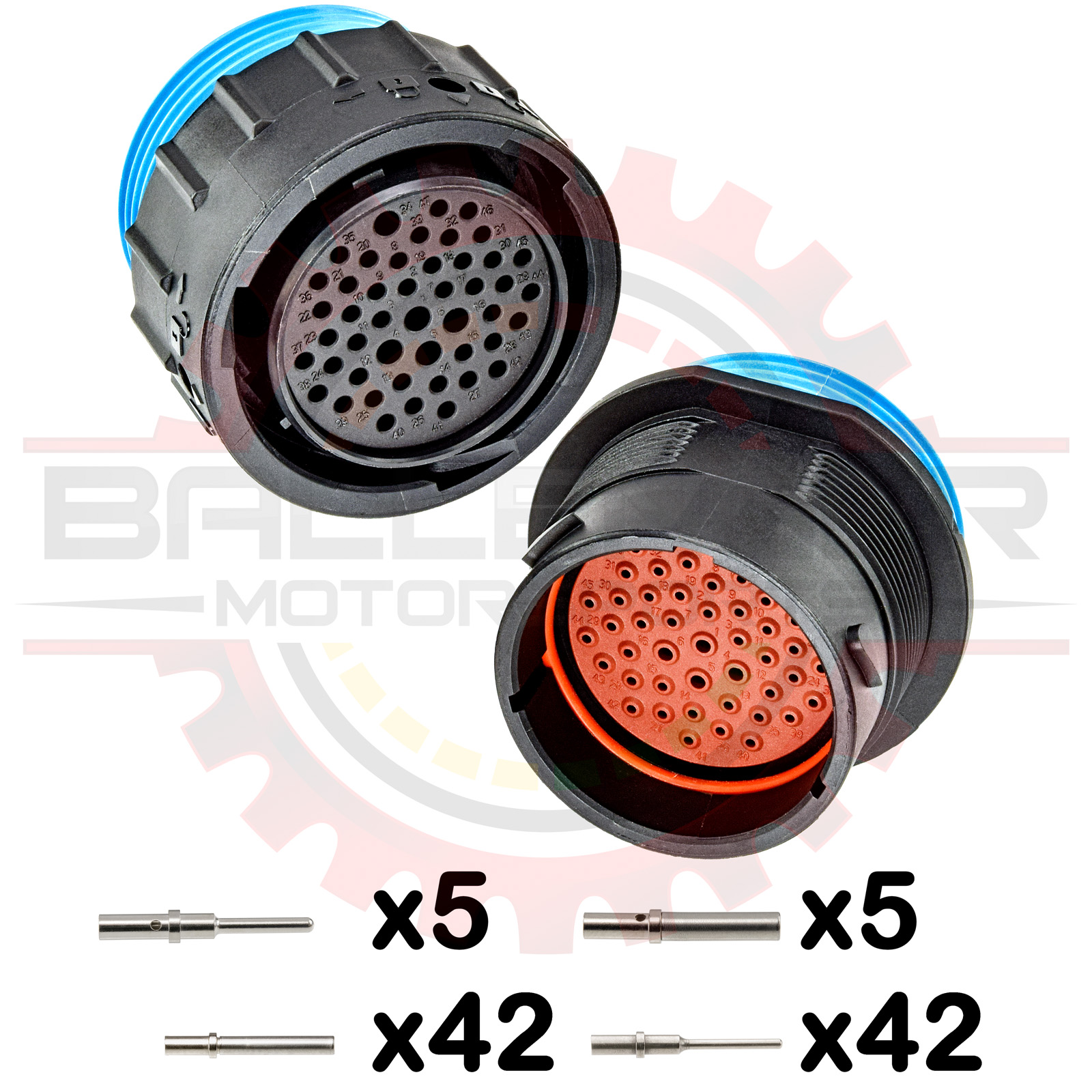

Amphenol Duramate 47 Way Bulkhead Connector Kit - Reduced Seal. Connector Kit. A kit comprising of housing pair, flange seal, spring washer, threaded lock nut, and terminals are included for a full install. Five size 16 cavities, Forty-two size 20 Cavities for maximum pin count in this shell size 24.
This bulkhead connector allows you to feed 47 signal and/or power wires through a firewall or bulkhead for a clean install free of grommets, providing a clean base to build an engine and chassis harness. Comes in a reduced seal version, normal diameter rear seal is available as special order.
Uses Size 16, and 20 contacts from Deutsch DT DTM/ Amphenol AT ATM / Delphi HES 1.6 and 1.0 series
The Amphenol Duramate connection system is perfect for use in high temperature and high vibration environments, boasting IP67/69K ingress protection against dust, water submersion and high pressure sprays. This is a -24 shell size version with reduced diameter rear seal for thinwall insulation wires (GXL, TXL, Tefzel, M22759/16, M22759/32)
The -24 shell size can be either used with a Duramate straight or 90° rear backshell. The Raychem 202K163 / 202K174 lipped heat molded straight boot, 202A174 non lipped straight boot, or 222K163 / 222K174 lipped, 90° molded boots fit over the wide thread adapters on the rear of the shell for a motorsport quality seal.
