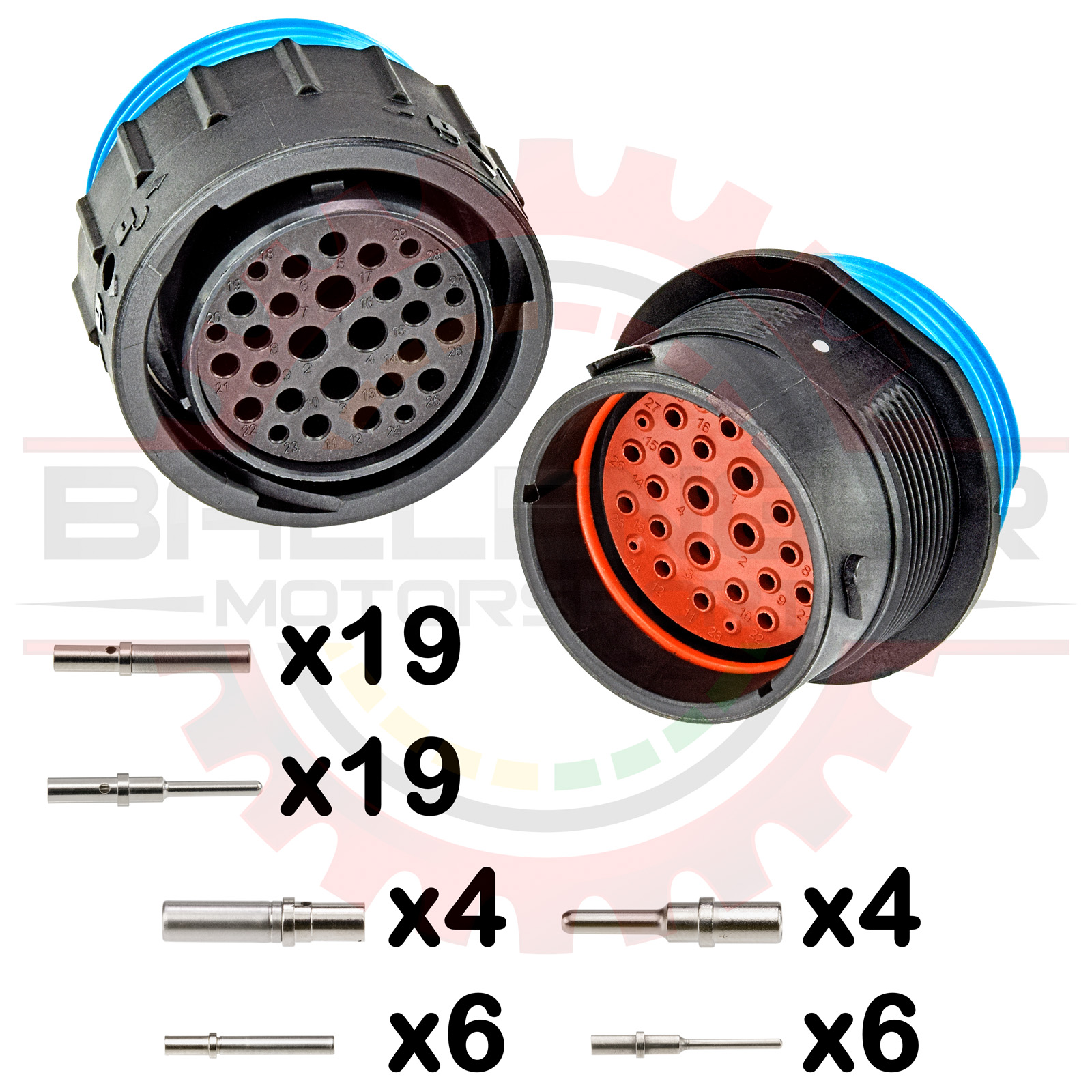

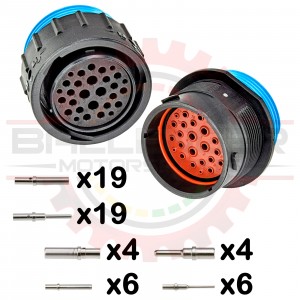

    Amphenol Duramate 29 Way Bulkhead Connector Kit Part # CONN-200111

    Amphenol Duramate 29 Way Bulkhead Connector Kit Amphenol Duramate 29 Way Bulkhead Connector Kit Amphenol Duramate 29 Way Bulkhead Connector Kit Amphenol Duramate 29 Way Bulkhead Connector Kit Amphenol Duramate 29 Way Bulkhead Connector Kit
    Pricing
    1 + $65.99
    Information
    Bmotorsports Part # CONN-200111
    Availability In Stock
    Shipping Weight 0.5 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    Amphenol Duramate 29 Way Bulkhead Connector Kit - Reduced Seal. Connector Kit. A kit comprising of housing pair, flange seal, spring washer, threaded lock nut, and terminals are included for a full install. Four size 12 cavities, nineteen size 16 cavities, six size 20 Cavities.

    This bulkhead connector allows you to feed 29 signal and/or power wires through a firewall or bulkhead for a clean install free of grommets, providing a clean base to build an engine and chassis harness. Comes in a reduced seal version, normal diameter rear seal is available as special order.

    Uses Size 12, 16, and 20 contacts from Deutsch DTP DT DTM/ Amphenol ATP AT ATM / Delphi HES 2.4, 1.6 and 1.0

    The Amphenol Duramate connection system is perfect for use in high temperature and high vibration environments, boasting IP67/69K ingress protection against dust, water submersion and high pressure sprays. This is a -24 shell size version with reduced diameter rear seal for thinwall insulation wires (GXL, TXL, Tefzel, M22759/16, M22759/32)
    The -24 shell size can be either used with a Duramate straight or 90° rear backshell. The Raychem 202K163 / 202K174 lipped heat molded straight boot, 202A174 non lipped straight boot, or 222K163 / 222K174 lipped, 90° molded boots fit over the wide thread adapters on the rear of the shell for a motorsport quality seal.


    Associated & Mating Parts

    Relationship Part # Description
    Replacement and Accessory Parts
    Rear 90° Size 24 Backshell CONN-101260Amphenol Duramate 90° Backshell Size 24
    Rear straight Size 24 Backshell CONN-101255Amphenol Duramate Threaded Straight Backshell Size 24
    Flange Felt Foam Seal CONN-101251Amphenol Duramate Shell Size 24 Felt Flange Seal Only
    Spring Lock Panel Washer CONN-101252Amphenol Duramate Shell Size 24 Panel Lock Washer Only
    Threaded Panel Nut CONN-101253Amphenol Duramate Shell Size 24 Threaded Panel Nut Only
    Associated Parts
    Size 12 Female Solid Contact CONN-101100Deutsch Size 12 Solid Female Pin Terminals, 2.5mm (14 - 12 AWG)
    Size 12 Male Solid Contact CONN-101101Deutsch Size 12 Solid Male Pin Terminals, 2.5mm (14 - 12 AWG)
    Size 16 Female Solid Contact CONN-100358Deutsch Size 16 Solid Female Socket Terminals, 0.5-1.5mm2 (20-16 AWG)
    Size 16 Male Solid Contact CONN-100357Deutsch Size 16 Solid Male Pin Terminals, 0.5-1.5mm2 (20-16 AWG)
    Size 16 Female Stamped + Formed Terminal CONN-100367Deutsch Size 16 Stamped & Formed Socket Female Nickel Plated Terminal, 0.5-1mm2 (20-16AWG)
    Size 16 Male Stamped + Formed Terminal CONN-100368Deutsch Size 16 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5-1mm2 (20-16AWG)
    Size 16 Cavity plug CONN-56158GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
    Size 20 Female Solid Contact CONN-100090Deutsch DTM Size 20 Solid Socket Female Nickel Plated Terminal, 0.5mm2 (20AWG)
    Size 20 Male Solid Contact CONN-100089Deutsch DTM Size 20 Solid Socket Male Nickel Plated Terminal, 0.5mm2 (20AWG)
    Size 20 Female Stamped + Formed Terminal CONN-100025Deutsch DTM Size 20 Stamped & Formed Socket Female Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
    Size 20 Male Stamped + Formed Terminal CONN-100088Deutsch DTM series Size 20 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
    Size 20 Cavity plug CONN-100026Deutsch Size 20 Sealing Cavity Plug
    Bulkhead Connector Kits
    19 way Duramate Bulkhead Kit CONN-200110Amphenol Duramate 19 Way Bulkhead Connector Kit
    29 Way Duramate Bulkhead Kit - Reduced Seal CONN-200111Amphenol Duramate 29 Way Bulkhead Connector Kit
    47 Way Duramate Bulkhead Kit - Reduced Seal CONN-200112Amphenol Duramate 47 Way Bulkhead Connector Kit
    48 Way Deutsch DRB Bulkhead Kit CONN-200100Deutsch DRB 48 Way Bulkhead Connector Kit

    Specifications

    Parameter Value
    Number of Ways29
    Terminal Size1mm
    Terminal Size (Secondary)1.6mm
    Terminal Size (Tertiary)2.4mm
    Terminal TypeRound
    Terminal Type (Secondary)Round
    Terminal Type (Tertiary)Round
    Min. Wire Gauge12
    Max. Wire Gauge20
