    Amphenol Duramate 19 Way Bulkhead Connector Kit Part # CONN-200110

    Amphenol Duramate 19 Way Bulkhead Connector Kit Amphenol Duramate 19 Way Bulkhead Connector Kit Amphenol Duramate 19 Way Bulkhead Connector Kit
    Pricing
    1 + $56.99
    Information
    Bmotorsports Part # CONN-200110
    Availability In Stock
    Shipping Weight 0.5 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

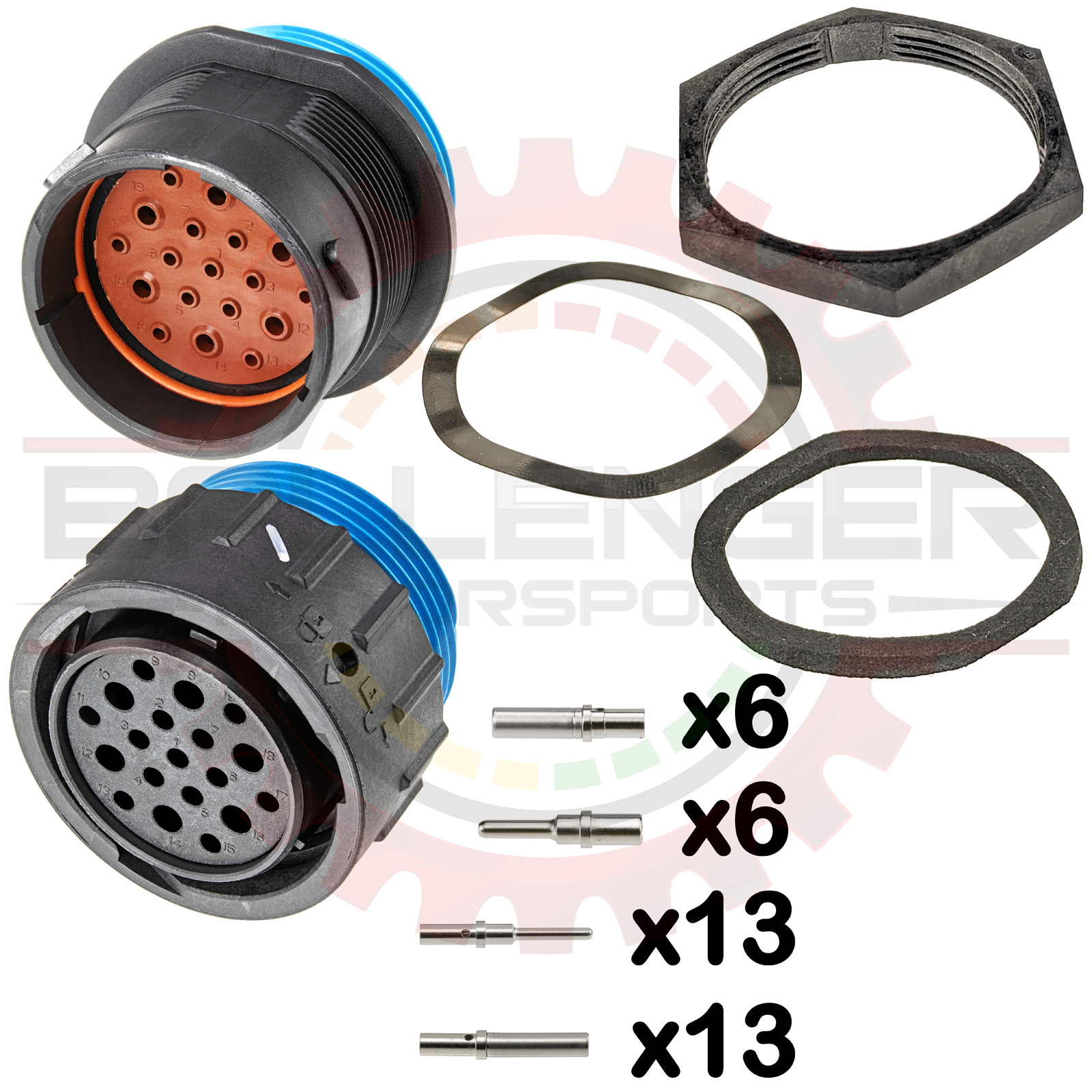

    Amphenol Duramate 19 Way Bulkhead Connector Kit - Reduced Seal. Connector Kit. A kit comprising of housing pair, flange seal, spring washer, threaded lock nut, and terminals are included for a full install. Six size 12 cavities and thirteen size 16 cavities.

    This bulkhead connector allows you to feed 19 signal and/or power wires through a firewall or bulkhead for a clean install free of grommets, providing a clean base to build an engine and chassis harness. * reduced seal version as pictured*

    Uses Size 12 and 16 contacts from Deutsch DTP DT / Amphenol ATP AT / Delphi HES 2.4 and 1.6.

    The Amphenol Duramate connection system is perfect for use in high temperature and high vibration environments, boasting IP67/69K ingress protection against dust, water submersion and high pressure sprays. This is a -24 shell size version with reduced diameter rear seal for thinwall insulation wires (GXL, TXL, Tefzel, M22759/16, M22759/32). ***The normal rear seal version is pictured, though we have now secured stock of the reduced seal.***
    This -24 shell size can be either used with a Duramate straight or 90° rear backshell. The Raychem 202K163 / 202K174 lipped heat molded straight boot, 202A174 non lipped straight boot, or 222K163 / 222K174 lipped, 90° molded boots fit over the wide thread adapters on the rear of the shell for a motorsport quality booted seal to other heatshrink or cable tubing / jackets.


    Associated & Mating Parts

    Relationship Part # Description
    Replacement and Accessory Parts
    Rear 90° Size 24 Backshell CONN-101260Amphenol Duramate 90° Backshell Size 24
    Rear straight Size 24 Backshell CONN-101255Amphenol Duramate Threaded Straight Backshell Size 24
    Flange Felt Foam Seal CONN-101251Amphenol Duramate Shell Size 24 Felt Flange Seal Only
    Spring Lock Panel Washer CONN-101252Amphenol Duramate Shell Size 24 Spring Lock Panel Washer Only
    Threaded Panel Nut CONN-101253Amphenol Duramate Shell Size 24 Threaded Panel Nut Only
    Associated Parts
    Size 12 Female Solid Contact CONN-101100Deutsch Size 12 Solid Female Pin Terminals, 2.5mm (14 - 12 AWG)
    Size 12 Male Solid Contact CONN-101101Deutsch Size 12 Solid Male Pin Terminals, 2.5mm (14 - 12 AWG)
    Size 16 Female Solid Contact CONN-100358Deutsch Size 16 Solid Female Socket Terminals, 0.5-1.5mm2 (20-16 AWG)
    Size 16 Male Solid Contact CONN-100357Deutsch Size 16 Solid Male Pin Terminals, 0.5-1.5mm2 (20-16 AWG)
    Size 16 Female Stamped + Formed Terminal CONN-100367Deutsch Size 16 Stamped & Formed Socket Female Nickel Plated Terminal, 0.5-1mm2 (20-16AWG)
    Size 16 Male Stamped + Formed Terminal CONN-100368Deutsch Size 16 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5-1mm2 (20-16AWG)
    Size 16 Cavity plug CONN-56158GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
    Bulkhead Connector Kits
    19 way Duramate Bulkhead Kit CONN-200110Amphenol Duramate 19 Way Bulkhead Connector Kit
    29 Way Duramate Bulkhead Kit - Reduced Seal CONN-200111Amphenol Duramate 29 Way Bulkhead Connector Kit
    47 Way Duramate Bulkhead Kit - Reduced Seal CONN-200112Amphenol Duramate 47 Way Bulkhead Connector Kit
    48 Way Deutsch DRB Bulkhead Kit CONN-200100Deutsch DRB 48 Way Bulkhead Connector Kit

    Specifications

    Parameter Value
    Number of Ways19
    Terminal Size1.6mm
    Terminal Size (Secondary)2.4mm
    Terminal TypeRound
    Terminal Type (Secondary)Round
    Min. Wire Gauge12
    Max. Wire Gauge20
