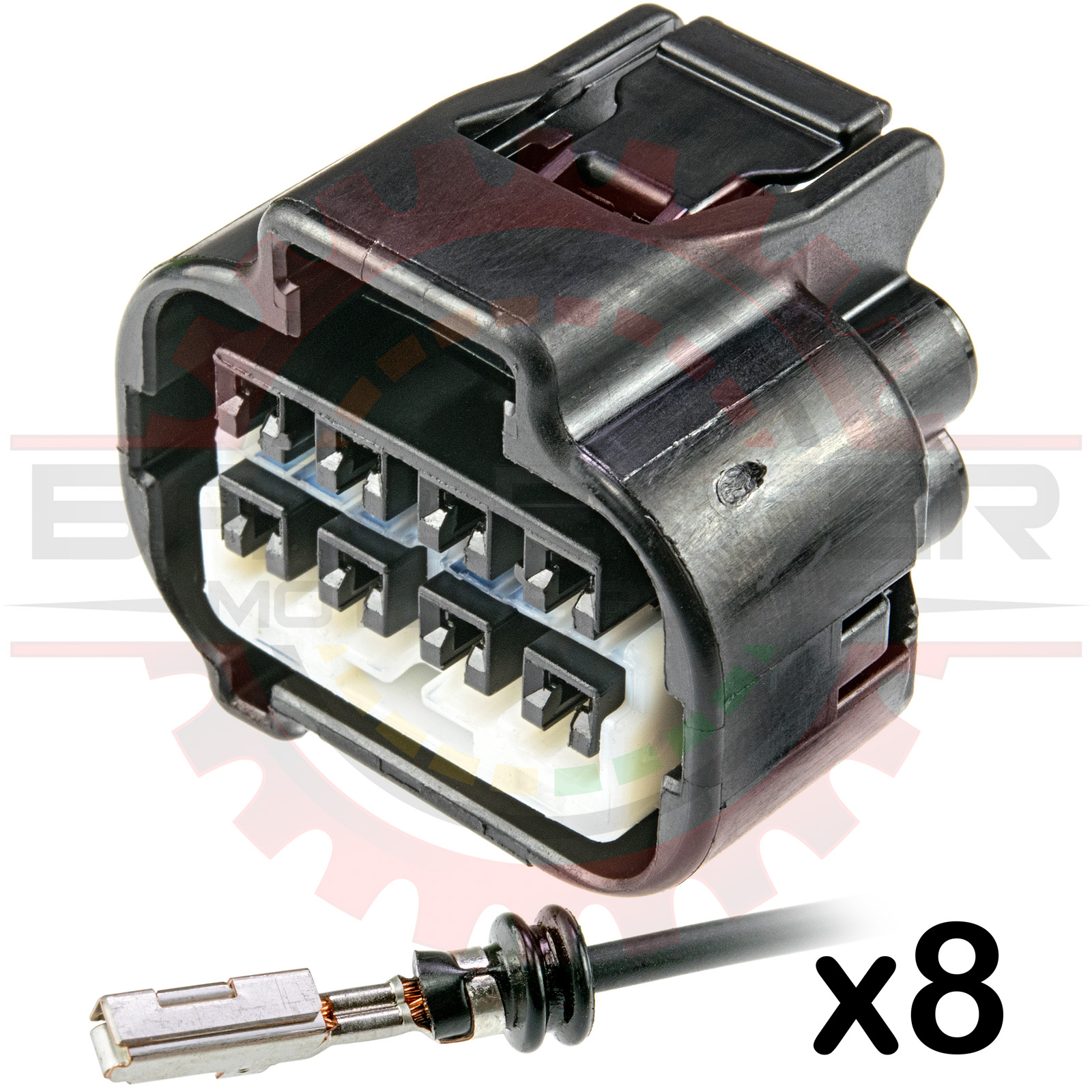

8 Way Japanese Connector Plug Pigtail for Headlight Applications Toyota # 90980-10897	Part # CONN-86067

Pricing
1 +	$18.49
25 +	$16.49
50 +	$15.99
100 +	$12.49
Information
Bmotorsports Part #	CONN-86067
Availability	In Stock
Shipping Weight	0.085 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

8 Way Japanese Connector Plug Pigtail for Headlight Applications Toyota # 90980-10897. Connector Pigtail. Finished crimps and cavity plugs are included. Crimp terminations are pefroemd and

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
20-16 AWG Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
22-20 AWG Terminals	CONN-11857	Yazaki Female Terminals for 2 way 090 IAT / MAT Connector ( 22 - 20 AWG )
22-18 AWG Seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
20-16 AWG Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Housing	CONN-101017	8 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897
8 way Connector Kit	CONN-76067	8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897
8 way Connector Pigtail	CONN-86067	8 Way Japanese Connector Plug Pigtail for Headlight Applications Toyota # 90980-10897
Headlight Harness	CONN-86070	Tundra LED Retrofit Headlight harness
Associated 4 Way Connector Parts
4 way Connector Plug Kit	CONN-75928	4 Way Connector Plug Kit for Toyota & Subaru Oxygen Sensor, 90980-10869
4 way Connector Receptacle Kit	CONN-75929	4 Way Connector Receptacle Kit for Toyota & Subaru Oxygen Sensor, 90980-10868
Connector Housing	CONN-100851	4 Way Connector Plug for Toyota & Subaru Oxygen Sensor, 90980-10869
Connector Housing	CONN-100852	4 Way Connector Receptacle for Toyota & Subaru Oxygen Sensor, 90980-10868
4 way Plug Pigtail	CONN-85928	4 Way Connector Plug Pigtail for Toyota & Subaru Oxygen Sensor, 90980-10869
4 way Receptacle Pigtail	CONN-85929	4 Way Connector Receptacle Pigtail for Toyota & Subaru Oxygen Sensor, 90980-10868

Applications

2018 Toyota Tundra LED Headlamp connector

Specifications

Parameter Value
Number of Ways 8
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

This product contains the following items:
	» 40 x Labor $0.25/minute Part # LABR-00001
	» 8 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 8 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 8 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 3 x Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465 Part # CONN-100550
	» 1 x 8 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897 Part # CONN-101017
