    8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897 Part # CONN-76067

    8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897 8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897 8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897
    Pricing
    1 + $10.49
    25 + $8.49
    50 + $7.99
    100 + $6.49
    Information
    Bmotorsports Part # CONN-76067
    Availability In Stock
    Shipping Weight 0.25 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897. Connector kit. Terminals, seals, and cavity plugs are included.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    20-16 AWG Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
    22-20 AWG Terminals CONN-11857Yazaki Female Terminals for 2 way 090 IAT / MAT Connector ( 22 - 20 AWG )
    22-18 AWG Seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
    20-16 AWG Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
    Cavity Plug CONN-100550Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
    Connector Housing CONN-1010178 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897
    8 way Connector Kit CONN-76086
    8 way Connector Pigtail CONN-86086
    Headlight Harness CONN-86070Tundra LED Retrofit Headlight harness
    Associated 4 Way Connector Parts
    4 way Connector Plug Kit CONN-759284 Way Connector Plug Kit for Toyota & Subaru Oxygen Sensor, 90980-10869
    4 way Connector Receptacle Kit CONN-759294 Way Connector Receptacle Kit for Toyota & Subaru Oxygen Sensor, 90980-10868
    Connector Housing CONN-1008514 Way Connector Plug for Toyota & Subaru Oxygen Sensor, 90980-10869
    Connector Housing CONN-1008524 Way Connector Receptacle for Toyota & Subaru Oxygen Sensor, 90980-10868
    4 way Plug Pigtail CONN-859284 Way Connector Plug Pigtail for Toyota & Subaru Oxygen Sensor, 90980-10869
    4 way Receptacle Pigtail CONN-859294 Way Connector Receptacle Pigtail for Toyota & Subaru Oxygen Sensor, 90980-10868

    Applications

    • 2018 Toyota Tundra LED Headlamp connector


    Specifications

    Parameter Value
    Number of Ways8
    GenderPlug/Male
    Terminal Size2.3mm
    Terminal TypeFlat
    Min. Wire Gauge22
    Max. Wire Gauge16

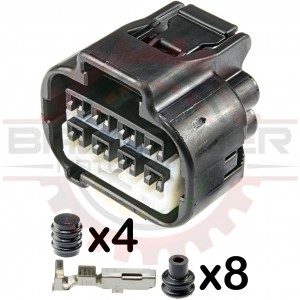

    This product contains the following items:
    Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 8 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
    Part # CONN-00145
    Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )» 8 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
    Part # CONN-11856
    Sumitomo MT / TS / HX /  SL Sealed Series Cavity plug, black 7160-9465» 4 x Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
    Part # CONN-100550
    8 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897» 1 x 8 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897
    Part # CONN-101017
