Home » Shop » Wideband O2 » O2 Connectors » Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX

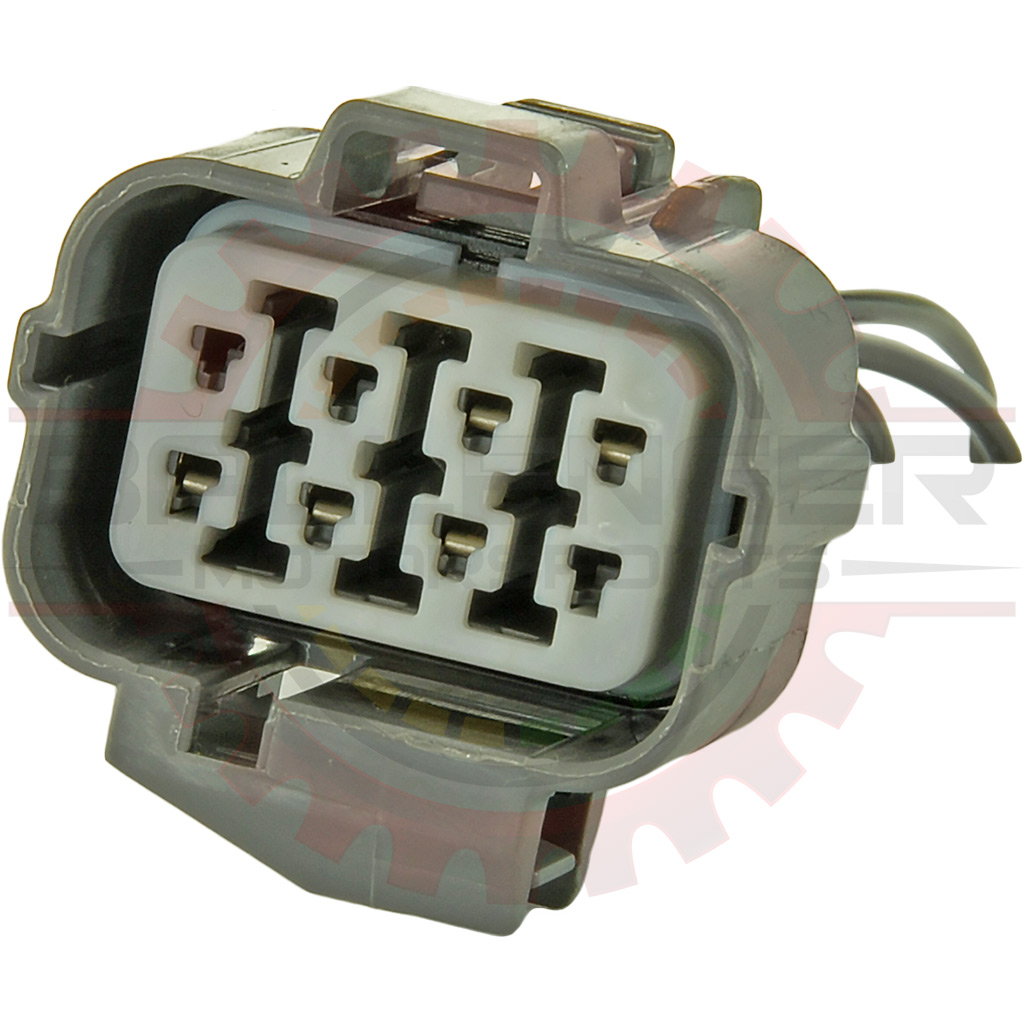

Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX	Part # CONN-85588

Pricing
1 +	$17.99
5 +	$17.49
10 +	$16.99
25 +	$14.99
50 +	$13.99
Information
Bmotorsports Part #	CONN-85588
Availability	In Stock
Shipping Weight	0.25 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11656	Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug	CONN-00130	Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Only	CONN-00121	Mate to NGK / NTK Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( 8-way connector and TPA )
Connector Kit	CONN-00124	Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Connector Pigtail	CONN-85588	Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX
Mating Parts
Terminals	CONN-00115	Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug	CONN-00130	Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Only	CONN-00110	NGK / NTK 8-way Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( connector and TPA )
Connector Kit	CONN-00135	8 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Connector Pigtail	CONN-85590	NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Extension
Extension	CONN-85793	NTK Wideband Sensor Extension Harness
Mating Sensors
NGK / NTK Wideband O2 Sensor (UEGO)	SNSR-01010	NGK / NTK Wideband O2 Sensor ( UEGO ) for NGK Powerdex AFX, Ballenger Motorsports AFR500, OEM replacement & other wideband systems
Bosch LSU Wideband O2 Sensor (UEGO)	SNSR-01012	Bosch LSU Wideband O2 Sensor ( UEGO ) with NTK/NGK Connector for NGK Powerdex AFX & Ballenger Motorsports AFR500
NGK / NTK Wideband O2 Sensor (UEGO)	SNSR-01016	NGK / NTK Wideband O2 Sensor ( UEGO ) for Custom Applications - NGK PN 24300
NGK / NTK Wideband O2 Sensor (UEGO)	SNSR-01017	NGK / NTK Wideband O2 Sensor ( UEGO ) for Custom Applications - NGK PN 24301

Specifications

Parameter Value
Number of Ways 6
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 8 x Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy] Part # CONN-11656
	» 8 x 18AWG Automotive Teflon Mil-Spec Wire Black Part # WIRE-00489s
	» 8 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 3 x Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229 Part # CONN-00130
	» 1 x 8 way connector Mate to NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX Part # CONN-00122
	» 1 x Retainer for Mate to NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX Part # CONN-00123
