8 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 Part # CONN-00135

8 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 8 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Pricing
1 + $10.99
5 + $10.49
10 + $9.99
25 + $9.49
50 + $8.99
100 + $7.99
Information
Bmotorsports Part # CONN-00135
Availability In Stock
Shipping Weight 0.04 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

NGK / NTK Connector Kit to adapt Bosch LSU Wideband O2 Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500

About this kit: This kit comes with the NTK/NGK style connector, terminals, seals & plugs to allow a user to modify their Bosch LSU sensor to plug into the NGK Powerdex AFX.

Additional Information: Color Chart to Adapt Bosch LSU sensor to NTK Connector


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-00115Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug CONN-00130Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Only CONN-00110NGK / NTK 8-way Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( connector and TPA )
Connector Kit CONN-001358 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Connector Pigtail CONN-85590NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Mating Parts
Terminals CONN-11656Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug CONN-00130Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Only CONN-00121Mate to NGK / NTK Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( 8-way connector and TPA )
Connector Kit CONN-00124Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Connector Pigtail CONN-85588Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX
Extension
Extension CONN-85793NTK Wideband Sensor Extension Harness

Specifications

Parameter Value
Number of Ways8
GenderReceptacle/Female
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge16

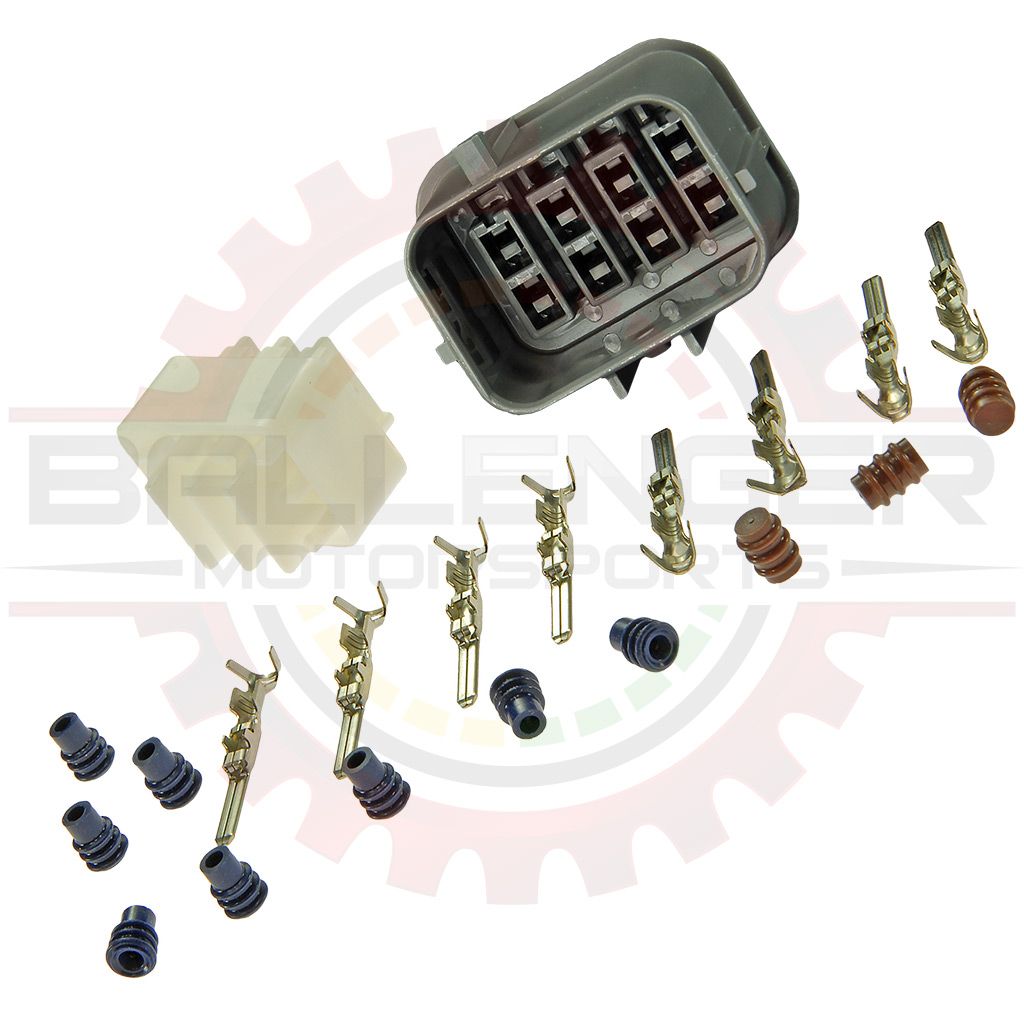

This product contains the following items:
Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)» 8 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Part # CONN-00119
Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229» 3 x Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Part # CONN-00130
Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle» 8 x Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Part # CONN-00115
8 way NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX» 1 x 8 way NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX
Part # CONN-00100
TPA for NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX» 1 x TPA for NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX
Part # CONN-00105
