Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 Part # CONN-00124

Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Pricing
1 + $10.99
5 + $10.49
10 + $9.99
25 + $9.49
50 + $8.99
100 + $7.99
Information
Bmotorsports Part # CONN-00124
Availability In Stock
Shipping Weight 0.04 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Also mates to 8-way 1992-1995 Honda Civic Distributor connector


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-11656Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug CONN-00130Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Only CONN-00121Mate to NGK / NTK Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( 8-way connector and TPA )
Connector Kit CONN-00124Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Connector Pigtail CONN-85588Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX
Mating Parts
Terminals CONN-00115Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Cavity Plug CONN-00130Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Connector Only CONN-00110NGK / NTK 8-way Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( connector and TPA )
Connector Kit CONN-001358 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Connector Pigtail CONN-85590NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
Extension
Extension CONN-85793NTK Wideband Sensor Extension Harness
Mating Sensors
NGK / NTK Wideband O2 Sensor (UEGO) SNSR-01010NGK / NTK Wideband O2 Sensor ( UEGO ) for NGK Powerdex AFX, Ballenger Motorsports AFR500, OEM replacement & other wideband systems
Bosch LSU Wideband O2 Sensor (UEGO) SNSR-01012Bosch LSU Wideband O2 Sensor ( UEGO ) with NTK/NGK Connector for NGK Powerdex AFX & Ballenger Motorsports AFR500
NGK / NTK Wideband O2 Sensor (UEGO) SNSR-01016NGK / NTK Wideband O2 Sensor ( UEGO ) for Custom Applications - NGK PN 24300
NGK / NTK Wideband O2 Sensor (UEGO) SNSR-01017NGK / NTK Wideband O2 Sensor ( UEGO ) for Custom Applications - NGK PN 24301

Specifications

Parameter Value
Number of Ways8
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge16

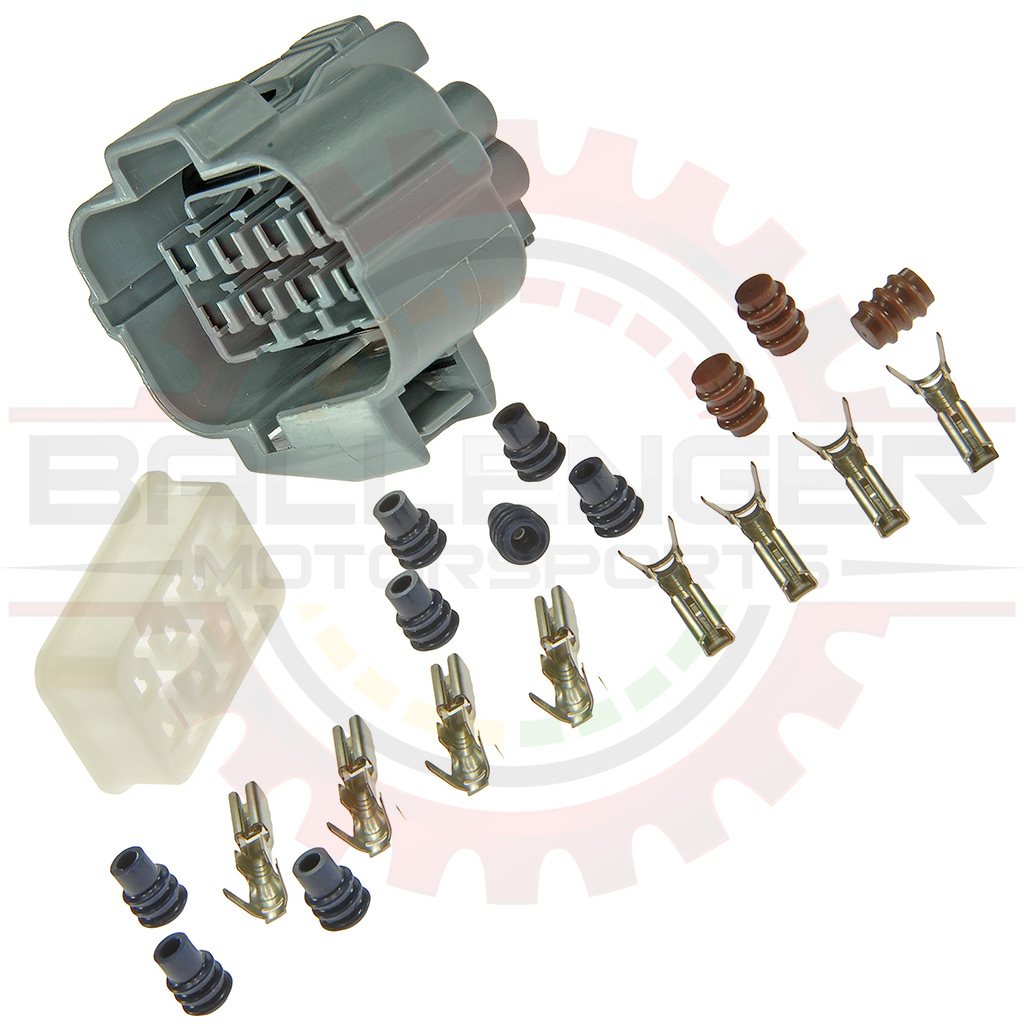

This product contains the following items:
Injector Connector Terminal (22 - 16 gauge)  [heat resistant copper alloy]» 8 x Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Part # CONN-11656
Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)» 8 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Part # CONN-00119
Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229» 3 x Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
Part # CONN-00130
8 way connector Mate to NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX» 1 x 8 way connector Mate to NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX
Part # CONN-00122
Retainer for Mate to NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX» 1 x Retainer for Mate to NGK / NTK Connector to adapt Bosch LSU Sensor for NGK Powerdex AFX
Part # CONN-00123
