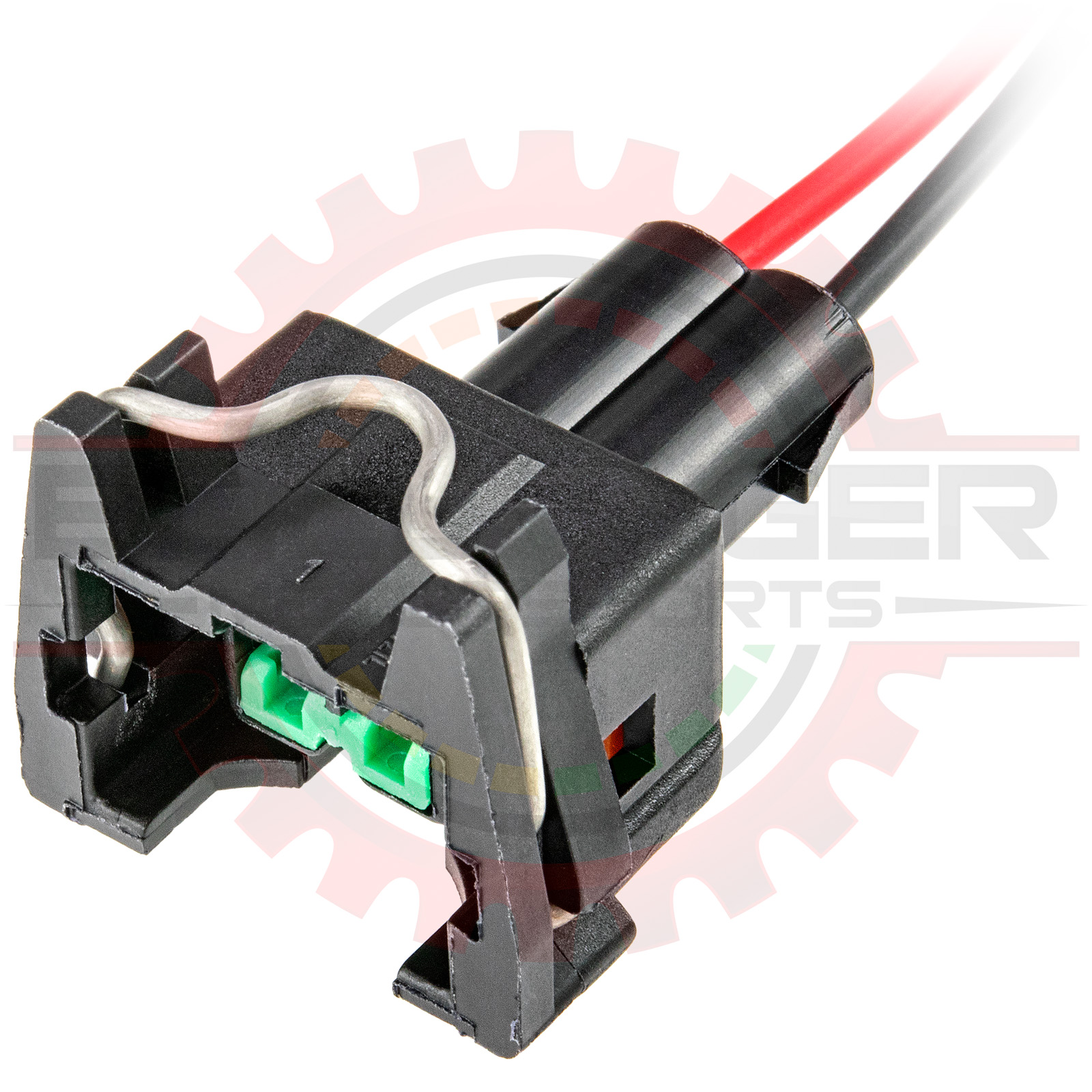

    GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat Part # CONN-85660

    GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat
    Pricing
    1 + $5.99
    5 + $5.75
    25 + $5.49
    50 + $5.25
    100 + $4.99
    1000 + $3.99
    Information
    Bmotorsports Part # CONN-85660
    Availability In Stock
    Shipping Weight 0.05 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat

    Used on the tnyCWA Temperature Sensor among thousands of applications.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    Terminals CONN-10575Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
    Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
    Connector CONN-10659GM Delphi / Packard - 2-way Bosch EV1 Type Injector Connector ( connector only ) Push to seat
    Connector Kit CONN-75660GM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to seat
    Production Kit CONN-75660pGM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to seat ( Production Kit )
    Connector Pigtail CONN-85660GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat
    Mating Parts
    Terminals CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
    Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Connector CONN-10557Bosch Type EV1 Injector Connector MATE ( 2 way, connector only )
    Connector Kit CONN-75571Bosch Type EV1 Injector Connector MATE Connector Kit
    Connector Pigtail CONN-85571Bosch Type EV1 Injector Connector MATE Connector Pigtail
    Mating Injectors
    Fuel Injector MOTR-04555Siemens DEKA IV ( DEKA 4 ) Mototron 60lb/hour High Impedance Injectors ( Short Style )
    Fuel Injector MOTR-04556Siemens DEKA IV ( DEKA 4 ) Mototron 60lb/hour High Impedance Injectors ( Long Style ) with EV1 Connector
    Fuel Injector MOTR-04561Siemens DEKA IV ( DEKA 4 ) Mototron 80lb/hour High Impedance Injectors ( Long Style ) with EV1 Connector
    Fuel Injector MOTR-04563Siemens DEKA V ( DEKA 5 ) 80lb/hour High Impedance Injectors ( Short Style )
    Fuel Injector MOTR-04564Siemens DEKA IV ( DEKA 4 ) Mototron 42lb/hour High Impedance Injectors ( Short Style )
    Fuel Injector MOTR-04575Siemens DEKA I 83 lb / hour Low Impedance Injectors
    Fuel Injector MOTR-04655Bosch 1680 cc/min ( 160 lb/hr ) Low Impedance Injectors ( Alcohol Compatible )
    Fuel Injector MOTR-04656SALE - Bosch 1680 cc/min ( 160 lb/hr ) Blue Top Indy Low Impedance Injectors ( Alcohol Compatible )
    Fuel Injector MOTR-04674SALE - Bosch 0280155796 / Ford F8CEA5A Fuel Injector
    Fuel Injector MOTR-04757Delphi 120 lb/hour Low Impedance Injectors
    Fuel Injector MOTR-04758Delphi 96 lb/hour Low Impedance Injectors
    Fuel Injector MOTR-04760Delphi 83 lb/hour Low Impedance Injectors
    Fuel Injector MOTR-04855Magnetti Marelli 46 lb/hr or 491 cc/min, short racing injectors
    Mating Sensors
    Knock Kit SNSR-159003Bosch Motorsports KS4-P Knock / Detonation Sensor with Connector Kit
    Knock Kit SNSR-159004Bosch Motorsports KS4-P Knock / Detonation Sensor with Pigtail Kit
    Knock Kit SNSR-159006Bosch Motorsports KS4-P Knock / Detonation Sensor with Connector Kit and Mounting Hardware
    Knock Kit SNSR-159007Bosch Motorsports KS4-P Knock / Detonation Sensor with Pigtail Kit and Mounting Hardware

    Specifications

    Parameter Value
    Number of Ways2
    GenderPlug/Male
    Terminal Size2.8mm
    Terminal TypeFlat


    Applications

    Cross References:

    • Equivalent to ACDelco Pigtail PT112 & GM Pigtail Part# 12085490
    • Equivalent to ACDelco Pigtail PT1399 & GM Pigtail Part# 89046833
    • Equivalent to ACDelco Pigtail PT1828 & GM Pigtail Part# 88988390
    • Compatible with ACDelco Pigtail PT113 & GM Pigtail Part# 12085491



    This product contains the following items:
    Labor $0.25/minute» 10 x Labor $0.25/minute
    Part # LABR-00001
    18AWG Automotive TXL Wire Black» 1 x 18AWG Automotive TXL Wire Black
    Part # WIRE-00459s
    18AWG Automotive TXL Wire Red» 1 x 18AWG Automotive TXL Wire Red
    Part # WIRE-02459s
    GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white» 2 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Part # CONN-56057
    Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)» 2 x Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
    Part # CONN-10575
    GM Delphi / Packard - 2-way Bosch EV1 Type Injector Connector ( connector only ) Push to seat» 1 x GM Delphi / Packard - 2-way Bosch EV1 Type Injector Connector ( connector only ) Push to seat
    Part # CONN-10659
