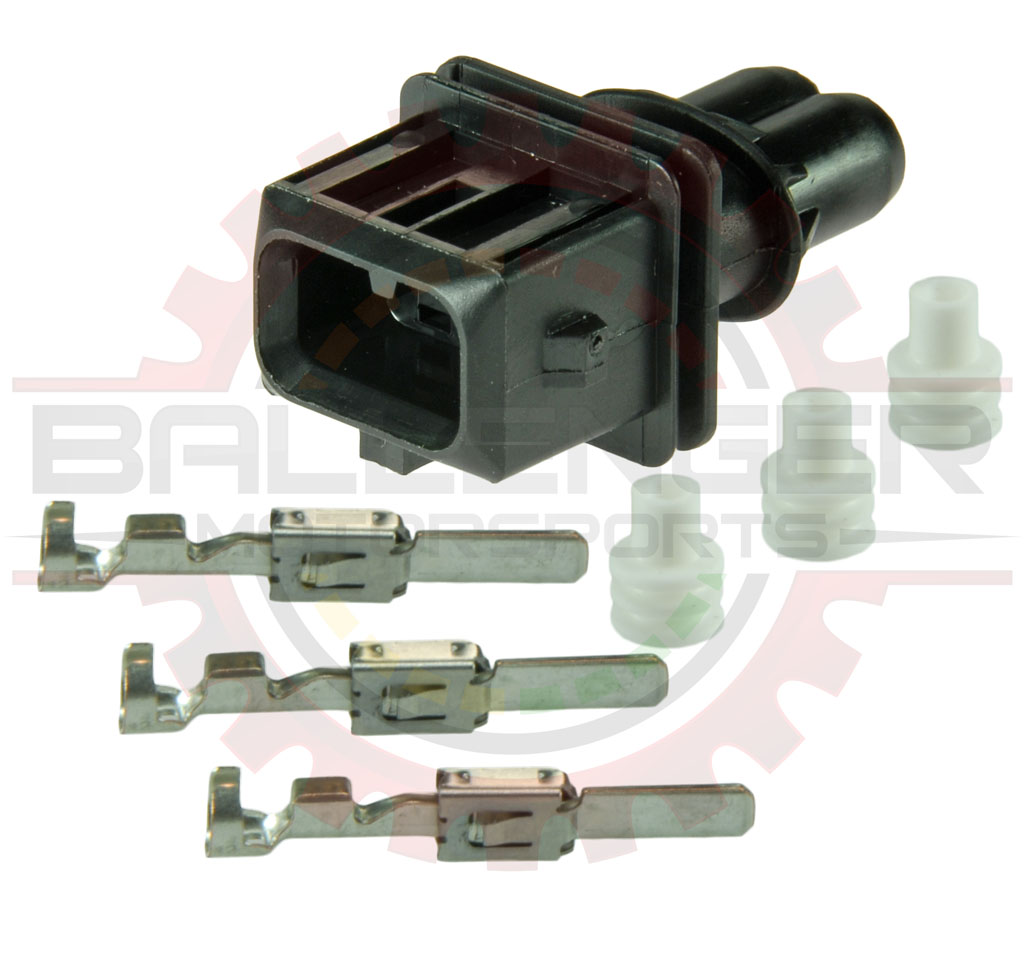

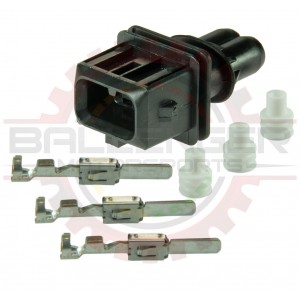

Bosch Type EV1 Injector Connector MATE Connector Kit Part # CONN-75571

Bosch Type EV1 Injector Connector MATE Connector Kit Bosch Type EV1 Injector Connector MATE Connector Kit Bosch Type EV1 Injector Connector MATE Connector Kit
Pricing
1 + $4.99
5 + $4.75
25 + $4.49
50 + $4.25
100 + $3.99
1000 + $2.99
Information
Bmotorsports Part # CONN-75571
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description



Bosch Type EV1 Injector Connector MATE Connector Kit. The MATE to the very common Bosch EV1 "rectangular" connector.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector CONN-10557Bosch Type EV1 Injector Connector MATE ( 2 way, connector only )
Connector Kit CONN-75571Bosch Type EV1 Injector Connector MATE Connector Kit
Connector Pigtail CONN-85571Bosch Type EV1 Injector Connector MATE Connector Pigtail
Mating Parts
Terminals CONN-10575Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector CONN-10659GM Delphi / Packard - 2-way Bosch EV1 Type Injector Connector ( connector only ) Push to seat
Connector Kit CONN-75660GM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to seat
Production Kit CONN-75660pGM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to seat ( Production Kit )
Connector Pigtail CONN-85660GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat
Pair Kit
Connector Pair CONN-200005GM Delphi / Packard - 2-way EV1 connector pair push to seat
Mating Injectors
Fuel Injector MOTR-04555Siemens DEKA IV ( DEKA 4 ) Mototron 60lb/hour High Impedance Injectors ( Short Style )
Fuel Injector MOTR-04556Siemens DEKA IV ( DEKA 4 ) Mototron 60lb/hour High Impedance Injectors ( Long Style ) with EV1 Connector
Fuel Injector MOTR-04561Siemens DEKA IV ( DEKA 4 ) Mototron 80lb/hour High Impedance Injectors ( Long Style ) with EV1 Connector
Fuel Injector MOTR-04563Siemens DEKA V ( DEKA 5 ) 80lb/hour High Impedance Injectors ( Short Style )
Fuel Injector MOTR-04564Siemens DEKA IV ( DEKA 4 ) Mototron 42lb/hour High Impedance Injectors ( Short Style )
Fuel Injector MOTR-04575Siemens DEKA I 83 lb / hour Low Impedance Injectors
Fuel Injector MOTR-04655Bosch 1680 cc/min ( 160 lb/hr ) Low Impedance Injectors ( Alcohol Compatible )
Fuel Injector MOTR-04656SALE - Bosch 1680 cc/min ( 160 lb/hr ) Blue Top Indy Low Impedance Injectors ( Alcohol Compatible )
Fuel Injector MOTR-04674SALE - Bosch 0280155796 / Ford F8CEA5A Fuel Injector
Fuel Injector MOTR-04757Delphi 120 lb/hour Low Impedance Injectors
Fuel Injector MOTR-04758Delphi 96 lb/hour Low Impedance Injectors
Fuel Injector MOTR-04760Delphi 83 lb/hour Low Impedance Injectors
Fuel Injector MOTR-04855Magnetti Marelli 46 lb/hr or 491 cc/min, short racing injectors
Mating Sensors
Knock Kit SNSR-159003Bosch Motorsports KS4-P Knock / Detonation Sensor with Connector Kit
Knock Kit SNSR-159004Bosch Motorsports KS4-P Knock / Detonation Sensor with Pigtail Kit
Knock Kit SNSR-159006Bosch Motorsports KS4-P Knock / Detonation Sensor with Connector Kit and Mounting Hardware
Knock Kit SNSR-159007Bosch Motorsports KS4-P Knock / Detonation Sensor with Pigtail Kit and Mounting Hardware

Specifications

Parameter Value
Number of Ways2
GenderReceptacle/Female
Terminal Size2.8mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16



This product contains the following items:
Junior Power Timer Male Terminal for 20 - 16 gauge wire» 3 x Junior Power Timer Male Terminal for 20 - 16 gauge wire
Part # CONN-10555
GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white» 3 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Part # CONN-56057
Bosch Type EV1 Injector Connector MATE ( 2 way, connector only )» 1 x Bosch Type EV1 Injector Connector MATE ( 2 way, connector only )
Part # CONN-10557
