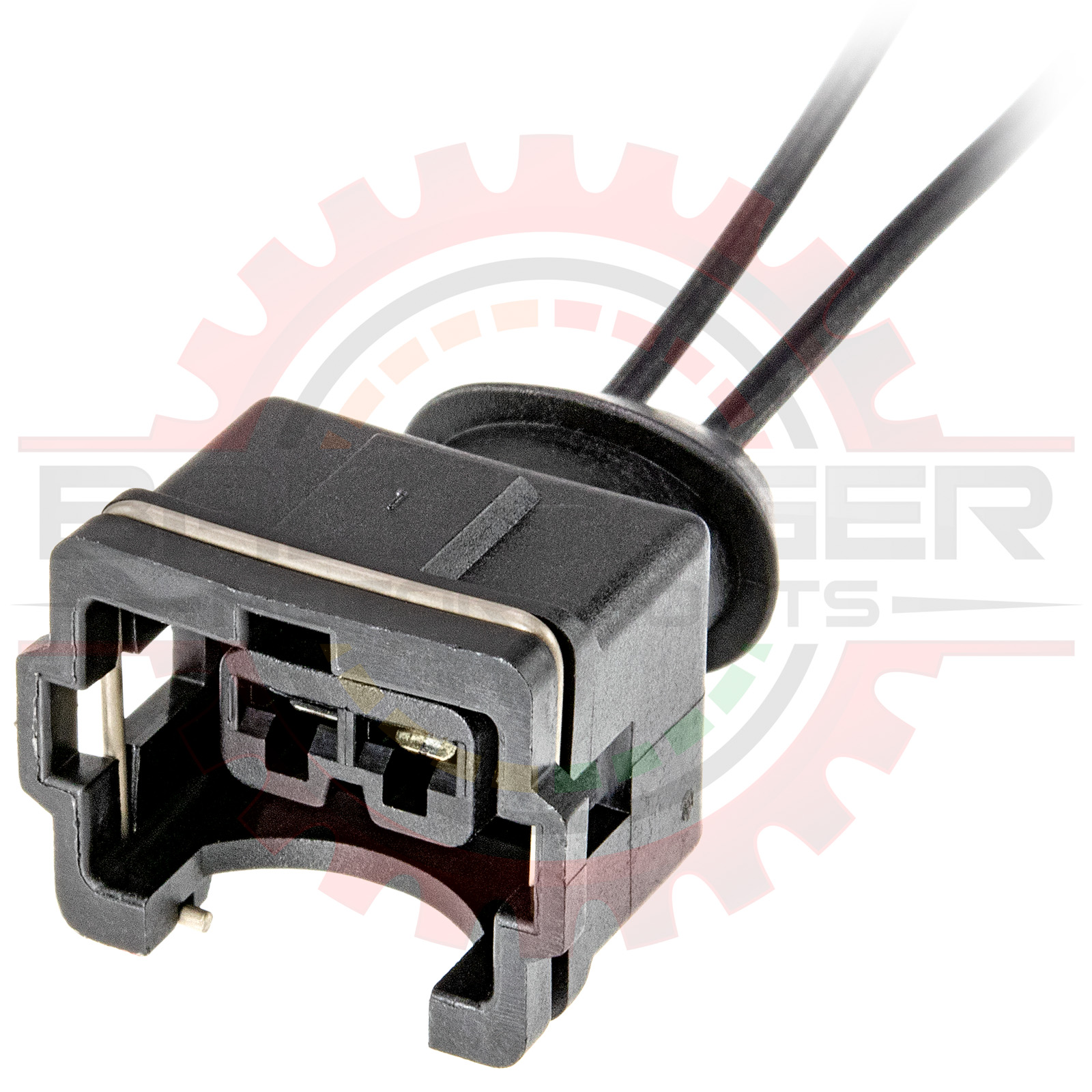

    TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Pigtail Part # CONN-86229

    TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Pigtail TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Pigtail TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Pigtail
    Pricing
    1 + $7.99
    10 + $7.89
    25 + $7.75
    50 + $7.69
    100 + $7.49
    1000 + $7.25
    Information
    Bmotorsports Part # CONN-86229
    Availability In Stock
    Shipping Weight 0.05 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Pigtail. Connector Pigtail. A completed pigtail with 12" wire leads is provided.

    A low height and shorter length EV1 connector for tight clearances. Normal length JPT terminals (21.6mm) will put your wire seals nearly outside of the housing. short version JPT terminals (19.6mm length CONN-10575, and 18.8mm length) will put the wire seals slightly outside of this housing. You may use cable seals, but it is recommended that you heat shrink or boot this connection for weather sealing ability.

    A very common connector which works with many fuel injectors, solenoids, sensors, and much more. Used on the tnyCWA Temperature Sensor among thousands of other applications.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    Terminals CONN-10575Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
    Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
    Connector CONN-10661TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector
    Connector Kit CONN-76229TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Kit
    Connector Pigtail CONN-86229TE 2 Way Bosch Jetronic Low Profile EV1 Injector Connector Pigtail
    Mating Parts
    Terminals CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
    Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Connector CONN-10557Bosch Type EV1 Injector Connector MATE ( 2 way, connector only )
    Connector Kit CONN-75571Bosch Type EV1 Injector Connector MATE Connector Kit
    Connector Pigtail CONN-85571Bosch Type EV1 Injector Connector MATE Connector Pigtail
    Mating Injectors
    Fuel Injector MOTR-04555Siemens DEKA IV ( DEKA 4 ) Mototron 60lb/hour High Impedance Injectors ( Short Style )
    Fuel Injector MOTR-04556Siemens DEKA IV ( DEKA 4 ) Mototron 60lb/hour High Impedance Injectors ( Long Style ) with EV1 Connector
    Fuel Injector MOTR-04561Siemens DEKA IV ( DEKA 4 ) Mototron 80lb/hour High Impedance Injectors ( Long Style ) with EV1 Connector
    Fuel Injector MOTR-04563Siemens DEKA V ( DEKA 5 ) 80lb/hour High Impedance Injectors ( Short Style )
    Fuel Injector MOTR-04564Siemens DEKA IV ( DEKA 4 ) Mototron 42lb/hour High Impedance Injectors ( Short Style )
    Fuel Injector MOTR-04575Siemens DEKA I 83 lb / hour Low Impedance Injectors
    Fuel Injector MOTR-04655Bosch 1680 cc/min ( 160 lb/hr ) Low Impedance Injectors ( Alcohol Compatible )
    Fuel Injector MOTR-04656SALE - Bosch 1680 cc/min ( 160 lb/hr ) Blue Top Indy Low Impedance Injectors ( Alcohol Compatible )
    Fuel Injector MOTR-04674SALE - Bosch 0280155796 / Ford F8CEA5A Fuel Injector
    Fuel Injector MOTR-04757Delphi 120 lb/hour Low Impedance Injectors
    Fuel Injector MOTR-04758Delphi 96 lb/hour Low Impedance Injectors
    Fuel Injector MOTR-04760Delphi 83 lb/hour Low Impedance Injectors
    Fuel Injector MOTR-04855Magnetti Marelli 46 lb/hr or 491 cc/min, short racing injectors
    Mating Sensors
    Knock Kit SNSR-159003Bosch Motorsports KS4-P Knock / Detonation Sensor with Connector Kit
    Knock Kit SNSR-159004Bosch Motorsports KS4-P Knock / Detonation Sensor with Pigtail Kit
    Knock Kit SNSR-159006Bosch Motorsports KS4-P Knock / Detonation Sensor with Connector Kit and Mounting Hardware
    Knock Kit SNSR-159007Bosch Motorsports KS4-P Knock / Detonation Sensor with Pigtail Kit and Mounting Hardware

    Specifications

    Parameter Value
    Number of Ways2
    GenderPlug/Male
    Terminal Size2.8mm
    Terminal TypeFlat
    Min. Wire Gauge20
    Max. Wire Gauge16
