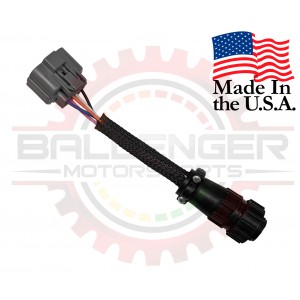

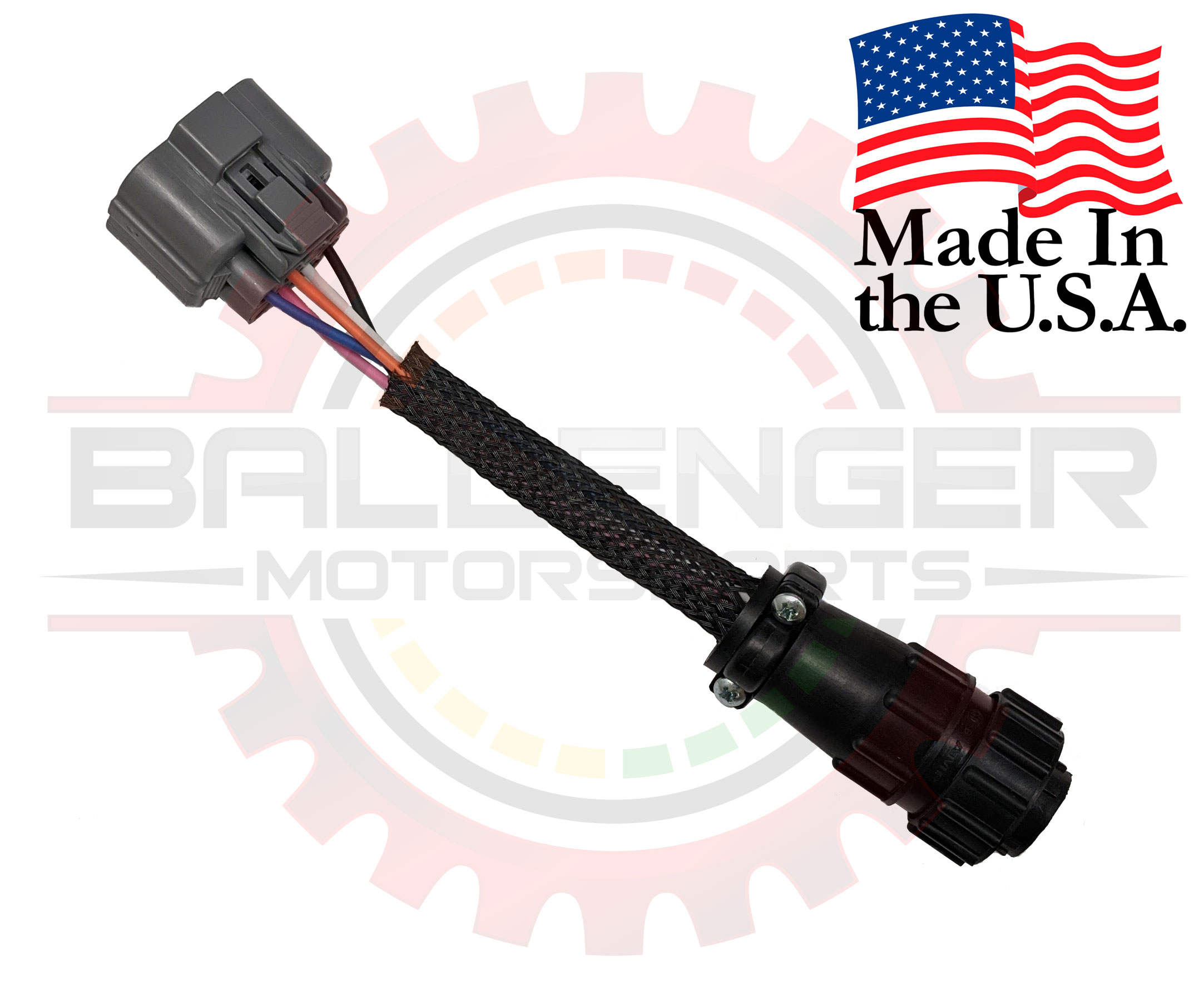

    NTK Sensor to Circular Connector Adapter For AFM1000 Part # CONN-86193

    NTK Sensor to Circular Connector Adapter For AFM1000 NTK Sensor to Circular Connector Adapter For AFM1000 NTK Sensor to Circular Connector Adapter For AFM1000 NTK Sensor to Circular Connector Adapter For AFM1000 NTK Sensor to Circular Connector Adapter For AFM1000
    Pricing
    1 + $69.99
    Information
    Bmotorsports Part # CONN-86193
    Availability In Stock
    Qty. Available 10
    Shipping Weight 0.25 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    This Adapter allows you to use a 24300 NTK Sensor with the Sumitomo connector with an ECM AFM1000 whose wiring harness has a Circular 9-pin AMP connector. Compatible with NTK 24300.

    If you are unsure about your application, check with us!

    DO NOT USE WITH INCOMPATIBLE ELECTRONICS!


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    Connector Housing CONN-00110NGK / NTK 8-way Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( connector and TPA )
    Terminals CONN-00115Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
    Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
    Cavity Plug CONN-00130Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
    Connector Kit CONN-001358 way NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
    Connector Pigtail CONN-85590NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
    Mating Parts
    Connector Housing CONN-00121Mate to NGK / NTK Connector assembly to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500 ( 8-way connector and TPA )
    Terminals CONN-11656Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
    Seals CONN-00119Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
    Cavity Plug CONN-00130Sumitomo MT / TS / HW / HX / DL / SL Sealed Series Cavity plug, brown, Toyota # 90980–09229
    Connector Kit CONN-00124Mate to NGK / NTK Connector Kit to adapt Bosch LSU Sensor for NGK Powerdex AFX & Ballenger Motorsports AFR500
    Connector Pigtail CONN-85588Mate to NGK / NTK Pigtail to adapt Bosch LSU Sensor for NGK Powerdex AFX

    Applications


    Specifications

    Parameter Value
    Number of Ways8
    Terminal Size2.3mm
    Terminal TypeFlat
    Min. Wire Gauge22
    Max. Wire Gauge16
