12 Way Hybrid Connector Plug Kit for Ignition Coil Banks Part # CONN-76100

12 Way Hybrid Connector Plug Kit for Ignition Coil Banks 12 Way Hybrid Connector Plug Kit for Ignition Coil Banks 12 Way Hybrid Connector Plug Kit for Ignition Coil Banks
Pricing
1 + $14.99
25 + $13.99
100 + $12.99
1000 + Call for Pricing
Information
Bmotorsports Part # CONN-76100
Availability In Stock
Shipping Weight 0.005 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

12 Way Hybrid Connector Plug Kit for Ignition Coil Banks. Connector kit. Terminals and seals are included.

4 high current, 25A+ terminals provide optimal current for extremely high power coils. 8 low current, 15A terminals provide positions for logic wires to coils.

Used on several GM applications such as LSA engines for the high power coil bank connectors.


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Connector Only CONN-10102512 Way Hybrid Connector Plug for Ignition Coil Banks
Connector TPA CONN-10102412 Way Hybrid Connector TPA
GT 150 Terminals CONN-56456GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
GT 150 Seals CONN-56555GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
GT 150 Cavity Plug CONN-56557GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
GT 280 Terminals (18-16AWG) CONN-56656GM Delphi / Packard - GT 280 Female Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
GT 280 Terminals (16-12AWG) CONN-56657GM Delphi / Packard - GT 280 Female Terminal, 16-12 gauge [1.5-3.00mm2] (Tin/Brass)
GT 280 Seals (18-16AWG) CONN-56756GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
GT 280 Seals (14-12AWG) CONN-55559GM Delphi / Packard - Weatherpack/Metripack 280 4.3-3.45mm Cable Seal, Blue - (12-10 gauge)
GT 280 Cavity Plug CONN-56759GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
Connector Kit CONN-7610012 Way Hybrid Connector Plug Kit for Ignition Coil Banks
Connector Pigtail CONN-8610012 Way Hybrid Connector Plug Pigtail for Ignition Coil Banks
Mating Connectors
Connector Only CONN-10102612 Way Hybrid Connector Receptacle for Ignition Coil Banks
Connector TPA CONN-10102412 Way Hybrid Connector TPA
GT 150 Terminals CONN-56460GM Delphi / Packard - GT 150 Male Terminal ( 20 - 16 gauge )
GT 150 Seals CONN-56555GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
GT 150 Cavity Plug CONN-56557GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
GT 280 Terminals (18-16AWG) CONN-56660GM Delphi / Packard - GT 280 Male Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
GT 280 Terminals (16-12AWG) CONN-56661GM Delphi / Packard - GT 280 Male Terminal, 16-12 gauge [1.50-3.00mm2] (Tin/Brass)
GT 280 Seals (18-16AWG) CONN-56756GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
GT 280 Seals (14-12AWG) CONN-55559GM Delphi / Packard - Weatherpack/Metripack 280 4.3-3.45mm Cable Seal, Blue - (12-10 gauge)
GT 280 Cavity Plug CONN-56759GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
Connector Kit CONN-7610112 Way Hybrid Connector Receptacle Kit for Ignition Coil Banks
Connector Pigtail CONN-8610112 Way Hybrid Connector Receptacle Pigtail for Ignition Coil Banks

Applications

Applications:

  • LSA Coil Bank Connector
  • many other not listed


Specifications

Parameter Value
Number of Ways12
GenderPlug/Male
Terminal Size2.8mm
Terminal Size (Secondary)1.5mm
Terminal TypeFlat
Terminal Type (Secondary)Flat
Min. Wire Gauge20
Max. Wire Gauge12

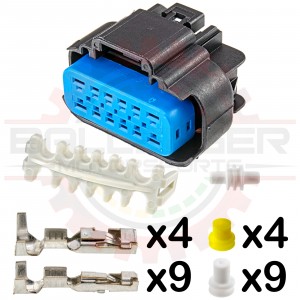

This product contains the following items:
GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )» 9 x GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
Part # CONN-56456
GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )» 9 x GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
Part # CONN-56555
GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm» 1 x GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
Part # CONN-56759
GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge» 4 x GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
Part # CONN-56756
GM Delphi / Packard - GT 280 Female Terminal, 16-12 gauge [1.5-3.00mm2] (Tin/Brass)» 4 x GM Delphi / Packard - GT 280 Female Terminal, 16-12 gauge [1.5-3.00mm2] (Tin/Brass)
Part # CONN-56657
12 Way Hybrid Connector Plug ONLY» 1 x 12 Way Hybrid Connector Plug ONLY
Part # CONN-101022
12 Way Hybrid Connector TPA» 1 x 12 Way Hybrid Connector TPA
Part # CONN-101024
