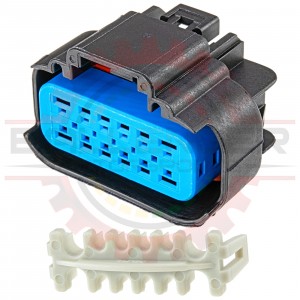

    12 Way Hybrid Connector Plug for Ignition Coil Banks Part # CONN-101025

    12 Way Hybrid Connector Plug for Ignition Coil Banks 12 Way Hybrid Connector Plug for Ignition Coil Banks 12 Way Hybrid Connector Plug for Ignition Coil Banks
    Pricing
    1 + $12.99
    25 + $11.99
    100 + $10.99
    1000 + Call for Pricing
    Information
    Bmotorsports Part # CONN-101025
    Availability In Stock
    Qty. Available 280
    Shipping Weight 0.005 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    12 Way Hybrid Connector Plug for Ignition Coil Banks. Connector ONLY. Terminals and seals not included.

    4 high current, 25A+ terminals provide optimal current for extremely high power coils. 8 low current, 15A terminals provide positions for logic wires to coils.

    Used on several GM applications such as LSA engines for the high power coil bank connectors.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Connectors
    Connector Only CONN-10102512 Way Hybrid Connector Plug for Ignition Coil Banks
    Connector TPA CONN-10102412 Way Hybrid Connector TPA
    GT 150 Terminals CONN-56456GM Delphi / Packard - GT 150 Female Terminal ( 20 - 16 gauge )
    GT 150 Seals CONN-56555GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
    GT 150 Cavity Plug CONN-56557GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
    GT 280 Terminals (18-16AWG) CONN-56656GM Delphi / Packard - GT 280 Female Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
    GT 280 Terminals (16-12AWG) CONN-56657GM Delphi / Packard - GT 280 Female Terminal, 16-12 gauge [1.5-3.00mm2] (Tin/Brass)
    GT 280 Seals (18-16AWG) CONN-56756GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
    GT 280 Seals (14-12AWG) CONN-55559GM Delphi / Packard - Weatherpack/Metripack 280 4.3-3.45mm Cable Seal, Blue - (14-12 gauge)
    GT 280 Cavity Plug CONN-56759GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
    Connector Kit CONN-7610012 Way Hybrid Connector Plug Kit for Ignition Coil Banks
    Connector Pigtail CONN-8610012 Way Hybrid Connector Plug Pigtail for Ignition Coil Banks
    Mating Connectors
    Connector Only CONN-10102612 Way Hybrid Connector Receptacle for Ignition Coil Banks
    Connector TPA CONN-10102412 Way Hybrid Connector TPA
    GT 150 Terminals CONN-56460GM Delphi / Packard - GT 150 Male Terminal ( 20 - 16 gauge )
    GT 150 Seals CONN-56555GM Delphi / Packard - GT 150 Cable Seal, White ( 24 - 18 gauge )
    GT 150 Cavity Plug CONN-56557GM Delphi / Packard - GT 150 Cavity Plug, Green, 4.0mm
    GT 280 Terminals (18-16AWG) CONN-56660GM Delphi / Packard - GT 280 Male Terminal, 18-16 gauge [.75-1.00mm2] (Tin/Brass)
    GT 280 Terminals (16-12AWG) CONN-56661GM Delphi / Packard - GT 280 Male Terminal, 16-12 gauge [1.50-3.00mm2] (Tin/Brass)
    GT 280 Seals (18-16AWG) CONN-56756GM Delphi / Packard - GT 280 1.86-2.25mm Cable Seal, Yellow - 18-16 gauge
    GT 280 Seals (14-12AWG) CONN-55559GM Delphi / Packard - Weatherpack/Metripack 280 4.3-3.45mm Cable Seal, Blue - (14-12 gauge)
    GT 280 Cavity Plug CONN-56759GM Delphi / Packard - GT 280 Cavity Plug, White, 5.8mm
    Connector Kit CONN-7610112 Way Hybrid Connector Receptacle Kit for Ignition Coil Banks
    Connector Pigtail CONN-8610112 Way Hybrid Connector Receptacle Pigtail for Ignition Coil Banks

    Applications

    Applications:

    • LSA Coil Bank Connector
    • many other not listed



    This product contains the following items:
    12 Way Hybrid Connector Plug ONLY» 1 x 12 Way Hybrid Connector Plug ONLY
    Part # CONN-101022
    12 Way Hybrid Connector TPA» 1 x 12 Way Hybrid Connector TPA
    Part # CONN-101024
