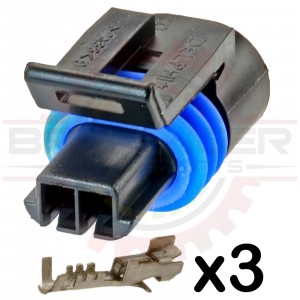

GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Kit Part # CONN-75556

GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Kit GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Kit GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Kit GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Kit
Pricing
1 + $6.49
25 + $5.99
50 + $5.75
100 + $5.49
1000 + Call for Pricing
Information
Bmotorsports Part # CONN-75556
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

This connector is obsolete (but still offered for sale). For the less expensive & functionally superior replacement connector, see the Associated & Mating Parts Tab.

This is a connector kit, Terminals and seals ARE included.

Equivalent to St. Clair part # 300139


Associated & Mating Parts

Relationship Part # Description
Preferred Connector (Shrouded with rear release):
Connector Only CONN-51662GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75641GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
Pigtail CONN-85641GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for CLT/VSS
Non-preferred Connector (Unshrouded with front release):
Connector Only CONN-51663GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75642GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
Pigtail CONN-85642GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female pigtail for CLT/VSS
Obsoleted Connector (still available for sale):
Connector Only CONN-51655GM Delphi / Packard ECT / CLT / TFT / VSS / ISS / OSS Sensor 2 way Connector (connector only)
Terminals CONN-56155GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]
Connector Kit CONN-75556GM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Kit
Pigtail CONN-85556GM Delphi / Packard ECT / CLT / TFT / VSS / ISS / OSS Sensor Connector Pigtail
Mating Connector
Connector Only CONN-50559GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly for CLT/VSS
Terminals CONN-56466GM Delphi / Packard - GT 150 3.5mm Centerline Male Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75646GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector Kit for CLT/VSS
Connector Pigtail CONN-85646GM Delphi / Packard - 2-way GT 150 3.5mm centerline (sensor side) sealed connector Pigtail for CLT/VSS
Extensions
ECT / CLT / TFT Preferred Wiring Extension CONN-85645-shroudGM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Shrouded connectors
ECT / CLT / TFT Wiring Extension CONN-85645-unshroudGM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Un-shrouded connector
Mating sensors:
3/8 NPT ECT / CLT / TFT SNSR-02056GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979
M12 x 1.5 ECT / CLT / TFT SNSR-02059GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5
3/8 NPT IAT / MAT / ACT Plastic SNSR-02055GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector

Specifications

Parameter Value
Number of Ways2
GenderPlug/Male
Terminal Size1.5mm
Terminal TypeFlat
Min. Wire Gauge22
Max. Wire Gauge18



This product contains the following items:
GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]» 3 x GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]
Part # CONN-56155
GM Delphi / Packard ECT / CLT / TFT / VSS / ISS / OSS Sensor 2 way Connector (connector only)» 1 x GM Delphi / Packard ECT / CLT / TFT / VSS / ISS / OSS Sensor 2 way Connector (connector only)
Part # CONN-51655
