GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5 Part # SNSR-02059

GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5 GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5 GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5
Pricing
1 + $15.00
5 + $14.49
10 + $13.99
25 + $12.99
50 + $9.99
100 + $7.99
500 + $6.99
Information
Bmotorsports Part # SNSR-02059
Availability In Stock
Shipping Weight 0.09 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

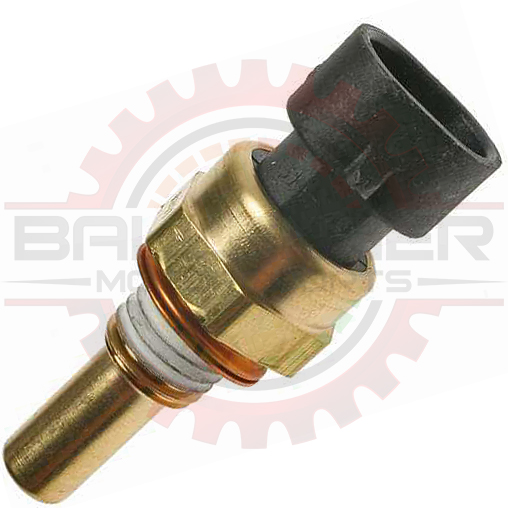

GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5

This genuine Delphi Fluid Temperature Sensor is used in a wide variety of applications and may also be used in generic applications requiring an M12 x 1.5 thread.

FEATURES:

  • Genuine Delphi Sensor
  • Robust Design
  • Cost Effective
  • 100% Calibration Certified
  • Thermistor Technology
  • Typical Voltage Supply: 5V DC
  • Operating Temperature: -40 C to 135 C
  • Sensor Body Material: Brass
  • Hex Size: 18.90 mm (3/4")
  • Thread Size: M12 x 1.5

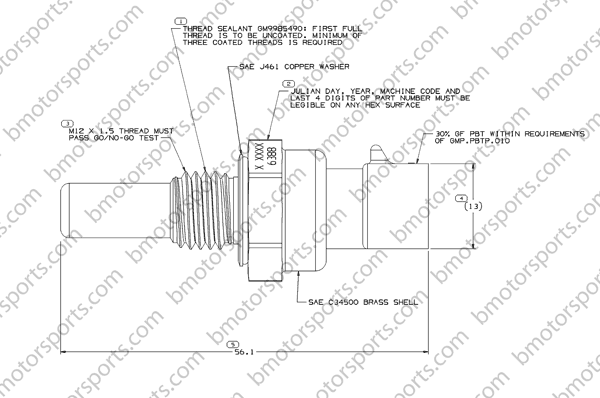

  • Thread Sealant: GM09985490
  • Sealing Pressure: 145 kPa
  • Thermal Time Constant: ** 18 to 24 seconds
  • Dissipation Constant: * 24 mW/degC
Cross References:
  • Motec: 55001
  • AC Delco: 213-4333
  • AC Delco: 213-953
  • ACDelco 213-4514
  • GM: 15326388
  • GM: 12608814
  • Delphi: TS10076
  • Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc.
  • VERY common sensor with hundreds of other applications


Associated & Mating Parts

Relationship Part # Description
Associated Parts:
3/8 NPT ECT / CLT / TFT SNSR-02056GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979
M12 x 1.5 ECT / CLT / TFT SNSR-02059GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5
3/8 NPT IAT / MAT / ACT Plastic SNSR-02055GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector
Preferred Mating Connector (Shrouded with rear release):
Connector Only CONN-51662GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75641GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
Connector Pigtail CONN-85641GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for CLT/VSS
Non-preferred Mating Connector (Unshrouded with front release):
Connector Only CONN-51663GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit CONN-75642GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
Connector Pigtail CONN-85642GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female pigtail for CLT/VSS
Extensions
ECT / CLT / TFT Preferred Wiring Extension CONN-85645-shroudGM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Shrouded connectors
ECT / CLT / TFT Wiring Extension CONN-85645-unshroudGM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Un-shrouded connector
