4 Way Ford / Mazda MAP Pressure Sensor Connector Kit Part # CONN-75856

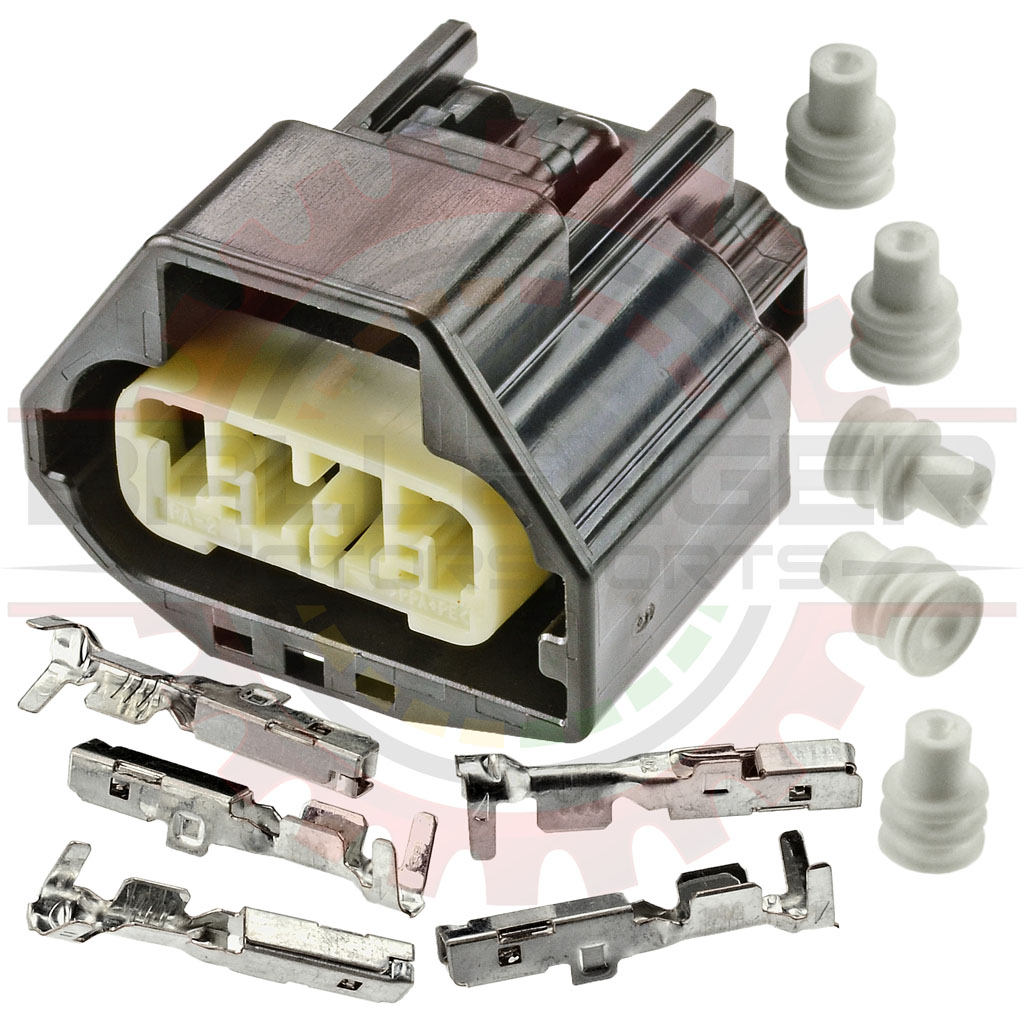

4 Way Ford / Mazda MAP Pressure Sensor Connector Kit 4 Way Ford / Mazda MAP Pressure Sensor Connector Kit 4 Way Ford / Mazda MAP Pressure Sensor Connector Kit
Pricing
1 + $10.99
50 + $9.99
100 + $8.99
1000 + Call for Pricing
Information
Bmotorsports Part # CONN-75856
Availability In Stock
Shipping Weight 0.017 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

4 Way Ford / Mazda MAP Pressure Sensor Connector Kit. Connector Kit. Terminals and seals ARE included.

Connects to the Bosch sensor sometimes also referred to as the Bosch TMAP Sensor due to the additional of a temperature sensor combined with the MAP sensor. Fits the throttle position sensors on Ford 4.0L Cologne V6's from 2003-2011. Specific to Ford & Mazda vehicles, not for other platforms. Applications Include:

  • Mazdaspeed 3
  • Mazdaspeed 6
  • Mazda CX-7
  • 2005-2010 Ford Mustang 4.0L V6 TPS connector
  • 2003-2011 Ford Explorer 4.0L V6 TPS connector


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector Only CONN-1007044 Way Ford / Mazda MAP Pressure Sensor Connector
Terminals CONN-100481Ford / Yazaki 1.5 Terminal, 18-16AWG
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Kit CONN-758564 Way Ford / Mazda MAP Pressure Sensor Connector Kit
Connector Pigtail CONN-858564 Way Ford / Mazda MAP Pressure Sensor Connector Pigtail
Mating Parts
Connector Only CONN-100720Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector
Terminals CONN-56260GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Kit CONN-75851Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector Kit
Connector Pigtail CONN-85851Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector Pigtail
Extension
Ford / Mazda TMAP Extension CONN-858774 Way Ford / Mazda MAP Pressure Sensor Extension
Adapters
Ford / Mazda TMAP to Bosch TMAP Adapter CONN-85824Ford / Mazda TMAP to Bosch TMAP Adapter

Applications

Applications Include:

  • Mazdaspeed 3
  • Mazdaspeed 6
  • Mazda CX-7
  • 2007 - 2014 Ford Mustang
  • Ford Falcon AU2 / AU3 / BA / BF T-MAP Sensor Connector
  • 2005-2010 Ford Mustang 4.0L V6 TPS connector
  • 2003-2011 Ford Explorer 4.0L V6 TPS connector
  • MANY other Ford & Mazda Applications!
