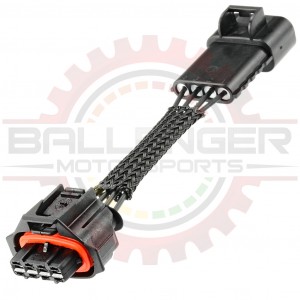

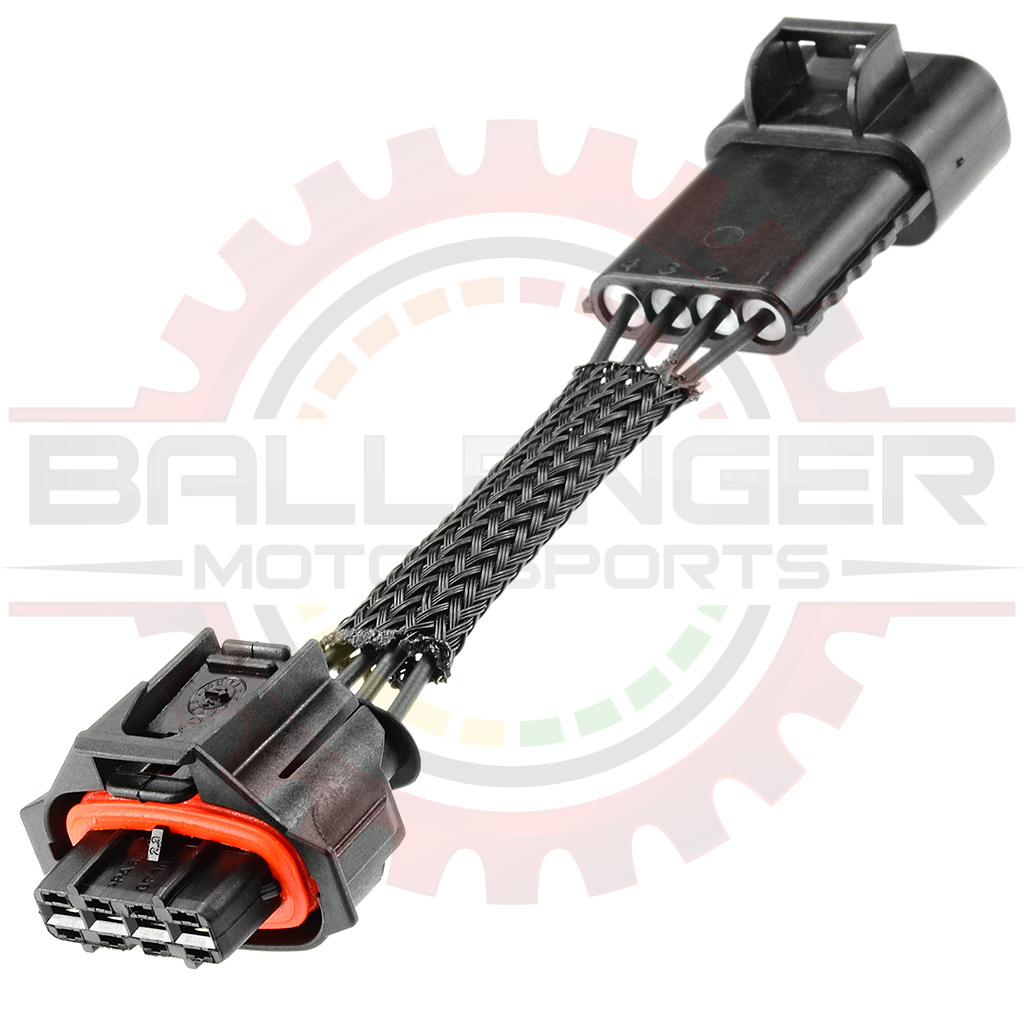

    Ford / Mazda TMAP to Bosch TMAP Adapter Part # CONN-85824

    Ford / Mazda TMAP to Bosch TMAP Adapter Ford / Mazda TMAP to Bosch TMAP Adapter
    Pricing
    1 + $39.99
    50 + $24.99
    250 + $23.99
    1000 + Call for Pricing
    Information
    Bmotorsports Part # CONN-85824
    Availability In Stock
    Shipping Weight 0.05 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    Ford / Mazda TMAP to Bosch TMAP Adapter

    This adapter allows Mazdaspeed 3, Mazdaspeed 6, & CX-7 owners to utilize the standard Bosch TMAP sensors available. We carry the whole line of TMAP sensors as listed in the mating parts tab. Note that any change in the TMAP sensor will require retuning so that the ECU recognizes the correct pressure readings.

    Applications Include:

    • Mazdaspeed 3
    • Mazdaspeed 6
    • Mazda CX-7


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    Connector only CONN-1002454-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
    Terminals CONN-11561Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Seals CONN-11562Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Connector kit CONN-757224-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
    Connector Pigtail CONN-857224-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
    Connector only CONN-100720Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector
    Terminals CONN-56260GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
    Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Connector kit CONN-75851Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector Kit
    Connector Pigtail CONN-85851Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector Pigtail
    Bosch TMap Extension CONN-858274 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
    Mating Parts
    Connector only CONN-1005924 Way Sealed Receptacle Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
    Terminals CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
    Seals CONN-11562Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Connector kit CONN-758264 Way Sealed Receptacle Bosch BSK Connector Kit for Bosch MAP Sensor
    Connector pigtail CONN-858264 Way Sealed Receptacle Bosch BSK Connector Pigtail for Bosch MAP Sensor
    Terminals CONN-100481Ford / Yazaki 1.5 Terminal, 18-16AWG
    Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Connector only CONN-1007044 Way Ford / Mazda MAP Pressure Sensor Connector
    Connector kit CONN-758564 Way Ford / Mazda MAP Pressure Sensor Connector Kit
    Connector pigtail CONN-858564 Way Ford / Mazda MAP Pressure Sensor Connector Pigtail
    Mating Sensors
    Bosch 1 Bar TMap MAP Sensor SNSR-03091Bosch 1 Bar TMap Map Sensor with IAT
    Bosch 2.5 Bar TMap MAP Sensor SNSR-03083Bosch 2.5 Bar TMap Map Sensor with IAT
    Bosch 3 Bar TMap MAP Sensor SNSR-03085Bosch 3 Bar TMap Map Sensor with IAT
    Bosch 3.5 Bar TMap MAP Sensor SNSR-03088Bosch 3.5 Bar TMap Map Sensor with IAT
    Bosch 4 Bar TMap MAP Sensor SNSR-03089Bosch 4 Bar TMap Map Sensor with IAT

    Specifications

    Parameter Value
    Number of Ways4
    Terminal Size2.8mm
    Terminal TypeFlat



    This product contains the following items:
    Labor $0.25/minute» 30 x Labor $0.25/minute
    Part # LABR-00001
    Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)» 4 x Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Part # CONN-11561
    Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)» 4 x Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Part # CONN-11562
    18AWG Automotive TXL Wire Black» 2 x 18AWG Automotive TXL Wire Black
    Part # WIRE-00459s
    GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
    Part # CONN-56260
    GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white» 4 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Part # CONN-56057
    3/8in. Diameter Clean Cut Expandable Braided Sleeving, Black» 1 x 3/8in. Diameter Clean Cut Expandable Braided Sleeving, Black
    Part # WIRE-57557
    4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)» 1 x 4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
    Part # CONN-100245
    Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector» 1 x Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector
    Part # CONN-100720
