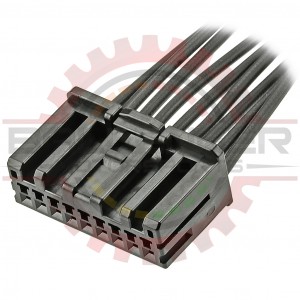

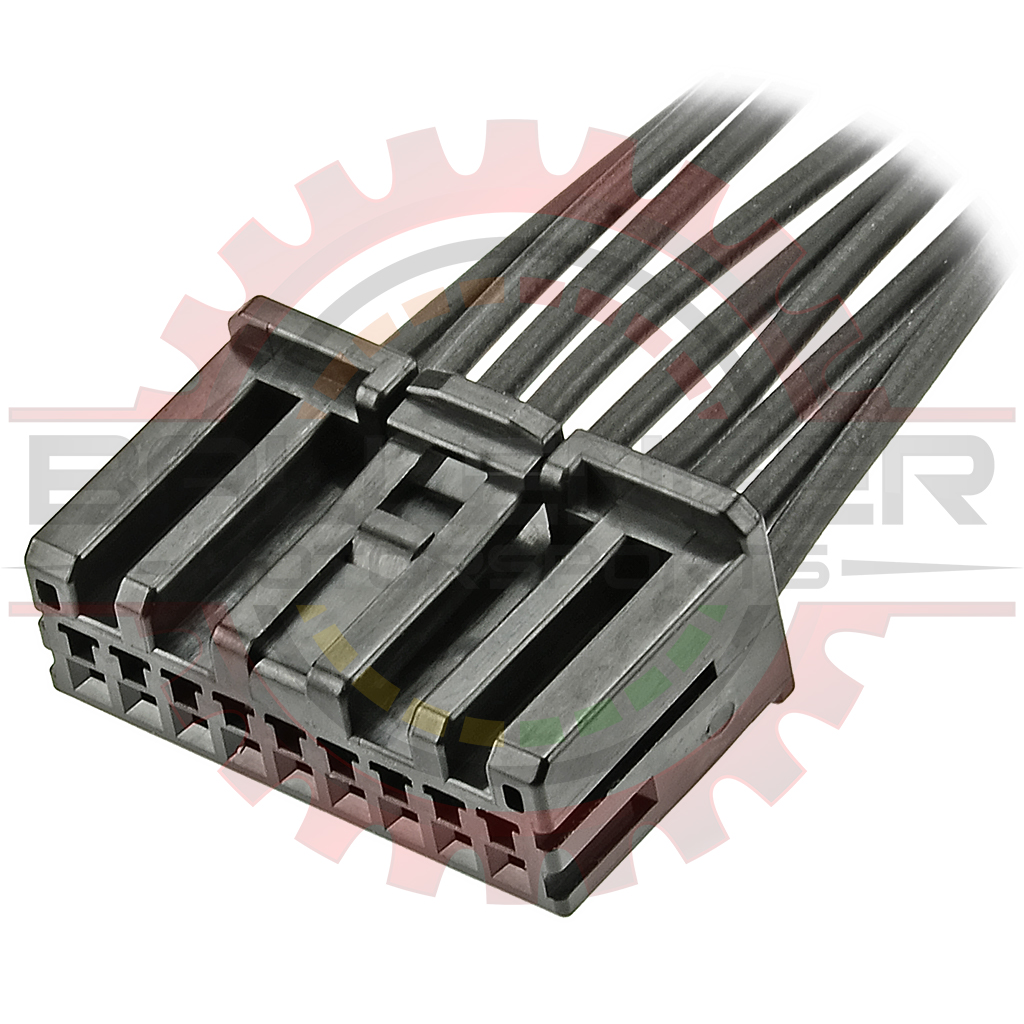

    NTK AFRM Controller Connector Pigtail Part # CONN-85850

    NTK AFRM Controller Connector Pigtail NTK AFRM Controller Connector Pigtail NTK AFRM Controller Connector Pigtail
    Pricing
    1 + $12.99
    Information
    Bmotorsports Part # CONN-85850
    Availability In Stock
    Shipping Weight 0.15 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    Another Ballenger Motorsports Exclusive!

    NTK AFRM Controller Connector Pigtail. Preassembled and includes connector, lock, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.


    Associated & Mating Parts

    Relationship Part # Description
    Controller
    NTK AFRM SNSR-01005NTK AFRM - Air Fuel Ratio Monitor Kit - Wideband O2 - PN 96604 - w/ NTK Sensor (replaced by SNSR-01008)
    Associated Parts
    NTK AFRM Replacement Harness SNSR-01007Replacement Wiring Harness for NTK AFRM
    Sensor Plug Connector Only CONN-1006695 Way Connector Plug for NTK AFRM (harness side)
    Sensor Plug Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
    Sensor Plug Seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
    Sensor Plug Connector Kit CONN-758225 Way Connector Plug Kit for NTK AFRM (harness side)
    Sensor Plug Connector Pigtail CONN-858225 Way Connector Plug Pigtail for NTK AFRM (harness side)
    Sensor Receptacle Connector Only CONN-1006705 Way Connector Receptacle for NTK AFRM (sensor side)
    Sensor Receptacle Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
    Sensor Receptacle Seals CONN-00146Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
    Sensor Receptacle Connector Kit CONN-758235 Way Connector Receptacle Kit for NTK AFRM (sensor side)
    Sensor Receptacle Connector Pigtail CONN-858235 Way Connector Receptacle Pigtail for NTK AFRM (sensor side)
    NTK AFRM Controller Connector Only CONN-100681NTK AFRM Controller Connector Only
    NTK AFRM Controller Connector Terminals CONN-100682NTK AFRM Controller Connector Terminals
    NTK AFRM Controller Connector Kit CONN-75850NTK AFRM Controller Connector Kit
    NTK AFRM Controller Connector Pigtail CONN-85850NTK AFRM Controller Connector Pigtail

    Specifications

    Parameter Value
    Number of Ways9
    GenderPlug/Male
    Terminal Size0.63mm
    Terminal TypeFlat



    This product contains the following items:
    20AWG Automotive TXL Wire Black» 9 x 20AWG Automotive TXL Wire Black
    Part # WIRE-00458S
    Labor $0.25/minute» 30 x Labor $0.25/minute
    Part # LABR-00001
    NTK AFRM Controller Connector Terminals» 9 x NTK AFRM Controller Connector Terminals
    Part # CONN-100682
    NTK AFRM Controller Connector Only» 1 x NTK AFRM Controller Connector Only
    Part # CONN-100681
