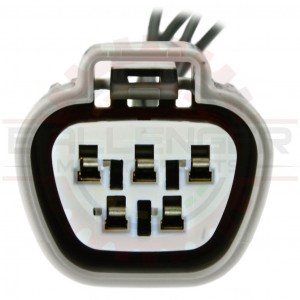

5 Way Connector Plug Pigtail for NTK AFRM (harness side) Part # CONN-85822

5 Way Connector Plug Pigtail for NTK AFRM (harness side) 5 Way Connector Plug Pigtail for NTK AFRM (harness side) 5 Way Connector Plug Pigtail for NTK AFRM (harness side)
Pricing
1 + $8.99
25 + $8.49
50 + $8.25
100 + $7.99
1000 + $6.99
Information
Bmotorsports Part # CONN-85822
Availability In Stock
Shipping Weight 0.1 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

5 Way Connector Plug Pigtail for NTK AFRM (harness side). Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Used on the NTK AFRM for the oxygen sensor connector. Also used in some Toyota applications.


Applications

Applications:

  • NTK AFRM Sensor
  • Some Toyota vehicle applications
  • Some Japanese wiper motor applications
  • 350z & 350z wiper motor connector
  • Subaru TGV Connector
  • Subaru Tumble Generator Valve Connector


Specifications

Parameter Value
Number of Ways5
GenderPlug/Male
Terminal Size2.3mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge16



This product contains the following items:
Labor $0.25/minute» 25 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 5 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 5 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )» 5 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Part # CONN-11856
5 Way Connector Plug for NTK AFRM (harness side)» 1 x 5 Way Connector Plug for NTK AFRM (harness side)
Part # CONN-100669
