GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug for some Delphi TPS & Ignition Coils (mushroom keyway)	Part # CONN-52210

Pricing
1 +	$7.99
25 +	$7.49
100 +	$6.99
500 +	$3.99
1000 +	$3.25
Information
Bmotorsports Part #	CONN-52210
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

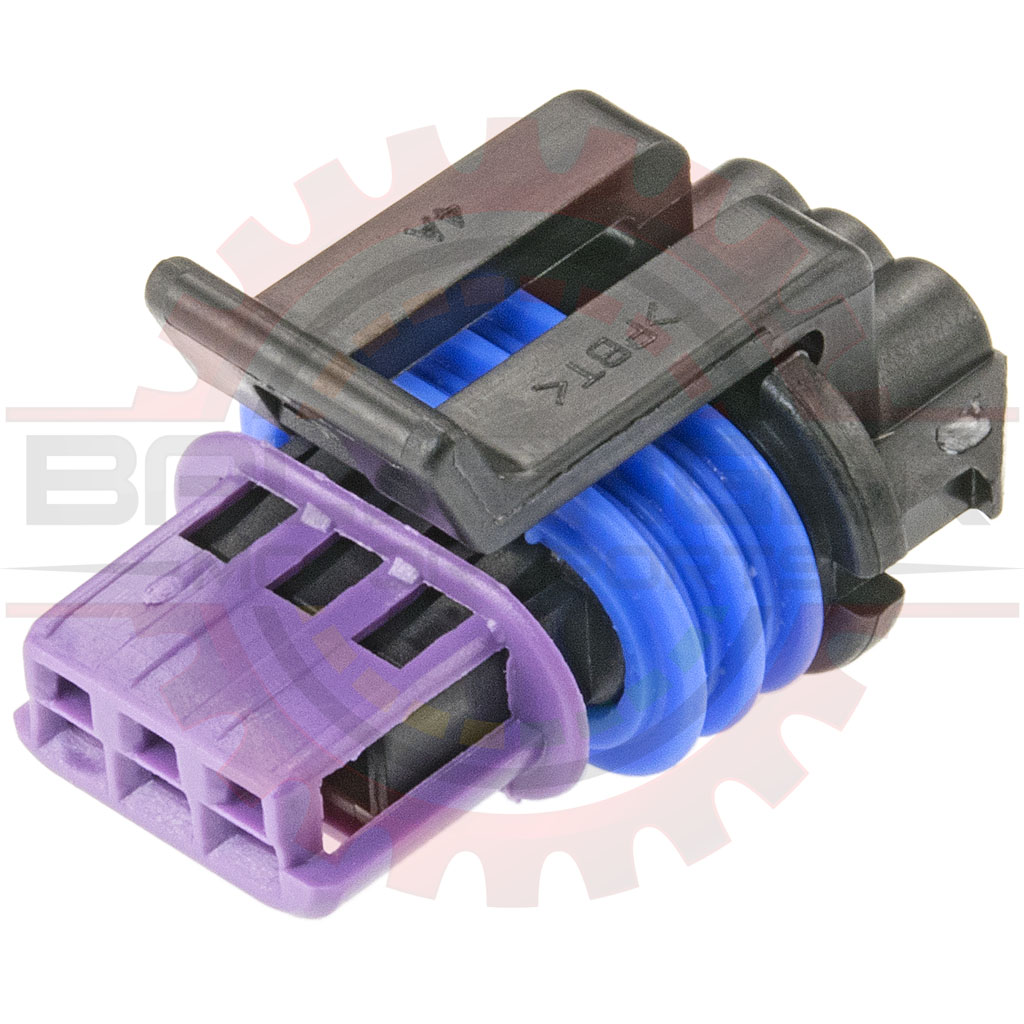

GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug for some Delphi TPS & Ignition Coils (mushroom keyway). Connector and Lock ONLY. Terminals and seals not included.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-52210	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug for some Delphi TPS & Ignition Coils (mushroom keyway)
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75731	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug Kit for some Delphi TPS & Ignition Coils (mushroom keyway)
Connector Pigtail	CONN-85731	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug Pigtail for some Delphi TPS & Ignition Coils (mushroom keyway)
Mating Parts
Terminals	CONN-56466	GM Delphi / Packard - GT 150 3.5mm Centerline Male Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Connector Housing	CONN-100726	3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector
Connector Kit	CONN-75860	3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Kit
Pigtail	CONN-85860	3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Pigtail
Extensions

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 18

Used In

Part #	Description
CONN-75731	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug Kit for some Delphi TPS & Ignition Coils (mushroom keyway)
CONN-85731	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug Pigtail for some Delphi TPS & Ignition Coils (mushroom keyway)
