LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug Pigtail	Part # CONN-85601

Pricing
1 +	$7.99
5 +	$7.75
25 +	$7.49
50 +	$7.25
100 +	$6.99
1000 +	$4.99
Information
Bmotorsports Part #	CONN-85601
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

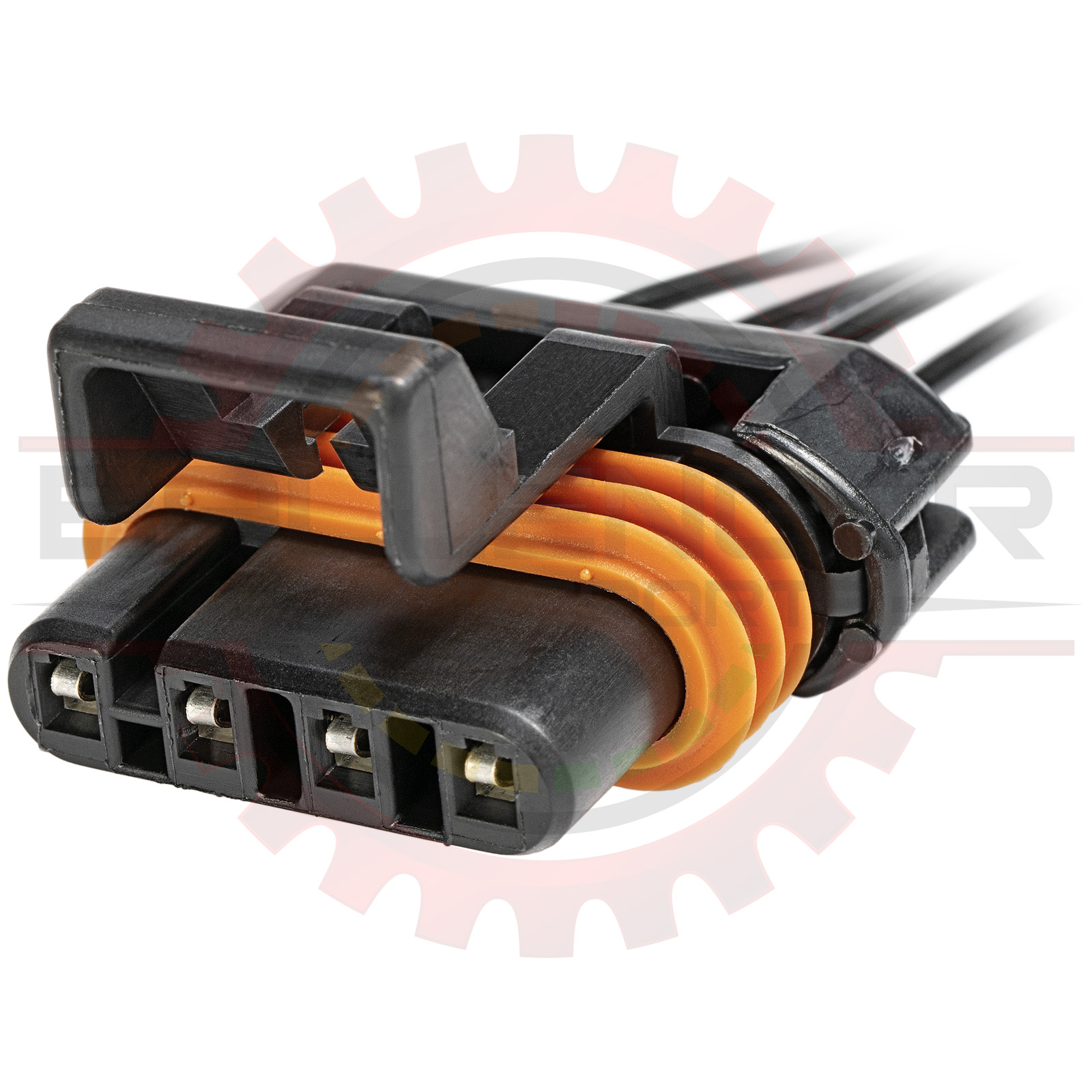

LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug Pigtail. Connector Pigtail. A completed pigtail is provided.

Applications:

Some LS1, LS6 ignition Coils
MANY more GM, MSD, Accel and other coils

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Only	CONN-02099	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug assembly
Seal	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Terminal	CONN-56256	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Connector Kit	CONN-75601	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug kit
Connector Pigtail	CONN-85601	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Plug Pigtail
Associated Parts
Connector Only	CONN-02098	GM Delphi / Packard - 4 way metripack 150 female connector assembly, black ( Connector + TPA )
Terminal	CONN-56260	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seal	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
16AWG Seal	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Connector Kit	CONN-75597	GM Delphi / Packard - 4 way metripack 150 female connector assembly Kit, black
Connector Pigtail	CONN-85597	LS1 / LS6 Ignition Coil and some later model Corvette O2 Sensor connector Receptacle Pigtail
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Extension
Extension	CONN-85707	O2 extender / coilpack extender

Applications

Some LS1, LS6 ignition Coils
MANY more GM, MSD, Accel and other coils

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge ) Part # CONN-56256
	» 4 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 4 x 18AWG Automotive Teflon Mil-Spec Wire Black Part # WIRE-00489s
	» 1 x GM Delphi / Packard - TPA for 4 way flat metripack 150 connector Part # CONN-02097
	» 1 x GM Delphi / Packard - 4 way metripack 150 male connector Part # CONN-02096
