3 Way Toyota 90980-11145 Receptacle Mate Connector Kit	Part # CONN-76249

Pricing
1 +	$7.69
25 +	$7.49
50 +	$7.25
100 +	$7.09
Information
Bmotorsports Part #	CONN-76249
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

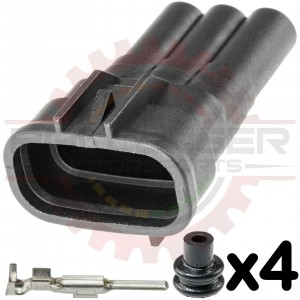

3 Way Toyota 90980-11145 Receptacle Mate Connector Kit. Connector Kit. Terminals and seals included.

***This connector is often confused with other TPS and manifold pressure sensor connectors. This connector has an offset keyway, a different connector lock release length, as well as the terminals having a 180° rotation in the housing, making this incompatible with other such devices.***

MATE to Toyota # 90980-11145.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101335	3 Way Sumitomo TS Receptacle Mate to Toyota IAC Connector 90980-11145
Connector Kit	CONN-76249	3 Way Toyota 90980-11145 Receptacle Mate Connector Kit
Connector Pigtail	CONN-86249	3 Way Toyota 90980-11145 Receptacle Mate Connector Pigtail
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101137	3 Way Sumitomo TS Plug Housing for Idle Air Control / Idle Speed Solenoids 90980-11145
Connector Kit	CONN-76125	3 Way Sumitomo TS Plug Connector Kit for Idle Air Control / Idle Speed Solenoids 90980-11145
Connector Pigtail	CONN-86125	3 Way Sumitomo TS Plug Connector Pigtail for Idle Air Control / Idle Speed Solenoids 90980-11145

Applications

Toyota 1ZZFE, 2ZZGE, 1MZFE VVT-i, IAC connector
Toyota 90980-11145
Many applications not listed here

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year	Make	Model	Engine / Trim	Application
2000	Chevrolet	Prizm	1.8L	IAC

Specifications

Parameter Value
Number of Ways 3
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
