3 Way Sumitomo Plug for Toyota VSS 90980-11143, Duramax Cam Position Sensor	Part # CONN-101169

Pricing
1 +	$8.99
25 +	$8.49
50 +	$8.25
100 +	$8.09
Information
Bmotorsports Part #	CONN-101169
Availability	Special Order
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

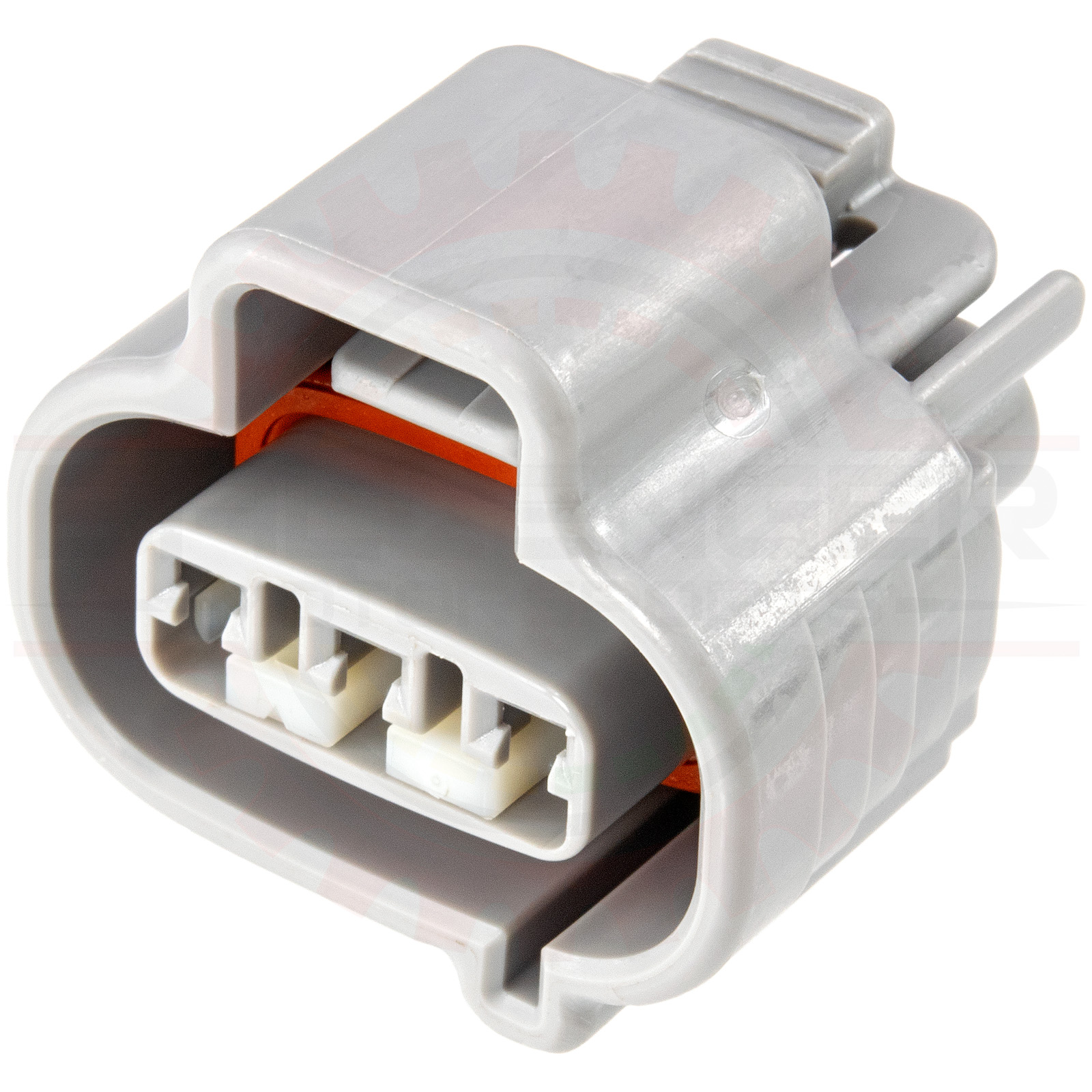

3 Way Sumitomo Plug for Toyota VSS 90980-11143, Duramax Cam Position Sensor. Connector ONLY. Terminals and seals are not included.

***This connector is the TS replacement for the older MT version, 6189-0027. The old part continues to be available as CONN-100299, though as special order. The new connector boasts a lower base cost over the MT version***

Toyota # 90980-11143

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector Housing	CONN-101169	3 Way Sumitomo Plug for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75698	3 Way Sumitomo Connector Plug Kit for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Connector pigtail	CONN-85698	3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor
Old MT Series Parts
Connector Housing	CONN-100299	Sumitomo MT 3 way Plug Housing 6189-0027 (Connector ONLY)
Terminals	CONN-11656	Injector Connector Terminal (22 - 16 gauge) [heat resistant copper alloy]
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75742	Sumitomo MT 3 way Plug Housing Kit 6189-0027
Connector pigtail	CONN-85742	Sumitomo MT 3 way Plug Housing Pigtail 6189-0027

Applications

2004 - 2012 Duramax Diesel Cam Position Sensor
Equivalent to ACDelco Pigtail PT2547 & GM Pigtail Part# 13576413
Chevrolet Express 2500 from 2006-2011
Chevrolet Express 3500 from 2006-2011
Chevrolet Express 4500 from 2009-2011
Chevrolet Silverado 2500 HD from 2004-2012
Chevrolet Silverado 3500 from 2004-2005
Chevrolet Silverado 3500 HD from 2011-2012
GMC Savana 2500 from 2006-2011
GMC Savana 3500 from 2006-2011
GMC Savana 4500 from 2009-2011
GMC Sierra 2500 HD from 2004-2012
GMC Sierra 3500 from 2004-2005
GMC Sierra 3500 HD from 2011-2012
Many other applications not listed

Specifications

Parameter Value
Number of Ways 3
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Used In

Part #	Description
CONN-75698	3 Way Sumitomo Connector Plug Kit for Toyota VSS 90980-11143, Duramax Cam Position Sensor
CONN-85698	3 Way Sumitomo Connector Plug Pigtail for Toyota VSS 90980-11143, Duramax Cam Position Sensor
