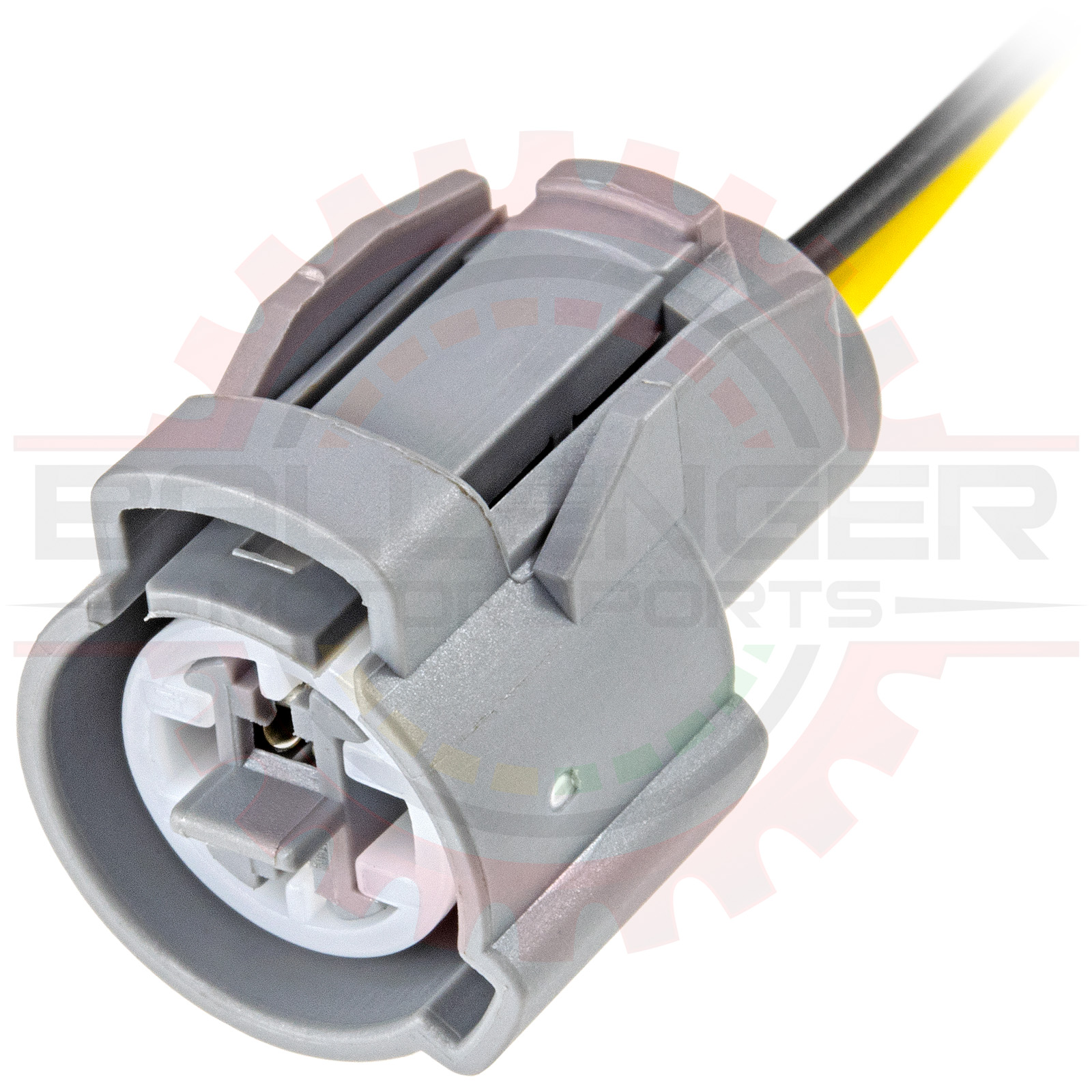

    2-way HW Connector Plug Pigtail for Honda VTEC Spool Valve Part # CONN-86110

    2-way HW Connector Plug Pigtail for Honda VTEC Spool Valve 2-way HW Connector Plug Pigtail for Honda VTEC Spool Valve 2-way HW Connector Plug Pigtail for Honda VTEC Spool Valve
    Pricing
    1 + $10.99
    25 + $9.99
    100 + $9.49
    1000 + Call for Pricing
    Information
    Bmotorsports Part # CONN-86110
    Availability In Stock
    Shipping Weight 0.005 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    2-way Connector Plug Pigtail for Honda VTEC Spool Valve. Connector Pigtail. A completed pigtail is provided.

    This connector uses push to seat terminals and a rear seal. You must load the seal onto the wire and then perform your crimps. You can then push the terminals into the connector housing, and then push the seal into the rear of the connector. Perform a push-pull test to check that the terminals are seated properly, and engage the front secondary terminal lock by pushing it down.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Connectors
    Connector Only CONN-1010702-way HW Connector Plug for Honda VTEC Spool Valve
    Terminals CONN-100989Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170
    Connector Kit CONN-761102-way HW Connector Plug Kit for Honda VTEC Spool Valve
    Connector Pigtail CONN-861102-way HW Connector Plug Pigtail for Honda VTEC Spool Valve

    Applications

    Applications:

    • Honda Acura VTEC Spool Valve Connector


    Specifications

    Parameter Value
    Number of Ways2
    GenderPlug/Male
    Terminal Size2.3mm
    Terminal TypeFlat
    Min. Wire Gauge20
    Max. Wire Gauge16



    This product contains the following items:
    Labor $0.25/minute» 15 x Labor $0.25/minute
    Part # LABR-00001
    18AWG Automotive TXL Wire Black» 1 x 18AWG Automotive TXL Wire Black
    Part # WIRE-00459s
    18AWG Automotive TXL Wire Yellow» 1 x 18AWG Automotive TXL Wire Yellow
    Part # WIRE-04459s
    Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170» 2 x Sumitomo 2.3mm Unsealed Female terminal for Toyota Repair Wire 82998-12170
    Part # CONN-100989
    2-way HW Connector Plug for Honda VTEC Spool Valve» 1 x 2-way HW Connector Plug for Honda VTEC Spool Valve
    Part # CONN-101070
