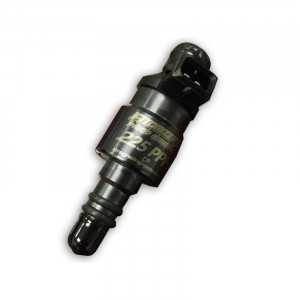

    Atomizer 3 Billet Racing Injector Part # MOTR-05066

    Atomizer 3 Billet Racing Injector Atomizer 3 Billet Racing Injector
    Pricing
    1 + $156.25
    Information
    Bmotorsports Part # MOTR-05066
    Availability In Stock
    Shipping Weight 0.35 Lbs.
    Shipping Location VA   (Shipping Info)
    Options
    Outlet Fitting
    Tip Style
    Flow Rate
    Inlet Fitting
    Ship Estimator Quantity:

    Description

    Atomizer 3 Billet Racing Injector

    Extreme Flow for your high horsepower applications!

    All injectors are default extended tip. Only the 100-235 lb/hr are able to select standard tip option.

    These injectors flow 100 lbs/hr at 43.5 PSI ( 3 BAR )! These units are low-impedance and require peak and hold injector drivers or additional resistors for saturation drivers. Despite the high flow rate, they are linear and controllable at low pulse widths compared to other extreme flow injectors!



    Features:

    • Race Specific Extreme Flow Design
    • Excellent response characteristics
    • Robust Proprietary, TiN coated Design
    • Low Impedance
    • Fits in most many applications
    Specifications:
    • Coil Resistance: 1.6 Ohms / Low Impedance / Low-Z (ECM peak & hold driver or modifications required)
    • Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 100lb/hr = 1050cc/min
    • Turn on time: 1.5ms
    • Connector: Bosch EV1
    • Series: Atomizer 3
    • Orifice Type: Atomizer Disc
    • Spray Pattern: Large Fog w/45 degree Vapor Cone Pattern

    Warranty:


    Associated and Mating Parts

    ## Associated Parts Connector Only :: CONN-10659 Terminals :: CONN-10575 Seals :: CONN-11562 Alternate Seals :: CONN-56057 Connector Kit :: CONN-75660 Pigtail :: CONN-85660


    Specifications

    Specifications:

    • Coil Resistance: 1.6 Ohms / Low Impedance / Low-Z (ECM peak & hold driver or modifications required)
    • Static Flow Rate @ 43.5PSI ( 300kPa ) w/Gas: 100 lb/hr = 1050 cc/min
    • Turn on time: 1.5ms
    • Connector: Bosch EV1
    • Series: Atomizer Disc
    • Orifice Type: Atomizer Disc
    • Spray Pattern: Large Fog w/45 degree Vapor Cone Pattern


    Applications
