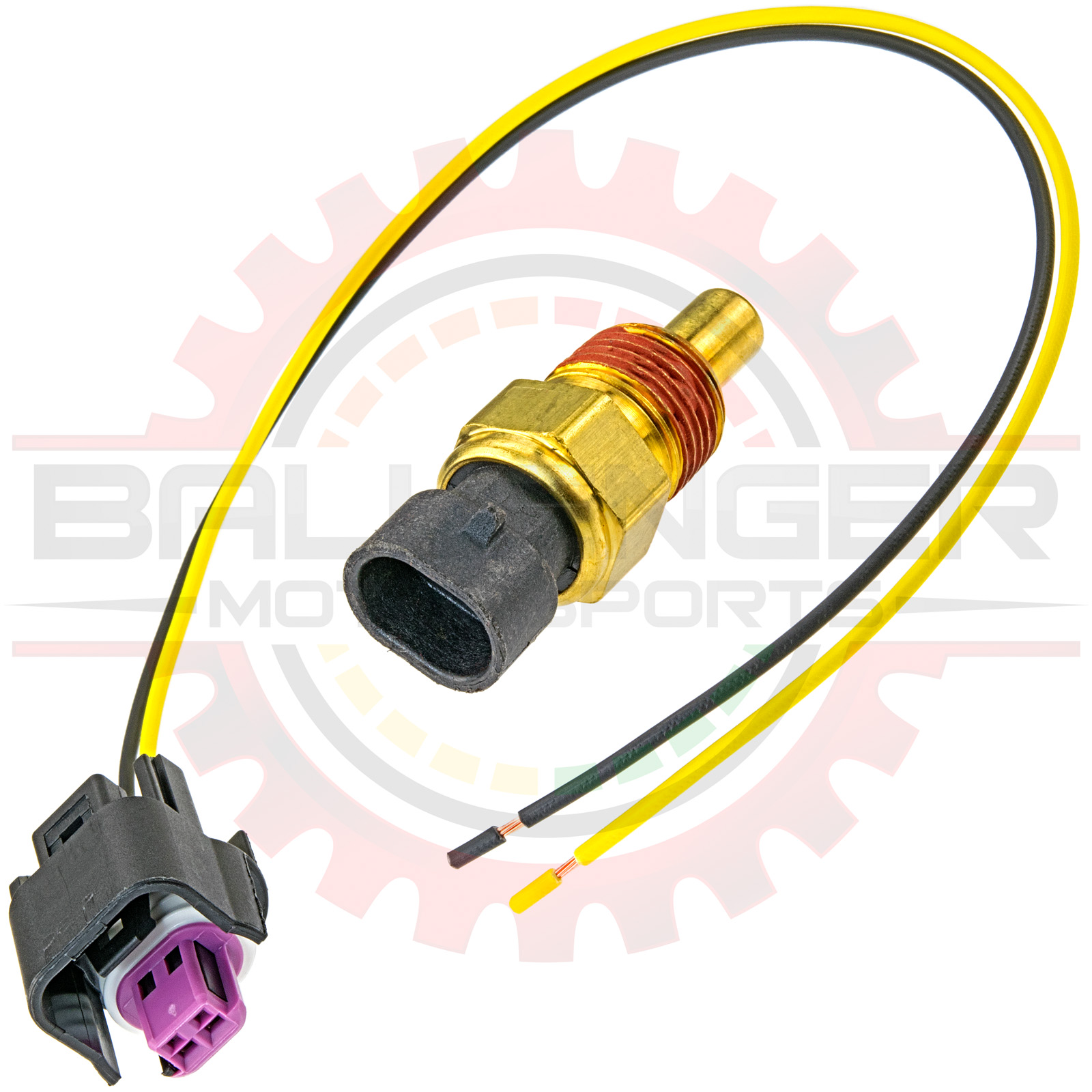

    GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit Part # SNSR-02056PK

    GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit
    Pricing
    1 + $17.00
    5 + $16.49
    10 + $15.99
    25 + $15.49
    50 + $14.99
    100 + $13.99
    250 + $11.99
    Information
    Bmotorsports Part # SNSR-02056PK
    Availability In Stock
    Shipping Weight 0.095 Lbs.
    Shipping Location VA   (Shipping Info)
    Options
    Mounting Option
    Ship Estimator Quantity:

    Description

    GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979 Pigtail Kit

    FEATURES:

    • Genuine Delphi Sensor
    • Robust Design
    • Cost Effective
    • 100% Calibration Certified
    • Thermistor Technology
    • Typical Voltage Supply: 5V DC
    • Operating Temperature: -40 C to 135 C
    • Sensor Body Material: Brass
    • Hex Size: 18.90 mm (3/4")
    • Thread Size: 3/8" - 18 NPTF
    • Thread Sealant: GM09985473
    • Sealing Pressure: 145 kPa
    • Thermal Time Constant: ** 18 to 24 seconds
    • Dissipation Constant: * 24 mW/degC
    Cross Reference Numbers:
    • Motec: M 25-5227
    • SMP: TX3T
    • SMP: TX3
    • AC Delco: 213-928
    • Delphi: TS10075
    • Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc.
    • VERY common sensor with hundreds of other applications


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts:
    3/8 NPT ECT / CLT / TFT SNSR-02056GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979
    M12 x 1.5 ECT / CLT / TFT SNSR-02059GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor M12 x 1.5
    3/8 NPT IAT / MAT / ACT Plastic SNSR-02055GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector
    Preferred Mating Connector (Shrouded with rear release):
    Connector Only CONN-51662GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
    Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
    Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
    Connector Kit CONN-75641GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
    Connector Pigtail CONN-85641GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for CLT/VSS
    Non-preferred Mating Connector (Unshrouded with front release):
    Connector Only CONN-51663GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for CLT/VSS (connector plus TPA)
    Terminals CONN-56468GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
    Seals CONN-56559GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
    Connector Kit CONN-75642GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Kit for CLT/VSS
    Connector Pigtail CONN-85642GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female pigtail for CLT/VSS
    Extensions
    ECT / CLT / TFT Preferred Wiring Extension CONN-85645-shroudGM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Shrouded connectors
    ECT / CLT / TFT Wiring Extension CONN-85645-unshroudGM Delphi / Packard - ECT / CLT / TFT / VSS / ISS / OSS Extender Harness, Un-shrouded connector

    Specifications










    » 1 x GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for CLT/VSS
    » GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for CLT/VSS
         1 x 20AWG Automotive TXL Wire Black
         20AWG Automotive TXL Wire Black
         1 x 20AWG Automotive TXL Wire Yellow
         20AWG Automotive TXL Wire Yellow
         10 x Labor $0.25/minute
         Labor $0.25/minute
         2 x GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
         GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
         2 x GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
         GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
         1 x GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female connector for CLT/VSS
         GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female connector for CLT/VSS
         1 x TPA for 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly
         TPA for 2-way GT 150 3.5mm centerline (sensor side) sealed connector assembly
    This product contains the following items:
    GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979» 1 x GM Delphi / Packard Fluid Temperature Sensor ( ECT / CLT / TFT ) or Coolant Temperature Sensor # 15326386 / 25036979
    Part # SNSR-02056
