2-way Metri-Pack 150 Connector Kit for LS3 A/C Clutch Switch	Part # CONN-76066

Pricing
1 +	$7.99
25 +	$7.49
50 +	$7.25
100 +	$6.99
Information
Bmotorsports Part #	CONN-76066
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

2-way Metri-Pack 150 Connector Kit for LS3 A/C Clutch Switch. Connector kit. Terminals and seals are included.

Used on various GM LS3 Engines to control the Magnetic clutch on A/C Compressors.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-56256	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only	CONN-101016	2-way Metri-Pack 150 Connector Assembly for LS3 A/C Clutch Switch
Connector Kit	CONN-76066	2-way Metri-Pack 150 Connector Kit for LS3 A/C Clutch Switch
Connector Pigtail	CONN-86066	2-way Metri-Pack 150 Connector Pigtail for LS3 A/C Clutch Switch
Mating Parts
Terminals	CONN-56260	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
16 AWG wire seals	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug
Connector Only	CONN-101369	2 way Metri-Pack 150 Receptacle Assembly, Wide Pitch for Compressor use
Connector Kit	CONN-76253	2 way Metri-Pack 150 Receptacle Connector Kit, for LS3 A/C Compressor
Connector Pigtail	CONN-86253	2 way Metri-Pack 150 Receptacle Connector Kit, for LS3 A/C Compressor

Applications

Applications:

Many applications not listed
2006 Pontiac GTO
2013 Chevrolet Corvette

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

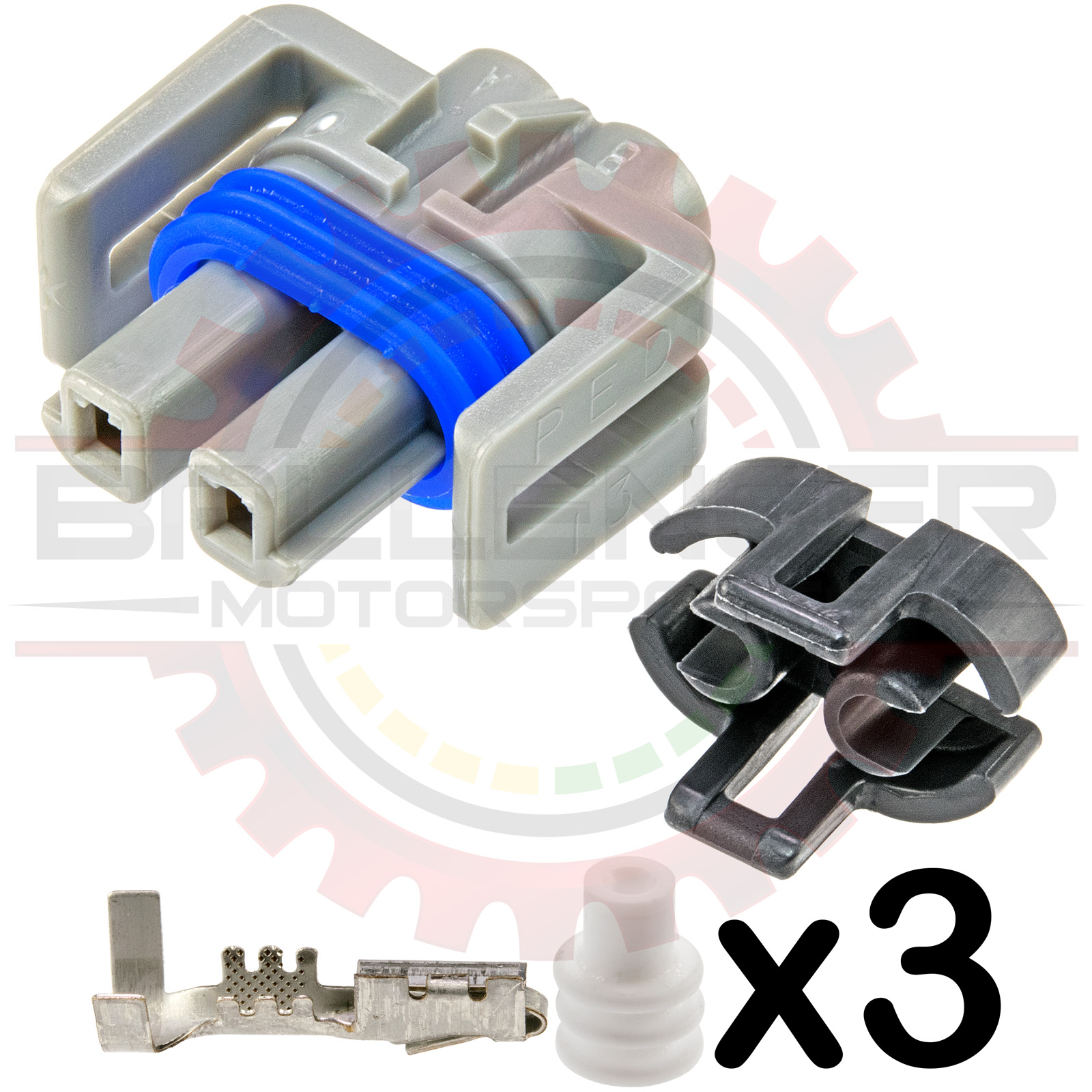

This product contains the following items:
	» 3 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge ) Part # CONN-56256
	» 3 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 1 x 2-way MP150 Connector ONLY for LS3 A/C Clutch Switch Part # CONN-101013
	» 1 x 2-way MP150 TPA ONLY for LS3 A/C Clutch Switch Part # CONN-101015
