4 Way Mazda Fuel Pump Plug Connector	Part # CONN-100811

Pricing
1 +	$9.99
50 +	$8.99
100 +	$7.99
Information
Bmotorsports Part #	CONN-100811
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

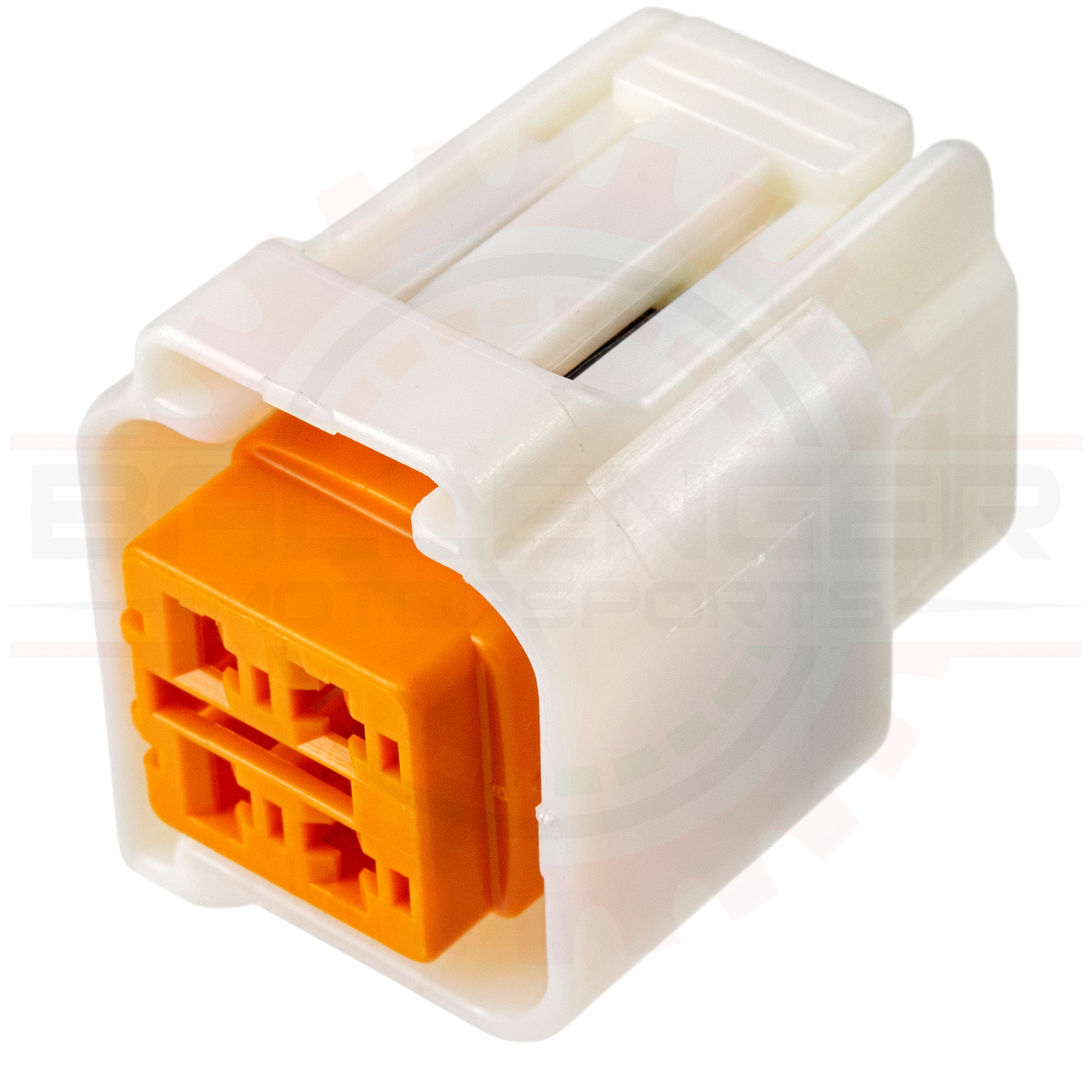

4 Way Mazda Fuel Pump Plug Connector. Connector ONLY. Terminals not included.

The 4 Way Mazda Fuel Pump Plug Connector is from the OEM manufacturer. Used on Mazda applications for the Fuel Pump Connector and other applications not listed as well.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Housing	CONN-100811	4 Way Mazda Fuel Pump Plug Connector
Connector Kit	CONN-75905	4 Way Mazda Fuel Pump Connector Plug Kit
Pigtail	CONN-85905	4 Way Mazda Fuel Pump Connector Plug Pigtail

Applications

Mazda Fuel Pump Plug Connector
Sensor & Device Connector on other applications

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Used In

Part #	Description
CONN-75905	4 Way Mazda Fuel Pump Connector Plug Kit
CONN-85905	4 Way Mazda Fuel Pump Connector Plug Pigtail
