Home » Shop » Connectors / Harnesses » Tyco / AMP » 2 Way Walbro Connector Plug Pigtail (18-14AWG) for 255lph pumps & universal pumps

2 Way Walbro Connector Plug Pigtail (18-14AWG) for 255lph pumps & universal pumps - Walbro # 94-615	Part # CONN-86038

Pricing
1 +	$7.99
50 +	$7.75
100 +	$7.25
Information
Bmotorsports Part #	CONN-86038
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
Options
Wire Size
	Quantity:

Description

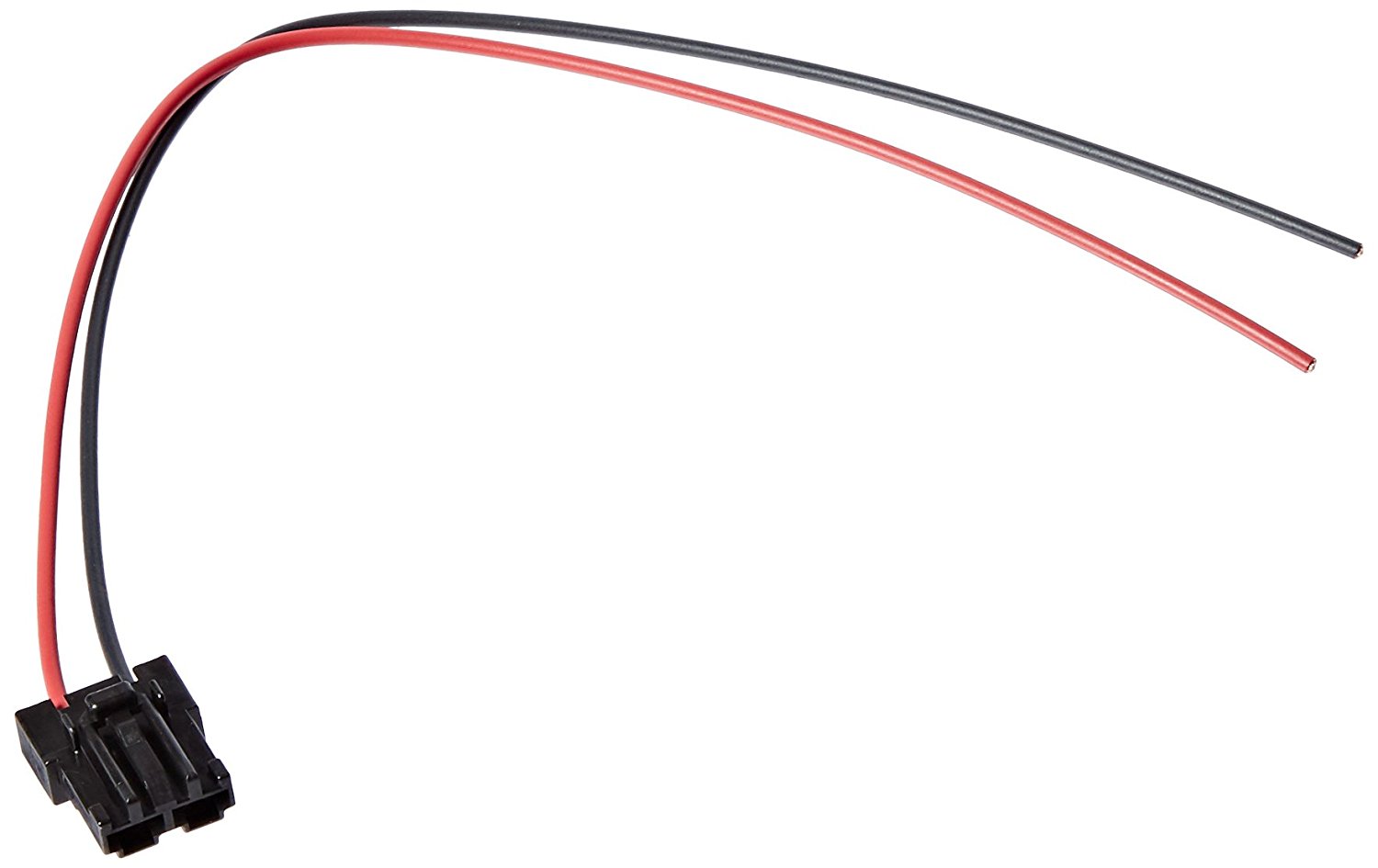

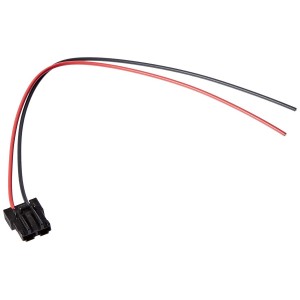

2 Way Walbro Connector Plug Pigtail for 255lph pumps & universal pumps. Connector Pigtail Walbro # 94-615. A completed pigtail is provided.

Harness side connector pigtail for Walbro & Deatschwerks Fuel pumps

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
18-14AWG Terminals	CONN-100961	Walbro Connector Terminals 18-14AWG (0.8-2.0mm2)
12-10AWG Terminals	CONN-100968	Walbro Connector Terminals 12-10AWG (3.0-5.0mm2)
Connector Housing	CONN-100960	2 Way Walbro Connector Plug for 255lph pumps & universal pumps
18-14AWG Connector Kit	CONN-76038	2 Way Walbro Connector Plug Kit (18-14AWG)for 255lph pumps & universal pumps
12-10AWG Connector Kit	CONN-76039	2 Way Walbro Connector Plug Kit (12-10AWG)for 255lph pumps & universal pumps
18-14AWG Pigtail	CONN-86038	2 Way Walbro Connector Plug Pigtail (18-14AWG) for 255lph pumps & universal pumps - Walbro # 94-615
12-10AWG Pigtail	CONN-86039	2 Way Walbro Connector Plug Pigtail (12-10AWG) for 255lph pumps & universal pumps - Walbro # 94-615
Associated Parts
Walbro GSS340 Fuel Pump	MOTR-03558	Walbro 255 L/Hour In-Tank Fuel Pump - GSS340
Walbro GSS341 Fuel Pump	MOTR-03566	Walbro 255 L/Hour In-Tank Fuel Pump - GSS341
Walbro GSS342 Fuel Pump	MOTR-03553	Walbro 255 L/Hour In-Tank Fuel Pump - GSS342

Applications

Deatschwerks DW300 fuel pump connector
Walbro 255 LPH fuel pump connector
Walbro part number 94-615
Fits millions of other fuel pump applications

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 6.3mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 10

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 1 x 14AWG Automotive TXL Wire Black Part # WIRE-00461s
	» 1 x 14AWG Automotive TXL Wire Red Part # WIRE-02461s
	» 1 x 2 Way Walbro Connector Plug for 255lph pumps & universal pumps Part # CONN-100960
	» 2 x Walbro Connector Terminals 18-14AWG (0.8-2.0mm2) Part # CONN-100961
