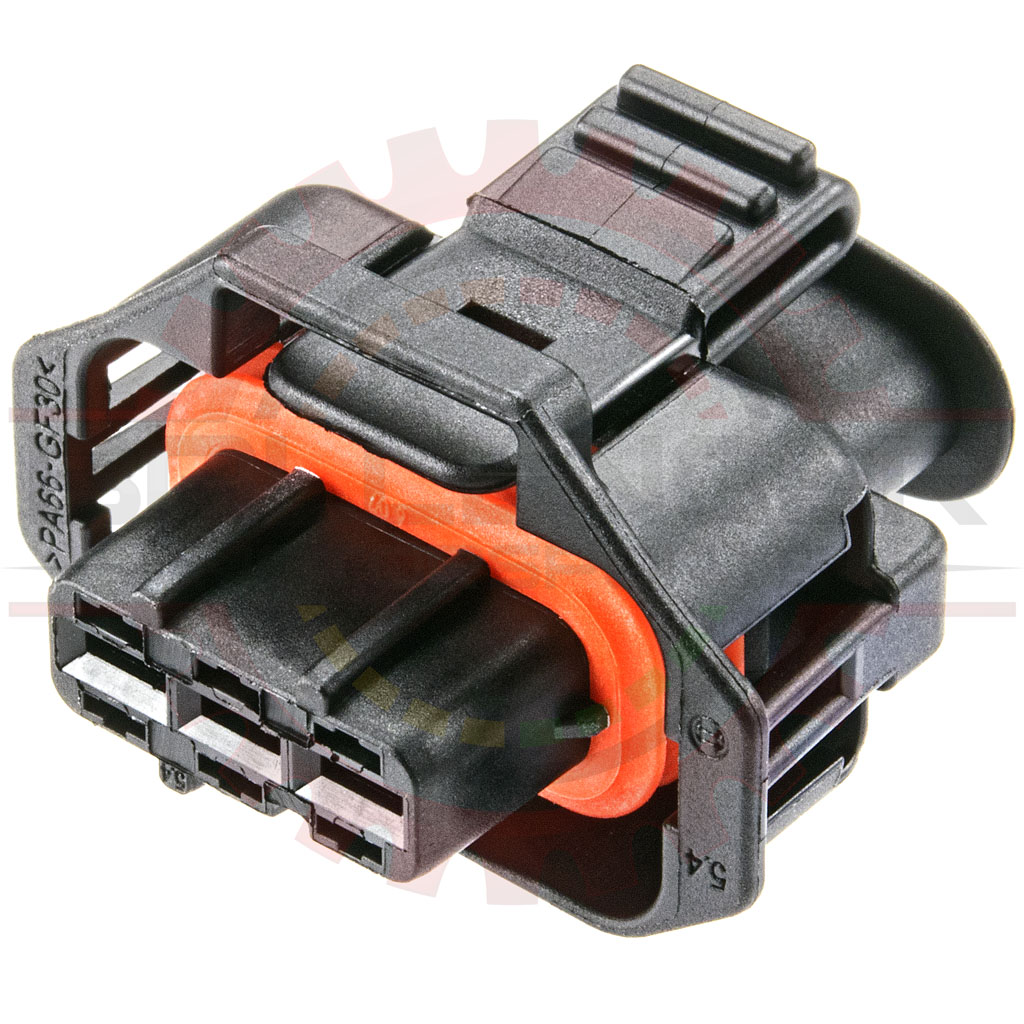

    3 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail Part # CONN-11560

    3 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail 3 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail 3 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail
    Pricing
    1 + $11.99
    50 + $10.49
    100 + $9.99
    250 + $8.49
    1000 + $4.25
    Information
    Bmotorsports Part # CONN-11560
    Availability In Stock
    Shipping Weight 0.02 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    3-way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail. Connector only. Terminals and seals NOT included.

    Used as the OEM connector for many MAP sensors, Cummins Fuel Rail Pressure Sensor, and various other pressure sensors. This is the more expensive Bosch (OEM) version of this product. For the alternate and cost-effective Delphi / GM version, please see CONN-100483

    Bosch Motorsports Connector # D 261 205 335-01 D261.205.335-01 Fits Bosch Motorsport Hall Effect Speed Sensor Hall-Effect HA-P 0232.103.037


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    Connector Only CONN-115603 Way Sealed Plug Bosch BDK Connector Assembly for Diesel Injection Pump & Cummins Fuel Rail
    Terminals CONN-11561Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Seals CONN-11562Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    Connector Kit CONN-760473-way Sealed Plug Bosch BDK Connector Kit for Diesel Injection Pump & Cummins Fuel Rail
    Pigtail CONN-860473-way Sealed Plug Bosch BDK Connector Pigtail for Diesel Injection Pump & Cummins Fuel Rail
    Associated Parts Using Cost Effective JPT terminals
    Connector Only CONN-100483GM Delphi / Packard - 3-way sealed Plug Bosch Connector Assembly for Diesel Injection Pump
    Terminals CONN-10575Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
    Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Connector Kit CONN-75672GM Delphi / Packard - 3-way sealed Plug Bosch Connector Kit for Diesel Injection Pump
    Production Connector Kit CONN-75672pGM Delphi / Packard - 3-way sealed Plug Bosch Connector Kit for Diesel Injection Pump - Production Kit
    Pigtail CONN-85672GM Delphi / Packard - 3-way sealed Plug Bosch Connector Pigtail for Diesel Injection Pump
    Mating Parts
    Connector Only CONN-115553-way sealed Receptacle Bosch Connector Assembly for Diesel Injection Pump
    Terminals CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
    Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Connector Kit CONN-755983-way sealed Receptacle Bosch Connector Assembly Kit for Diesel Injection Pump
    Production Connector Kit CONN-75598p3-way sealed Receptacle Bosch Connector Assembly Kit for Diesel Injection Pump, Production Kit
    Pigtail CONN-855983-way sealed Receptacle Bosch Connector Pigtail for Diesel Injection Pump
    Connector Pairs
    Connector Pair CONN-200016Sealed 3-way Bosch connector pair for Diesel injection pump
    Extensions
    Extension Harness CONN-85769GM Delphi / Packard & Bosch - 3-way Diesel Injection Pump & MAP Extension Harness

    Applications

    Applications:

    • LSA motor in the CTSV or ZR1 camaro
    • 2009-2014 CTSV
    • GM LF1 on Cadillac CTS
    • Bosch Common Rail Diesel Connector
    • Oil Pressure Connector
    • Fuel Pressure Connector
    • Water / Coolant Pressure Connector
    • Clutch Pressure Connector
    • Cummins HPRS Connector 2003 - 2007, 05143781AA
    • Cummins HPRS Connector 2007 - 2012, 05183458AA
    • Cummins High Pressure Fuel Rail Sensor Connector 2003 - 2007, 05143781AA
    • Cummins High Pressure Fuel Rail Sensor Connector 2007 - 2012, 05183458AA

    Cross-References:
    • Bosch Connector # 1 928 403 968, 1928403968
    • Chrysler, Dodge RAM # 05183458AA
    • Chrysler, Dodge RAM # 05143781AA
    • Bosch Motorsports Connector # D 261 205 335-01


    Specifications

    Parameter Value
    Number of Ways3
    GenderPlug/Male
    Terminal Size2.8mm
    Terminal TypeFlat
    Min. Wire Gauge20
    Max. Wire Gauge16
