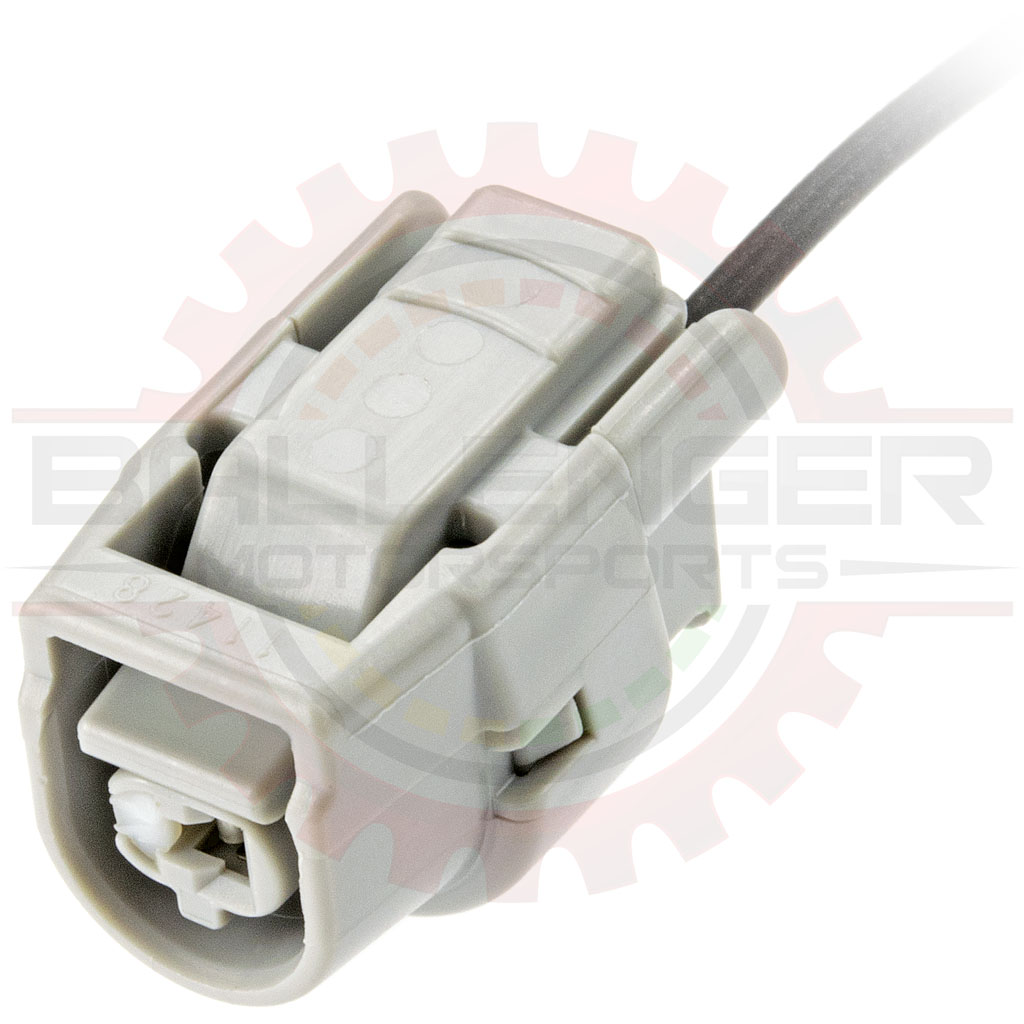

    1 Way Coolant / Knock Sensor Connector Plug Pigtail (Toyota # 90980-11428) Part # CONN-86019
    1 Way Coolant / Knock Sensor Connector Plug Pigtail (Toyota # 90980-11428) 1 Way Coolant / Knock Sensor Connector Plug Pigtail (Toyota # 90980-11428) 1 Way Coolant / Knock Sensor Connector Plug Pigtail (Toyota # 90980-11428)
    Pricing
    1 + $6.99
    50 + $6.75
    100 + $6.49
    Information
    Bmotorsports Part # CONN-86019
    Availability In Stock
    Shipping Weight 0.05 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    1 Way Knock Sensor Connector Plug Pigtail (Toyota # 90980-11428). Connector Pigtail. Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

    Knock Sensor Connector on thousands of Toyota & Lexus applications.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Parts
    Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
    Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
    Connector Housing CONN-1008491 Way Coolant / Knock Sensor Connector Plug (Toyota # 90980-11428)
    Connector Kit CONN-760191 Way Coolant / Knock Sensor Connector Plug Kit (Toyota # 90980-11428)
    Pigtail CONN-860191 Way Coolant / Knock Sensor Connector Plug Pigtail (Toyota # 90980-11428)

    Applications

    • Toyota Knock Sensor Connector
    • Lexus Knock Sensor Connector


    Specifications

    Parameter Value
    Number of Ways1
    GenderPlug/Male
    Terminal Size2.3mm
    Terminal TypeFlat
    Min. Wire Gauge20
    Max. Wire Gauge16

    This product contains the following items:
    Labor $0.25/minute» 10 x Labor $0.25/minute
    Part # LABR-00001
    18AWG Automotive TXL Wire Black» 1 x 18AWG Automotive TXL Wire Black
    Part # WIRE-00459s
    Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 1 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
    Part # CONN-00145
    Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )» 1 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
    Part # CONN-11856
    1 Way Coolant / Knock Sensor Connector Plug (Toyota # 90980-11428)» 1 x 1 Way Coolant / Knock Sensor Connector Plug (Toyota # 90980-11428)
    Part # CONN-100849
