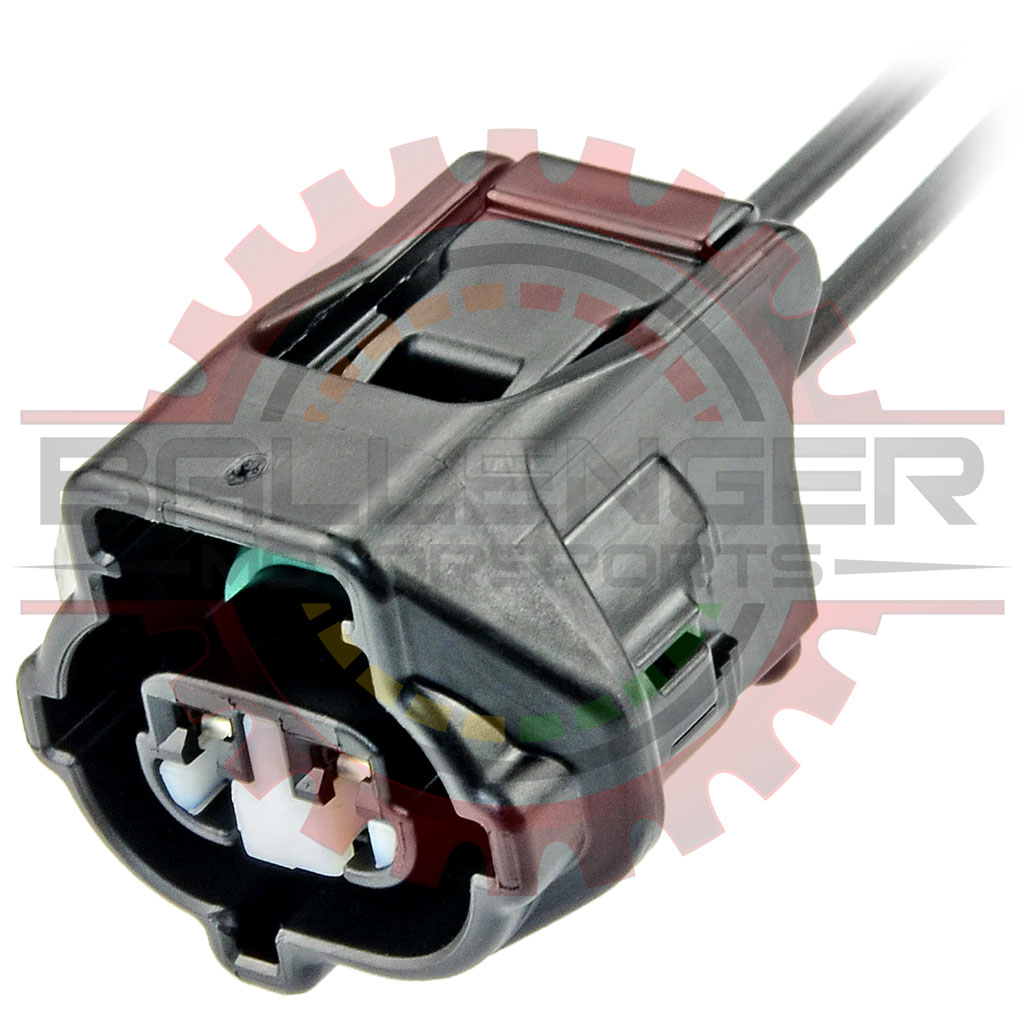

2 Way Plug Connector Pigtail, black - 90980-11235	Part # CONN-85864

Pricing
1 +	$8.75
50 +	$8.25
100 +	$7.99
500 +	Call for Pricing
Information
Bmotorsports Part #	CONN-85864
Availability	In Stock
Shipping Weight	0.01 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

2 Way Plug Connector Pigtail, black - 90980-11235. Connector Pigtail. Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

Sensor, solenoid, horn, fan connector on many Subaru & Toyota applications.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing	CONN-100731	2 Way Plug Connector Assembly, black - 90980-11235
Connector Kit	CONN-75864	2 Way Plug Connector Kit, black - 90980-11235
Pigtail	CONN-85864	2 Way Plug Connector Pigtail, black - 90980-11235

Applications

Sensor, solenoid, horn, fan connector on many Subaru & Toyota applications
Toyota 90980-11235
Lexus 90980-11235
Many applications not specifically listed

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 2 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 2 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 2 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 2 Way Plug Connector Assembly, black - 90980-11235 Part # CONN-100731
