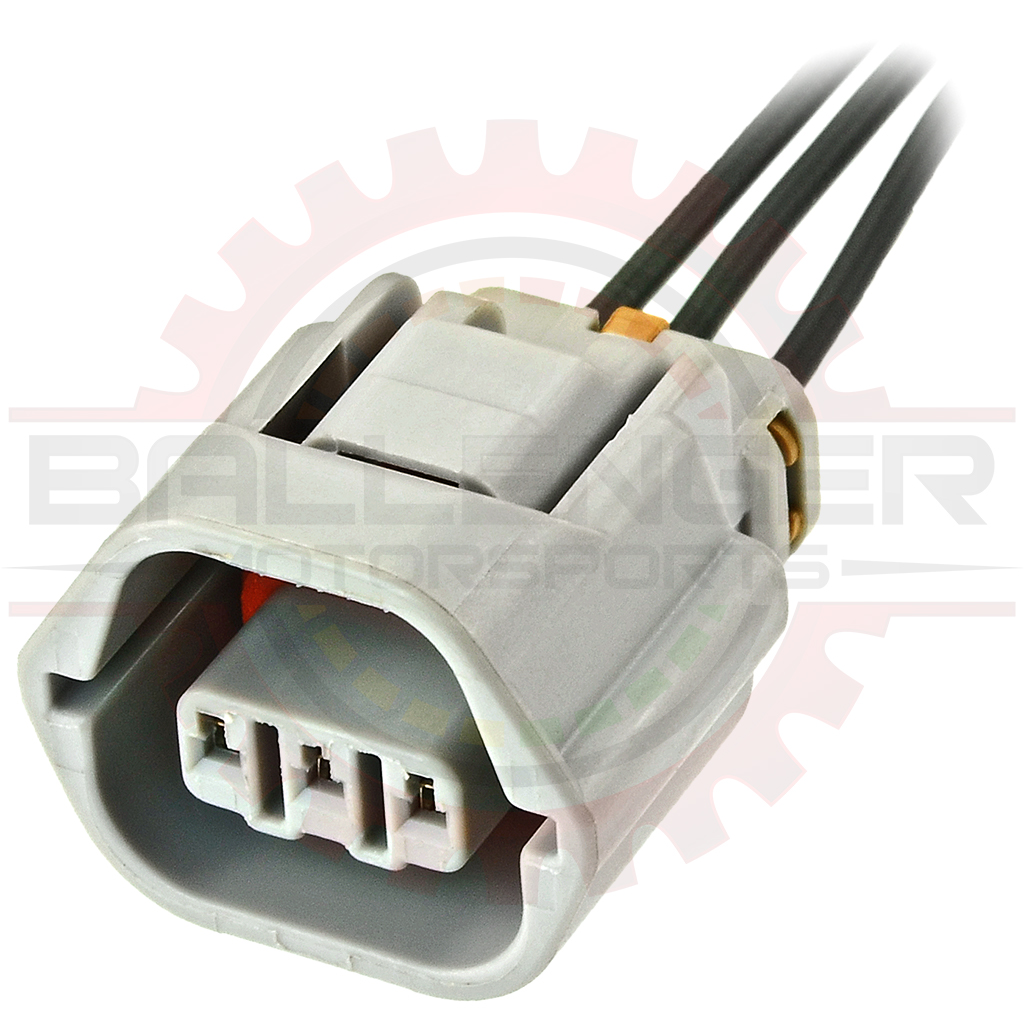

    3 Way Subaru Crank Connector Plug Pigtail Part # CONN-85869

    3 Way Subaru Crank Connector Plug Pigtail 3 Way Subaru Crank Connector Plug Pigtail 3 Way Subaru Crank Connector Plug Pigtail
    Pricing
    1 + $11.99
    25 + $11.49
    50 + $11.25
    100 + $10.99
    1000 + $9.99
    Information
    Bmotorsports Part # CONN-85869
    Availability In Stock
    Shipping Weight 0.05 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    3 Way Subaru Crank Connector Plug Pigtail. Preassembled and includes connector, front lock, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.

    Used on Subaru, Smart Car & other CAM & Crank applications.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Connectors
    Connector Only CONN-1007363 Way Subaru Crank Connector Plug Assembly
    Terminals CONN-100632Mazda / Subaru CAM Female Terminal 22-18AWG (0.3-0.85mm2)
    Seals CONN-100634Mazda / Subaru CAM Cable Seal 22-20AWG (0.3-0.5mm2)
    Connector Kit CONN-758693 Way Subaru Crank Connector Plug Kit
    Connector Pigtail CONN-858693 Way Subaru Crank Connector Plug Pigtail

    Applications

    Applications:

    • Subaru Crank Sensor Connector
    • Subaru CAM Sensor Connector
    • Smart Car Crank Sensor Connector
    • Many applications not listed


    Specifications

    Parameter Value
    Number of Ways3
    GenderPlug/Male
    Terminal Size1.2mm
    Terminal TypeFlat
    Min. Wire Gauge22
    Max. Wire Gauge18



    This product contains the following items:
    20AWG Automotive TXL Wire Black» 3 x 20AWG Automotive TXL Wire Black
    Part # WIRE-00458S
    Labor $0.25/minute» 20 x Labor $0.25/minute
    Part # LABR-00001
    3 Way Subaru Crank Connector Plug (ONLY)» 1 x 3 Way Subaru Crank Connector Plug (ONLY)
    Part # CONN-100675
    3 Way Subaru Crank Connector Retainer (ONLY)» 1 x 3 Way Subaru Crank Connector Retainer (ONLY)
    Part # CONN-100631
    Mazda / Subaru CAM Female Terminal 22-18AWG (0.3-0.85mm2)» 3 x Mazda / Subaru CAM Female Terminal 22-18AWG (0.3-0.85mm2)
    Part # CONN-100632
    Mazda / Subaru CAM Cable Seal 22-20AWG (0.3-0.5mm2)» 3 x Mazda / Subaru CAM Cable Seal 22-20AWG (0.3-0.5mm2)
    Part # CONN-100634
