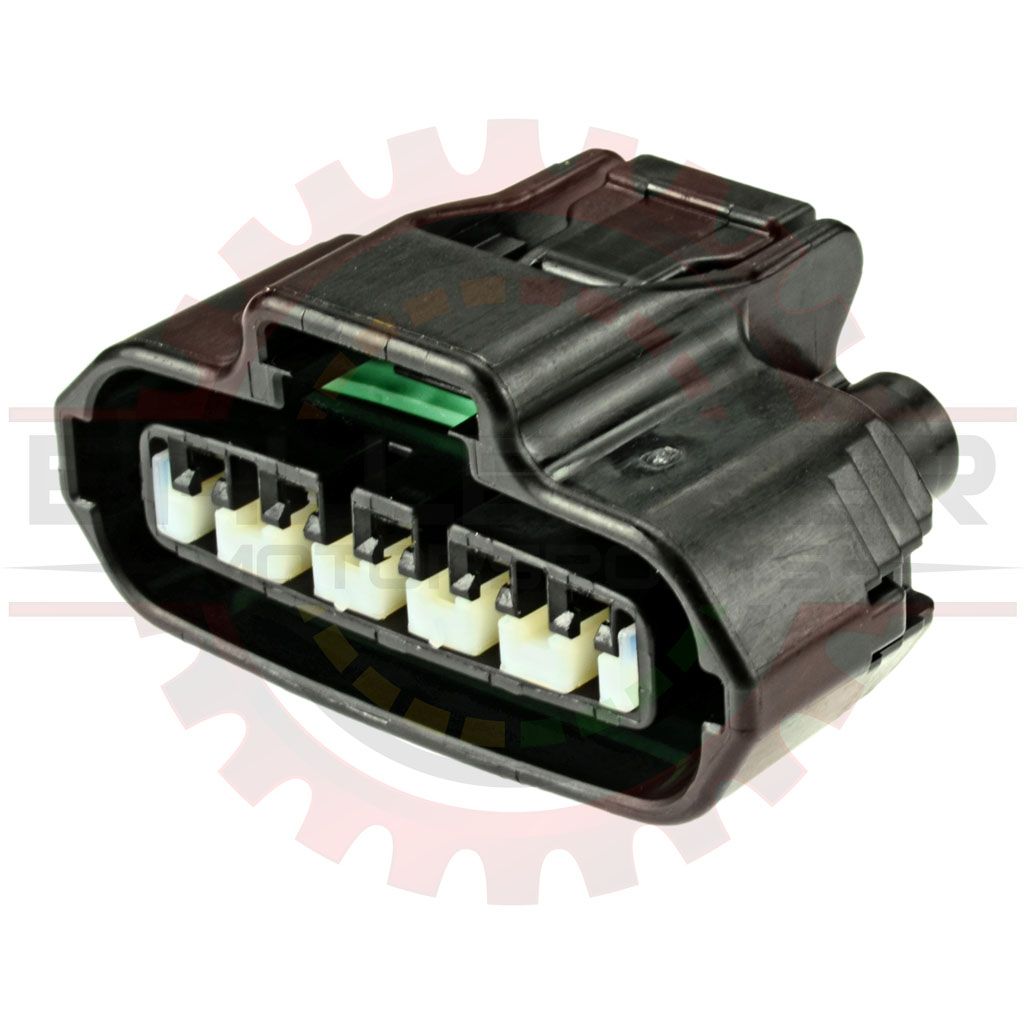

5 Way 090II Plug Assembly for Subaru & Toyota MAF (Connector + Lock)	Part # CONN-100680

Pricing
1 +	$7.99
25 +	$7.49
50 +	$7.25
100 +	$6.99
1000 +	$5.99
Information
Bmotorsports Part #	CONN-100680
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

5 Way 090II Plug Assembly for Subaru & Toyota MAF (Connector + Lock). Connector and Lock ONLY. Terminals and seals not included.

Used on some Toyota MAF applications. Used on some Subaru MAF applications including some years of Impreza WRX & STI.

This connector will fit 1992-1997 Toyota and Lexus 1UZ-FE ignitor / ignition control modules (ICM) WITH a keyway modification on your ignitor. The lower keyway on your ignitor must be cut and shaved, as well as the offending side keyway.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100680	5 Way 090II Plug Assembly for Subaru & Toyota MAF (Connector + Lock)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
22-20AWG Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
22-18AWG Seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
Connector Kit	CONN-75825	5 Way Plug Kit for Subaru & Toyota MAF
Connector Pigtail	CONN-85825	5 Way Plug Pigtail for Subaru & Toyota MAF
Mating Connectors
Connector Only	CONN-100984	5 Way 090II Receptacle Connector Mate to Toyota Subaru MAF
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-76059	5 Way 090II Receptacle Connector Mate Kit to Toyota Subaru MAF
Connector Pigtail	CONN-86059	5 Way 090II Receptacle Connector Mate Pigtail to Toyota Subaru MAF
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465

Applications

Applications:

Toyota MAF for many models & years
Subaru MAF on some models including Impreza WRX STI
Fits many Toyota, Scion & Lexus MAF sensors, including: 05'+ TOYOTA V6 4.0L (1GR-FE MOTOR)

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start Year End Make Model Trim Engine Code

1994 1994 Mazda Miata

2001 2006 Chevrolet Silverado 2500HD 6.6 Duramax diesel

2001 2006 Chevrolet Silverado 3500HD 6.6 Duramax diesel

2003 2008 Pontiac Vibe base, GT 1ZZFE, 2ZZGE

2004 2005 Chevrolet Silverado 3500HD

Used In

Part #	Description
CONN-75825	5 Way Plug Kit for Subaru & Toyota MAF
CONN-85825	5 Way Plug Pigtail for Subaru & Toyota MAF
