6 Way Receptacle Connector Kit for Japanese applications, Gray	Part # CONN-75848

Pricing
1 +	$7.99
25 +	$7.49
50 +	$7.25
100 +	$6.99
1000 +	$5.99
Information
Bmotorsports Part #	CONN-75848
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

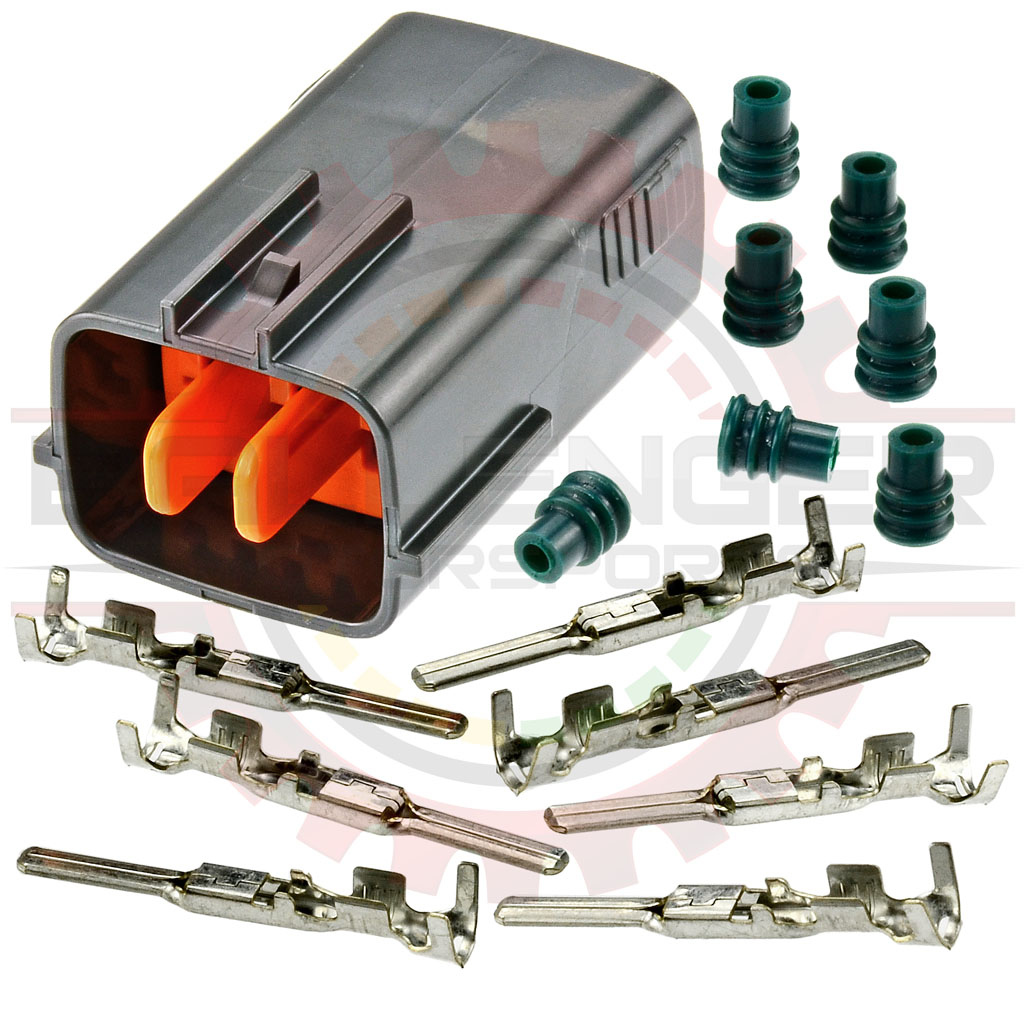

6 Way Receptacle Connector Kit for Japanese applications, Gray. Connector Kit. Terminals and seals ARE included.

Used on some Miata ignition sub-harnesses.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only	CONN-100722	6 Way Receptacle Assembly for Japanese applications (Connector + Lock), Gray
Terminals	CONN-100451	Sumitomo HX / DL / SL Sealed Series Male terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-75848	6 Way Receptacle Connector Kit for Japanese applications, Gray
Connector Pigtail	CONN-85848	6 Way Receptacle Connector Pigtail for Japanese applications, Gray
Mating Connectors
Connector Only	CONN-100721	6 Way Plug Assembly for Japanese applications (Connector + Lock), Gray
Terminals	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Kit	CONN-75847	6 Way Plug Connector Kit for Japanese applications, Gray
Connector Pigtail	CONN-85847	6 Way Plug Connector Pigtail for Japanese applications, Gray

Applications

Applications:

Miata ignition subharness

Specifications

Parameter Value
Number of Ways 6
Gender Receptacle/Female
Terminal Size 2.8mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

This product contains the following items:
	» 7 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 7 x Sumitomo HX / DL / SL Sealed Series Male terminal 18 - 16 AWG Terminal, loose piece Part # CONN-100451
	» 1 x 6 Way Receptacle Assembly for Japanese applications (Connector + Lock), Gray Part # CONN-100722
