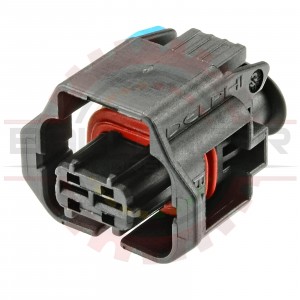

    2 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors Part # CONN-100616

    2 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors 2 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors 2 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors 2 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors
    Pricing
    1 + $9.99
    25 + $7.99
    50 + $5.49
    100 + $3.99
    250 + $2.99
    500 + $1.99
    Information
    Bmotorsports Part # CONN-100616
    Availability In Stock
    Shipping Weight 0.03 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    2 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors. Connector ONLY. Terminals & Seals not included.

    A wide variety of applications including Cummins 5.9L & 6.7L Diesel Fuel injectors, Duramax LLY, LBZ, & LMM Diesel Fuel Injectors, Knock Sensors, and several solenoids. Choose smaller wiring for sensors, larger wiring option for injectors & solenoids.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Connectors
    Connector Only CONN-1006162 Way Bosch Connector Plug for Solenoids, Sensors, & Diesel Fuel Injectors
    Terminals (20-16AWG) CONN-10575Junior Power Timer Female Terminal for 0.5-1.0mm2 (20-16AWG)
    Terminals (16-12AWG) CONN-10576Junior Power Timer Female Terminal for 16 - 12 gauge wire
    Seals (20-16AWG) CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Seals (18-14AWG) CONN-56058GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
    Connector Kit CONN-757532 Way Bosch Connector Plug Kit for Solenoids, Sensors, & Diesel Fuel Injectors
    Connector Pigtail CONN-857532 Way Bosch Connector Plug Pigtail for Solenoids, Sensors, & Diesel Fuel Injectors
    Mating Connectors
    Connector Only CONN-115542-way sealed Receptacle Bosch Connector for Solenoid
    Terminals (20-16AWG) CONN-10555Junior Power Timer Male Terminal for 20 - 16 gauge wire
    Terminals (16-12AWG) CONN-10559Junior Power Timer Male Terminal for 16 - 12 gauge wire
    Seals (20-16AWG) CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    Seals (18-14AWG) CONN-56058GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
    Connector Kit CONN-757522-way sealed Receptacle Bosch Connector Kit for Solenoid
    Connector Pigtail CONN-857522-way sealed Receptacle Bosch Connector Pigtail for Solenoid

    Applications

    Applications Include:

    • Bosch Common Rail Diesel Connector
    • Motorcycle Clutch Solenoid
    • Bosch Solenoid
    • Clutch Pressure Connector
    • Knock Sensor Connector
    • 5L40-E / 5L40E Connector
    • Oil Level Switch
    • Duramax Diesel Fuel Injectors 2003 to 2010 6.6L Chevrolet/GMC
    • GM Silverado/Sierra 6.6L 2004-2010
    • GM Express/Savana 6.6L 2004-2010
    • GM Topkick/Kodiak 6.6L 2004-2010
    • Duramax LLY Diesel Fuel Injector Connector
    • Duramax LBZ Diesel Fuel Injector Connector
    • Duramax LMM Diesel Fuel Injector Connector
    • Cummins 5.9L Diesel Fuel Injector Connector 2003-2007
    • Cummins 5.9L Diesel Control Actuator Connector 2003-2007
    • Cummins 6.7L Diesel Fuel Injector Connector 2007-2018+
    • Cummins 6.7L Diesel Control Actuator Connector 2007-2018+
    • Chrysler, Dodge RAM, FCA # 05143779AA
    • Chrysler, Dodge RAM, FCA # 05143779AB
    • Chrysler, Dodge RAM, FCA EVAP Switch Connector
    • Cummins # 3164098 Control Actuator Repair Harness
    • Works with Cummins 4932457 and 4936097 fuel control actuator


    Specifications

    Parameter Value
    Number of Ways2
    GenderPlug/Male
    Terminal Size2.8mm
    Terminal TypeFlat


    Part Compatibility

    The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

    Year Start Year End Make Model Trim Engine Code
    0 0 Volvo FE, FH, FM, FL truck engines



    This product contains the following items:
    Labor $0.25/minute» 3 x Labor $0.25/minute
    Part # LABR-00001
    2-way sealed Plug  Bosch Connector for Solenoid» 1 x 2-way sealed Plug Bosch Connector for Solenoid
    Part # CONN-11558
