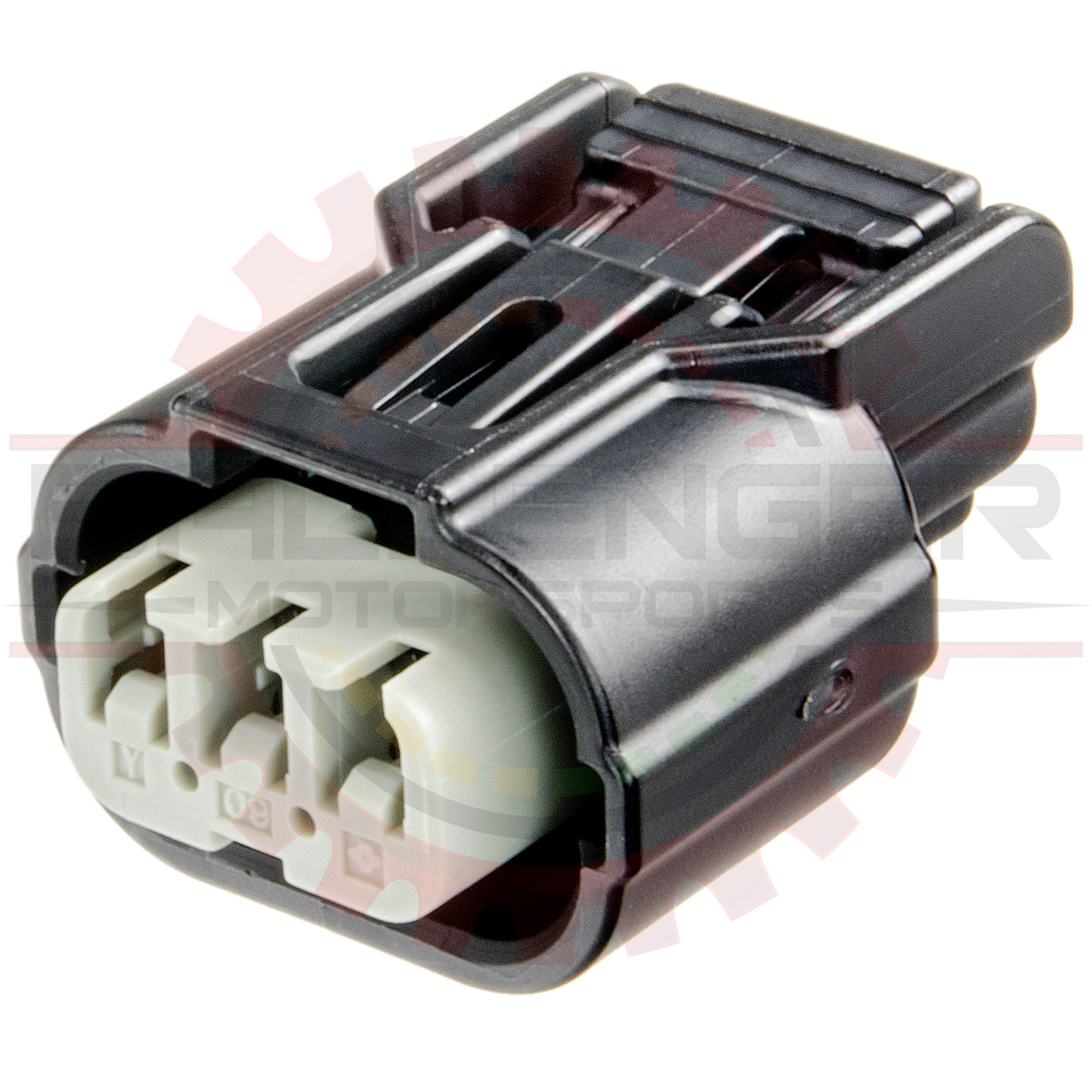

3 Way Sumitomo HX 040 Plug Assembly (Connector + Lock)	Part # CONN-100556

Pricing
1 +	$5.99
100 +	$4.99
500 +	$4.49
Information
Bmotorsports Part #	CONN-100556
Availability	In Stock
Shipping Weight	0.02 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way Sumitomo HX 040 Plug Assembly. Connector and Lock ONLY. Terminals and seals not included.

Commonly used in Honda applications, often for cam & crank connectors

Also used in some GM applications used with crankshaft position sensor GM# 12595966 (ACDelco 213-3906)

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100465	Sumitomo HX 040 Female Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Housing	CONN-100556	3 Way Sumitomo HX 040 Plug Assembly (Connector + Lock)
Connector Kit	CONN-75778	3 Way Sumitomo HX 040 Plug Connector Kit
Pigtail	CONN-85778	3 Way Sumitomo HX 040 Plug Connector Pigtail
Mating Parts
Terminals	CONN-100558	Sumitomo HX 040 Male Terminal 0.3 - 0.5mm2 (22 - 20 AWG)
Seals	CONN-100552	Sumitomo HX 040 Seal 0.3 - 0.5mm2 (22 - 20 AWG)
Connector Housing	CONN-100773	3 Way Sumitomo HX 040 Receptacle Connector
Connector Kit	CONN-76272	3 Way Sumitomo HX 040 Receptacle Connector Kit
Pigtail	CONN-86272	3 Way Sumitomo HX 040 Receptacle Connector Pigtail

Applications

Applications:

Honda element TPS Throttle Position Sensor
Honda Odyssey oil pressure Sensor
Many Honda Crank, Cam and TPS sensors
'07-'09 Honda Fit Ignition Coil

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 1mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 20

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start Year End Make Model Trim Engine Code

2003 2005 Chevrolet Express 1500 * LU3

2006 2012 Chevrolet Express 1500 * LU3

2007 2012 Chevrolet Silverado 1500 * LU3

2007 2012 GMC Sierra 1500 * LU3

2011 2012 Chevrolet Silverado 1500 Crew Cab 2WD (non hybrid) LU3

This product contains the following items:
	» 1 x 3 Way Sumitomo HX 040 Plug Connector Part # CONN-100554
	» 1 x 3 Way Sumitomo HX 040 Plug lock Part # CONN-100555
