Sumitomo 3 way TS Plug Housing Kit for TPS & Boost Sensors - 90980-10845	Part # CONN-75765

Pricing
1 +	$5.99
25 +	$5.49
50 +	$5.25
100 +	$4.99
Information
Bmotorsports Part #	CONN-75765
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Sumitomo 3 way TS Plug Housing Kit for TPS & Boost Sensors
Toyota # 90980-10845

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-100292	Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - 90980-10845
Connector Kit	CONN-75765	Sumitomo 3 way TS Plug Housing Kit for TPS & Boost Sensors - 90980-10845
Connector Pigtail	CONN-85765	Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - 90980-10845
Mating Parts
Terminals	CONN-00115	Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Only	CONN-100547	Mate to Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - Mates to 90980-10845
Connector Kit	CONN-75764	Mate to Sumitomo 3 way TS Plug Housing Kit for TPS & Boost Sensors - Mates to 90980-10845
Connector Pigtail	CONN-85764	Mate to Sumitomo 3 way TS Plug Housing Pigtail for TPS & Boost Sensors - Mates to 90980-10845

Applications

Polaris TPS Sensor Connector
Motorcycle TPS Sensor Connector on many applications
MAP Sensor Connector on many applications
Many applications not listed here

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year	Make	Model	Engine / Trim	Application
2011	Polaris	Ranger	800	TPS
2012	Polaris	Ranger	800	TPS
2013	Polaris	Ranger	800	TPS
2011	Polaris	RZR	800	TPS
2012	Polaris	RZR	570, 800	TPS
2013	Polaris	RZR	800	TPS
2013	Polaris	RZR	800	TPS
2006+	Polaris	Sportsman ATV	500	TPS

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

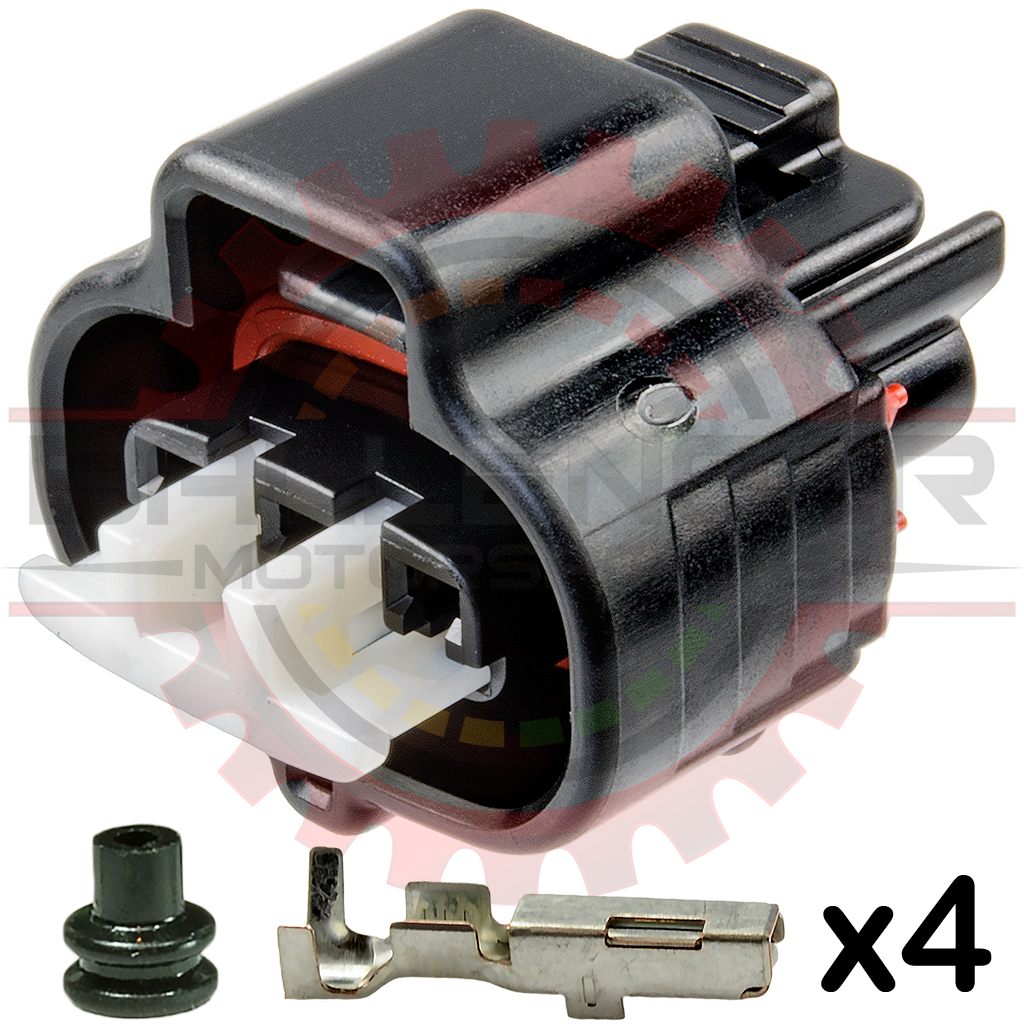

This product contains the following items:
	» 4 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 4 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x Sumitomo 3 way TS Plug Housing for TPS & Boost Sensors - 90980-10845 Part # CONN-100292
