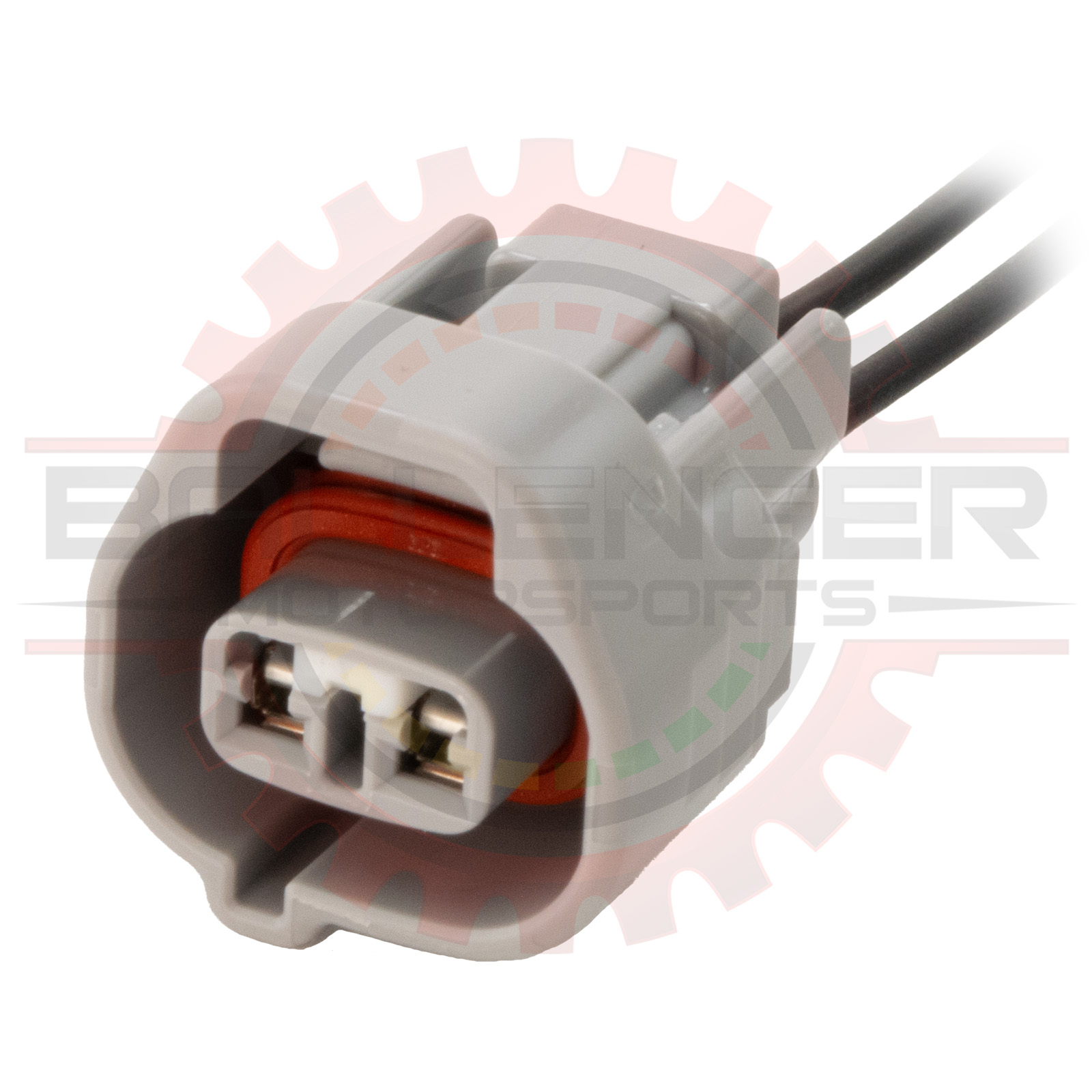

2 Way Connector Plug Pigtail TS Sealed Series for Sensor Application, Gray Keyway 1 Part # CONN-85734

2 Way Connector Plug Pigtail TS Sealed Series for Sensor Application, Gray Keyway 1 2 Way Connector Plug Pigtail TS Sealed Series for Sensor Application, Gray Keyway 1 2 Way Connector Plug Pigtail TS Sealed Series for Sensor Application, Gray Keyway 1
Pricing
1 + $6.99
5 + $6.75
25 + $6.49
50 + $6.25
100 + $5.99
1000 + $4.99
5000 + $4.49
Information
Bmotorsports Part # CONN-85734
Availability In Stock
Shipping Weight 0.05 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description



2 Way Connector Plug Pigtail TS Sealed Series for Sensor Application, Gray Keyway 1 . Preassembled and includes connector, seals, and terminals already crimped on 12 inch wire leads. A completed pigtail is provided.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-11856Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )

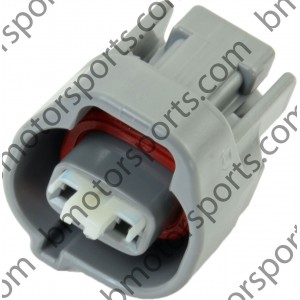

Connector Housing CONN-1003082 Way Connector Plug TS Sealed Series for Sensor Application, Gray Keyway 1
Connector Kit CONN-757342 Way Connector Plug Kit TS Sealed Series for Sensor Application, Gray Keyway 1
Connector Pigtail CONN-857342 Way Connector Plug Pigtail TS Sealed Series for Sensor Application, Gray Keyway 1
Mating Parts
Terminals CONN-00115Sumitomo 16-22 gauge brass/tin male terminal for 8 way receptacle
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-1000742 Way Receptacle Connector MT Sealed Series for Sensor Application, Blue Keyway 1
Connector Kit CONN-757462 Way Receptacle Connector Kit MT Sealed Series for Sensor Application, Blue Keyway 1
Connector Pigtail CONN-857462 Way Receptacle Connector Pigtail MT Sealed Series for Sensor Application, Blue Keyway 1
Mating Parts
Terminals CONN-100069Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals CONN-00145Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Housing CONN-1000722 Way TS Series Receptacle Connector
Connector Kit CONN-760022 Way TS Series Receptacle Connector Kit
Connector Pigtail CONN-860022 Way TS Series Receptacle Connector Pigtail

Applications

  • Boost Control Solenoid on Many Japanese applications
  • Pressure Control Solenoid on Many Japanese applications
  • Solenoid on Many Japanese applications
  • Sensor on Many Japanese applications


Specifications

Parameter Value
Number of Ways2
GenderPlug/Male
Terminal Size2.3mm
Min. Wire Gauge20
Max. Wire Gauge16



This product contains the following items:
Labor $0.25/minute» 10 x Labor $0.25/minute
Part # LABR-00001
18AWG Automotive TXL Wire Black» 2 x 18AWG Automotive TXL Wire Black
Part # WIRE-00459s
Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )» 2 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Part # CONN-00145
Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )» 2 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Part # CONN-11856
2 Way Connector Plug TS Sealed Series for Sensor Application, Gray Keyway 1» 1 x 2 Way Connector Plug TS Sealed Series for Sensor Application, Gray Keyway 1
Part # CONN-100308
