20 Way Connector Kit for Allison 3K / 4K ( Gen 4 ) Heavy Duty Transmission	Part # CONN-100157

Pricing
1 +	$67.99
10 +	$64.99
50 +	$62.99
100 +	$60.99
250 +	$59.99
Information
Bmotorsports Part #	CONN-100157
Availability	In Stock
Shipping Weight	0.2 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Connector Kit for Allison 3K / 4K ( Gen 4 ) Heavy Duty Transmission. Connector kit. Terminals, seals, & all required parts for assembly are included. Pigtail and wiring assemblies available upon request.

3000/4000 4/5th Gen 20 Way Transmission Connector Kit.

Bolt Assist
Direction "B"

Allison: 29543022
St. Clair: 300278

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminal	CONN-100164	Gold Plate Molex Female Terminals for Allison 3k/4k Transmission Connector
Cavity Plug	CONN-56158	GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail)
Connector Kit	CONN-100157	20 Way Connector Kit for Allison 3K / 4K ( Gen 4 ) Heavy Duty Transmission
Connector Pigtail	CONN-101166

Specifications

Parameter Value
Number of Ways 20
Gender Plug/Male
Terminal Size 1.5mm
Min. Wire Gauge 20
Max. Wire Gauge 18

Applications

Allison: 29543022
St. Clair: 300278

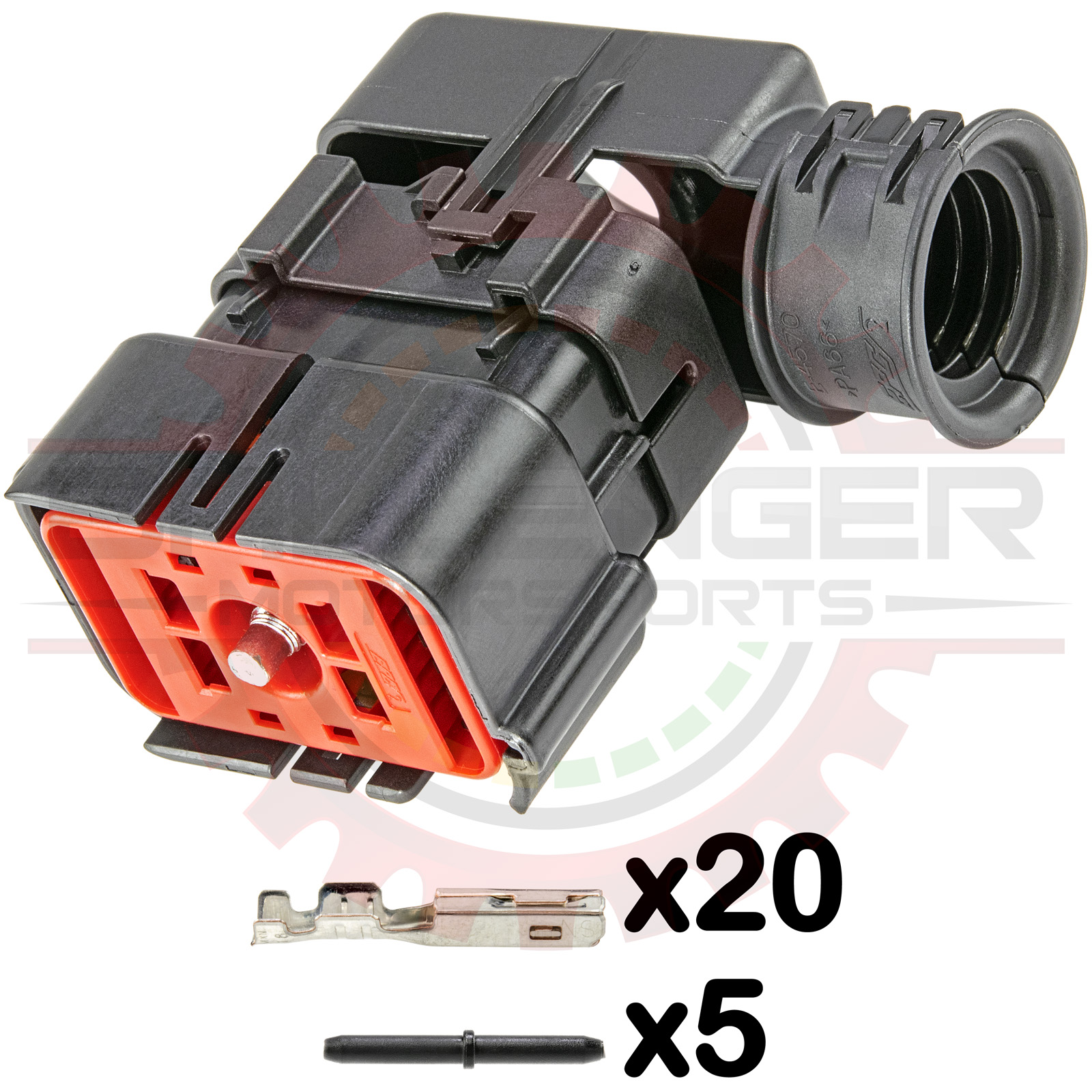

This product contains the following items:
	» 5 x GM Delphi / Packard - Metripack 150.2 Seal Plug for hand insertion (with tail) Part # CONN-56158
	» 1 x Corrugated / Convolute Capture Bracket for Allison 3k/4k Transmission Connector (bottom half) Part # CONN-100160
	» 1 x Backshell / Cover for Allison 3k/4k Transmission Connector (backshell to which 90 degree Convolute Capture Connects) Part # CONN-100161
	» 1 x 90 Degree Wire Dress / Convolute Capture for Allison 3k/4k Transmission Connector (top half) Part # CONN-100162
	» 1 x Allison 3k/4k Transmission Connector Part # CONN-100163
	» 20 x Gold Plate Molex Female Terminals for Allison 3k/4k Transmission Connector Part # CONN-100164
