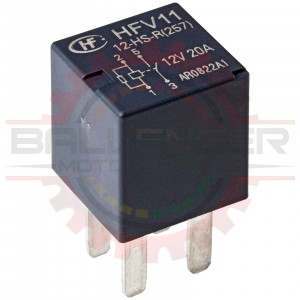

    Low Height Ultra 280 Relay, 20A Part # CONN-35030

    Low Height Ultra 280 Relay, 20A
    Pricing
    1 + $6.99
    Information
    Bmotorsports Part # CONN-35030
    Availability In Stock
    Shipping Weight 0.05 Lbs.
    Shipping Location VA   (Shipping Info)
    Ship Estimator Quantity:

    Description

    Low Height Ultra 280 Relay, 20A

    20 Amp capable relay in the smallest package size available with an "Ultra" footprint, takes up the same space as two circuit breakers or micro ATM fuses. Single pole, normally open. Can used in GEP, TE, BRIC relay stations and power distribution centers, this is a quality relay used in many factory OEM vehicles' fuse and relay centers.


    Associated & Mating Parts

    Relationship Part # Description
    Associated Components
    12 AWG (extra thinwall insulation only) Seals CONN-56058GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
    16-14 AWG Seals CONN-56058GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
    20-18 AWG Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
    22-20 AWG Seals CONN-11562Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
    4mm² (~11AWG) TE MCP 2.8 Terminals CONN-100330Tyco TE MCP 2.8 (280) Female Terminal, 4mm2 wire range, Tin plated
    16-14 AWG TE MCP 2.8 Terminals CONN-100329Tyco TE MCP 2.8 (280) Female Terminal, 1.25-2.5mm2 wire range, Tin plated
    20-18 AWG TE MCP 2.8 Terminals CONN-100328Tyco TE MCP 2.8 (280) Female Terminal, 0.5-1.25mm2 wire range, Tin plated
    8 Way TE MCP 2.8 Relay Base CONN-350208 Way TE 2.8 Mini Fuse & Relay Center Base
    8 Way Relay Raised Height Cap CONN-35022Fuse & Relay Center Cover, Raised Height
    Associated Kits
    Relay Base Connector Kit Only (no fuses, no relays) CONN-75579TE MCP 2.8 Fuse & Relay Block Connector Kit with Cap
    4 Fuse Block Connector Kit CONN-75580TE MCP 2.8 Fuse & Relay Block Connector Kit with Cap, 4 Fuses
    2 Fuse, 1 Ultra Relay Connector Kit CONN-75581TE MCP 2.8 Fuse & Relay Block Connector Kit with Cap, 2 Fuses, 1 Relay
    2 Ultra Relay Connector Kit CONN-75582TE MCP 2.8 Fuse & Relay Block Connector Kit with Cap, 2 Relays
    Associated Relays
    20A Ultra 280 Relay Low Height CONN-35030Low Height Ultra 280 Relay, 20A
    30A/15A Micro 280 Relay Standard Height CONN-35031Standard Height Micro 280 Relay, 30A/15A
    20A Ultra 280 Relay Standard Height CONN-35032Standard Height Ultra 280 Relay, 20A
    Associated Fuses
    7.5A Micro ATM Fuse, Brown CONN-1012877.5A Mini Fuse, Brown
    10A Micro ATM Fuse, Red CONN-100650
    20A Micro ATM Fuse, Yellow CONN-1006513 Way JPT Sensor Plug Connector, black
    Automatic Reset (Type 1) Circuit Breakers
    Circuit Breaker, Mini 5A CONN-35039
    Circuit Breaker, Mini 7.5A CONN-35040
    Circuit Breaker, Mini 10A CONN-35041
    Circuit Breaker, Mini 15A CONN-35042
    Circuit Breaker, Mini 20A CONN-35043
    Circuit Breaker, Mini 25A CONN-35044
    Circuit Breaker, Mini 30A CONN-35045

    Applications

    • racecar!
