GM Delphi / Packard - Gray Male O2 extender harness	Part # CONN-85567

Pricing
1 +	$17.99
5 +	$17.49
10 +	$16.99
25 +	$16.49
50 +	$15.99
100 +	$15.49
250 +	$14.49
Information
Bmotorsports Part #	CONN-85567
Availability	In Stock
Shipping Weight	0.2 Lbs.
Shipping Location	VA (Shipping Info)
Options
Length
	Quantity:

Description

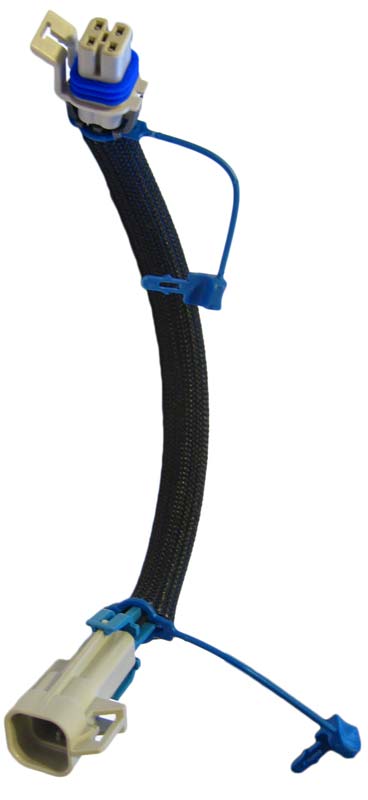

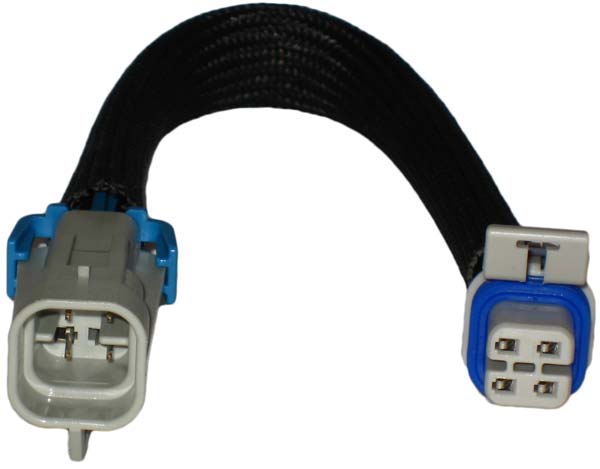

GM Delphi / Packard - Gray Male O2 extender harness

Specifications:

Teflon high temperature wire rated to 200 °C and MIL-W-16878E/4 Type E
High quality resin coated woven fiberglass rated to 1200 °F
Comes complete with TPA, CPA & Seals

TPA = Terminal Position Assurance, prevents terminals from backing out of connector

CPA = Connector Position Assurance, prevents connectors from coming loose from one another. This is a special CPA made for this type of application, remember to put the "loop" part of this cpa around the wires to prevent the CPA from being lost when you are disconnecting or connecting the connectors from one another.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-56256	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge )
Seals	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Connector Only	CONN-02080	GM Delphi / Packard - 4 way square metripack 150 male O2 connector assembly, gray ( connector and TPA )
Connector Kit	CONN-75647	GM Delphi / Packard - 4 way square metripack 150 male O2 connector Kit, gray
Connector Pigtail	CONN-85647	GM Delphi / Packard - 4 way square metripack 150 male O2 connector Pigtail, gray
Mating Parts
Terminals	CONN-56260	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seals	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Connector Only	CONN-02079	GM Delphi / Packard - 4 way metripack 150 female connector assembly, gray ( connector and TPA )
Connector Kit	CONN-75648	GM Delphi / Packard - 4 way metripack 150 female O2 connector Kit, gray
Connector Pigtail	CONN-85648	GM Delphi / Packard - 4 way metripack 150 female O2 connector Pigtail, gray
Connector Mating Pair Kit
Mating Pair Kit	CONN-200033	GM Delphi / Packard - Sealed 4-way metripack 150 square connector pair, gray
Extension
Extension	CONN-85567	GM Delphi / Packard - Gray Male O2 extender harness

Specifications

Parameter Value
Number of Ways 4
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 25 x Labor $0.25/minute Part # LABR-00001
	» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Female Terminal ( 20 - 16 gauge ) Part # CONN-56256
	» 4 x GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge ) Part # CONN-56260
	» 8 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 1 x GM Delphi / Packard - CPA for Metri-Pack ( Metripack ) 150 connectors Part # CONN-02059
	» 1 x 1/2 in. Diameter x 4ft. Black 3:1 Adhesive Lined Polyolefin Heat Shrink Tubing, 110 C Part # WIRE-56259
	» 4 x 18AWG Automotive Teflon Mil-Spec Wire Black Part # WIRE-00489s
	» 1 x Insultherm Hi-Temp braided sleeving - 3/8 inch Part # WIRE-63556
	» 1 x GM Delphi / Packard - 4 way metripack 150 female connector, gray Part # CONN-02075
	» 1 x TPA for GM Delphi / Packard - 4 way metripack 150 female connector Part # CONN-02076
	» 1 x TPA for 4 way square metripack 150 male connector Part # CONN-02078
	» 1 x GM Delphi / Packard - 4 way square metripack 150 male connector O2, gray Part # CONN-02077
